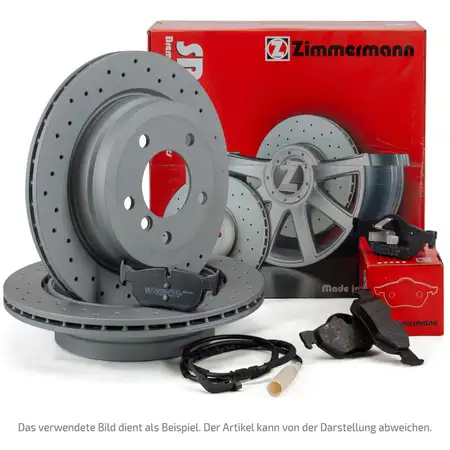

Zimmermann SPORT Brake Discs + Pads + Sensor for BMW X3 F25 X4 20-M40i 18d-35d (Rear)

Zimmermann SPORT Brake Discs + Pads + Sensor for BMW X3 F25 X4 20-M40i 18d-35d (Rear)

Item No.: PKT362W898
Manufacturer: ZIMMERMANN, CARIPAR
part number: 150.3495.52, 24561.175.1, GBK 427

Items included:

2x Brake Disc Piece - ZIMMERMANN 150.3495.52
1x Brake Pad Set, disc brake Set - ZIMMERMANN 24561.175.1
1x Warning Contact, brake pad wear Piece - CARIPAR GBK 427

item specifications

Component: Braking System
Quantity Unit: Piece
Brake Disc Type: internally vented
Brake Disc Type: Perforated
Fitting Position: Rear Axle
Outer Diameter [mm]: 330
Hole Arrangement/Number: 6/5
Surface: Coated
Version: Sport
Bolt Hole Circle Ø [mm]: 120
Height [mm]: 71
Brake Disc Thickness [mm]: 20
Minimum thickness [mm]: 18,4
Machining: High-carbon
Weight [kg]: 7,4
Centering Diameter [mm]: 75
Rim Hole Number: 5
Test Mark: ECE R90 APPROVED

reference numbers - for comparison

ATE - 24.0120-0234.1 / 24012002341
ATE - 24.0320-0234.1 / 24032002341
BMW - 3420 6 790 362 / 34206790362
BMW - 3420 6 868 936 / 34206868936
BMW - 3420 6 886 482 / 34206886482
BOSCH - 0 986 479 727 / 0986479727
BREMBO - 09.B569.11 / 09B56911
BREMBO - 09.B569.1S / 09B5691S
BREMBO - 09.B569.1X / 09B5691X
BREMBO - 59.E114.49 / 59E11449
ECORA - 4250238758822
FERODO - DDF2038C
HELLA PAGID - 8DD 355 119-541 / 8DD355119541
HELLA PAGID - 8DD 355 129-811 / 8DD355129811
JURID - 562793JC
RAICAM - RD01203
TEXTAR - 92256303
TRW - DF6352S
ZIMMERMANN - 150.3495.20 / 150349520
ZIMMERMANN - 150.3495.52 / 150349552
febi bilstein - 38577

item specifications

Component: Braking System
Quantity Unit: Set
WVA Number: 24561
Fitting Position: Rear Axle
Wear Warning Contact: prepared for wear warning indicator
Supplementary Article/Supplementary Info: Photo corresponds to scope of supply
Supplementary Article/Supplementary Info 2: with bolts/screws
Thickness [mm]: 18
Width [mm]: 106
Height 1 [mm]: 62
Height 2 [mm]: 56
Brake System: GIRLING
Test Mark: ECE R90 APPROVED

reference numbers - for comparison

ATE - 13046027602
ATE - 13047027602
ATE - 602760
ATE - LD2760
BLUE PRINT - ADB114211
BMW - 2 449 288 / 2449288
BMW - 2 449 289 / 2449289
BMW - 2 456 869 / 2456869
BMW - 2 456 870 / 2456870
BMW - 2 788 284 / 2788284
BMW - 34 20 6 877 648 / 34206877648
BMW - 34 20 6 879 857 / 34206879857
BMW - 34 21 2 449 288 / 34212449288
BMW - 34 21 2 456 869 / 34212456869
BMW - 34 21 2 456 870 / 34212456870
BMW - 34 21 2 788 284 / 34212788284
BMW - 34 21 6 788 284 / 34216788284
BMW - 34 21 6 796 741 / 34216796741
BMW - 34 21 6 798 193 / 34216798193
BMW - 34 21 6 862 202 / 34216862202
BMW - 34 21 6 870 558 / 34216870558
BMW - 34 21 6 870 565 / 34216870565
BMW - 34 21 6 885 451 / 34216885451
BMW - 34 21 6 885 452 / 34216885452
BMW - 34 21 6 892 641 / 34216892641
BMW - 34 21 8 847 062 / 34218847062
BMW - 6 788 284 / 6788284
BMW - 6 796 741 / 6796741
BMW - 6 798 193 / 6798193
BMW - 6 862 202 / 6862202
BMW - 6 870 558 / 6870558
BMW - 6 870 565 / 6870565
BMW - 6 892 641 / 6892641
BMW - 6877648
BMW - 6879857
BMW - 6885451
BMW - 6885452
BMW - 8847062
BOSCH - 0 986 494 432 / 0986494432
BOSCH - 0 986 TB3 135 / 0986TB3135
BOSCH - 0 986 TB3 139 / 0986TB3139
BOSCH - 0986495442
BOSCH - 0986AB1729
BREMBO - 07B31549
BREMBO - P06064
BREMBO - P06064
BREMBO - P06064N
BREMBO - P06064N
BREMBO - P06064X
BREMBO - P06064X
DELPHI - LP2162
DELPHI - LP216217B1
DELPHI - LP2162N18B1
DELPHI - LP2162ND19B1
DELPHI - LP5052EV
ECORA - 4250238753872
EUROREPAR - 1623063580
EUROREPAR - 1635141880
EUROREPAR - 1681216080
EUROREPAR - 1686274280
FERODO - FDB4376
FERODO - FDB4376D
FERODO - FDB4376G
FERODO - FDB4376S
FERODO - HQF4130C
FTE - 9005034
FTE - 9010666
FTE - BL2082A2
HELLA - 355 013-921 / 355013921
HELLA - 8DB355013921
HELLA - T1769
HELLA - T1769
HELLA PAGID - 355 013-921 / 355013921
HELLA PAGID - 355026241
HELLA PAGID - 355032301
HELLA PAGID - 8DB355013921
HELLA PAGID - 8DB355026241
HELLA PAGID - 8DB355032301
JP Group - 1463701610
JURID - 573352J
JURID - 573352JAS
JURID - 573352JC
JURID - 573352JD
JURID - 573352JTD
JURID - 574175J
MAGNETI MARELLI - 363700201769
MAGNETI MARELLI - T1769MM
MAGNETI MARELLI - T1769MM
METZGER - 1170784
METZGER - 1421.00 / 142100
MEYLE - 0252456118
MEYLE - 0252456118PD
OPTIMAL - 12548
OPTIMAL - BP12548
PAGID - T1769
PAGID - T1769
RAICAM - RA10110
TEXTAR - 2456101
TEXTAR - 2456101CP
TEXTAR - 2456103
TEXTAR - 2456181
TEXTAR - TX0841
TRW - GDB1840
TRW - GDB1840BTE
TRW - GDB1840DTE
TRW - TRH1473
VAICO - V201467
VAICO - V201467
VALEO - 302159
VALEO - 601385
VALEO - 604101
VALEO - 670385
ZIMMERMANN - 24561.175.1 / 245611751
ZIMMERMANN - 245611752
ZIMMERMANN - 245619751
febi bilstein - 116029
febi bilstein - 16839

item specifications

Component: Braking System
Application: Lining Wear
Quantity Unit: Piece
Fitting Position: Rear Axle

reference numbers - for comparison

ATE - 24.8190-0310.2 / 24819003102
ATE - 620310
BMW - 34 35 6 790 304 / 34356790304
BOSCH - 1 987 474 547 / 1987474547
BREMBO - A 00 455 / A00455
BREMBO - A 00 455 / A00455
Caripar - GBK 427 / GBK427
HELLA - 8DK 355 252-041 / 8DK355252041
HELLA PAGID - 8DK 355 252-041 / 8DK355252041
JURID - 581482
PAGID - P8616
PAGID - P8616
TEXTAR - 98046200
febi bilstein - 37727
