Is this part compatible with my vehicle?

ZIMMERMANN Brake Discs + Pads for FIAT Sedici 189_ SUZUKI SX4 EY GY (front)

Item No.: PKT362W859

ZIMMERMANN Brake Discs + Pads for FIAT Sedici 189_ SUZUKI SX4 EY GY (front)

Item No.: PKT362W859
ZIMMERMANN
Items included:
  • 2x Brake Disc Piece - ZIMMERMANN
  • 1x Brake Pad Set, disc brake Set - ZIMMERMANN

Free lightning shipping in DE from 90€
Prioritized ordering possible
Questions about the item?
E-Mail-Icon
E-Mail

Brake Disc
item specifications
  • Bolt Hole Circle Ø [mm]: 114
  • Outer Diameter [mm]: 280
  • Surface: Coated
  • Component: Braking System
  • Brake Disc Type: vented
  • Fitting Position: Front Axle
  • Test Mark: ECE R90 APPROVED
  • Centering Diameter [mm]: 62
  • Quantity Unit: Piece
  • Rim Hole Number: 5
  • Hole Arrangement/Number: 9/5
  • Minimum thickness [mm]: 20
  • Brake Disc Thickness [mm]: 22
  • Weight [kg]: 5,80
  • Height [mm]: 47
reference numbers - for comparison
  • ATE - 24.0122-0252.1 / 24012202521
  • BOSCH - 0 986 479 403 / 0986479403
  • BREMBO - 09.A296.14 / 09A29614
  • ECORA - 4250238757016
  • FERODO - DDF1620
  • FIAT - 71742850
  • FIAT - 71750162
  • HELLA - 8DD 355 113-631 / 8DD355113631
  • HERTH+BUSS JAKOPARTS - J3308023
  • HERTH+BUSS JAKOPARTS - J3308023
  • JURID - 562534JC
  • SUZUKI - 55311-79J01 / 5531179J01
  • SUZUKI - 55311-79J02 / 5531179J02
  • SUZUKI - 55311-79J03 / 5531179J03
  • SUZUKI - 55311-80J02 / 5531180J02
  • SUZUKI - 55311-80J03 / 5531180J03
  • TEXTAR - 92156600
  • TEXTAR - 92222100
  • TRW - DF4741
  • ZIMMERMANN - 230.2378.00 / 230237800
  • ZIMMERMANN - 230.2378.20 / 230237820
  • ZIMMERMANN - 230.2378.50 / 230237850
  • ZIMMERMANN - 230.2378.52 / 230237852
  • ZIMMERMANN - 4250238757016

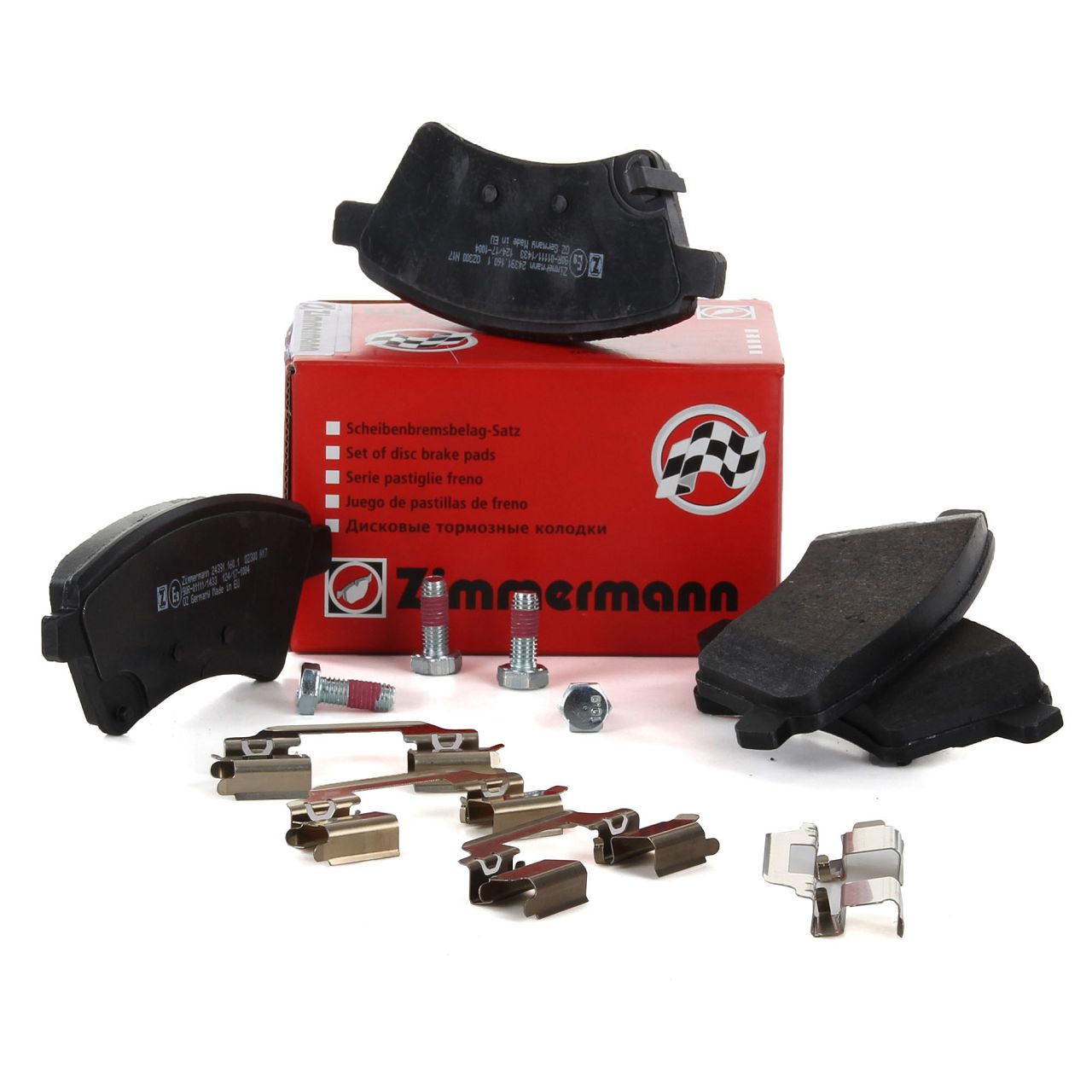

Brake Pad Set, disc brake
item specifications
  • Component: Braking System
  • Width [mm]: 132
  • Fitting Position: Front Axle
  • Number of wear indicators [per axle]: 1
  • Test Mark: ECE R90 APPROVED
  • WVA Number: 24391
  • Quantity Unit: Set
  • Supplementary Article/Supplementary Info: with sliding plate
  • Supplementary Article/Supplementary Info: Photo corresponds to scope of supply
  • Supplementary Article/Supplementary Info 2: with brake caliper screws
  • Thickness [mm]: 16
  • Height [mm]: 57
  • Brake System: LUCAS
  • Wear Warning Contact: with acoustic wear warning
  • Sliding plate internal dimension [mm]: 26,0
reference numbers - for comparison
  • ATE - 13.0460-2715.2 / 13046027152
  • BREMBO - P 23 105 / P23105
  • BREMBO - P 23 105 / P23105
  • ECORA - 4250238757658
  • FIAT - 71750033
  • HELLA - 8DB 355 012-511 / 8DB355012511
  • HERTH+BUSS JAKOPARTS - J3608031
  • HERTH+BUSS JAKOPARTS - J3608031
  • JURID - 573288J
  • RAICAM - 846.0 / 8460
  • SUZUKI - 5581079J00
  • TEXTAR - 2439101
  • TRW - GDB1673
  • ZIMMERMANN - 24391
  • ZIMMERMANN - 24391.160.1 / 243911601
  • ZIMMERMANN - 24391.160.2 / 243911602
  • ZIMMERMANN - 24392
  • ZIMMERMANN - 4250238757658
