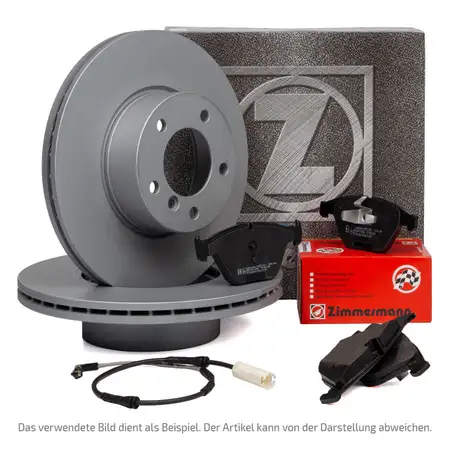

ZIMMERMANN Brake Discs + Pads + Wako for VW Multivan Transporter T5 Touareg 7L (Rear)

ZIMMERMANN Brake Discs + Pads + Wako for VW Multivan Transporter T5 Touareg 7L (Rear)

Item No.: PKT372W854
Manufacturer: ZIMMERMANN
part number: 600.3228.20, 24367.190.1

Items included:

2x Brake Disc Piece - ZIMMERMANN 600.3228.20
1x Brake Pad Set, disc brake Set - ZIMMERMANN 24367.190.1

item specifications

Component: Braking System
Quantity Unit: Piece
Brake Disc Type: Externally Vented
Fitting Position: Rear Axle
Outer Diameter [mm]: 314
Hole Arrangement/Number: 6/5
Surface: Coated
Bolt Hole Circle Ø [mm]: 120
Height [mm]: 76
Brake Disc Thickness [mm]: 22
Minimum thickness [mm]: 18
Centering Diameter [mm]: 76
Rim Hole Number: 5
Test Mark: ECE R90 APPROVED

reference numbers - for comparison

ATE - 24.0122-0215.1 / 24012202151
BOSCH - 0 986 479 094 / 0986479094
BREMBO - 09.A616.10 / 09A61610
DELPHI - BG3894
ECORA - 4250238744979
FERODO - DDF1698
HELLA PAGID - 8DD 355 109-801 / 8DD355109801
JURID - 562603JC
TEXTAR - 92121903
TRW - DF4718S
VAG - 7L6 615 601 C / 7L6615601C
VAG - 7L6 615 601 E / 7L6615601E
VAG - 7L6 615 601 G / 7L6615601G
ZIMMERMANN - 600.3228.00 / 600322800
ZIMMERMANN - 600.3228.20 / 600322820
ZIMMERMANN - 600.3228.52 / 600322852
febi bilstein - 28164

item specifications

Component: Braking System
Quantity Unit: Set
WVA Number: 24367
Fitting Position: Rear Axle
Wear Warning Contact: incl. wear warning contact
Supplementary Article/Supplementary Info: Photo corresponds to scope of supply
Thickness [mm]: 19
Width 1 [mm]: 141
Width 2 [mm]: 141
Height 1 [mm]: 54
Height 2 [mm]: 51
Brake System: ATE
Test Mark: ECE R90 APPROVED
Number of wear indicators [per axle]: 2

reference numbers - for comparison

ATE - 13.0460-7190.2 / 13046071902
ATE - 13.0460-7218.2 / 13046072182
ATE - 13.0460-7247.2 / 13046072472
ATE - 13.0470-7190.2 / 13047071902
BLUE PRINT - ADV184246
BOSCH - 0 986 494 219 / 0986494219
BOSCH - 0 986 494 309 / 0986494309
BOSCH - 0 986 495 115 / 0986495115
BOSCH - 0 986 TB2 968 / 0986TB2968
BREMBO - P 85 068 / P85068
BREMBO - P 85 068 / P85068
BREMBO - P 85 091 / P85091
BREMBO - P 85 091 / P85091
BREMBO - P85068N
BREMBO - P85068N
BREMBO - P85091N
BREMBO - P85091N
CHAMPION - 573301CH
DELPHI - LP2086
DELPHI - LP2086-18B1 / LP208618B1
DELPHI - LP2087
DELPHI - LP2087-18B1 / LP208718B1
DELPHI - LP2087LC
ECORA - 4250238754237
EUROREPAR - 1617275180
EUROREPAR - 1639378280
FERODO - FDB1460
FERODO - FSL1647
FERODO - FVR1647
FTE - 9005559
FTE - 9005568
FTE - 9010583
FTE - 9010640
FTE - BL1995A2
FTE - BL2056A2
HELLA - 8DB 355 012-441 / 8DB355012441
HELLA - 8DB 355 013-841 / 8DB355013841
HELLA - 8DB 355 025-761 / 8DB355025761
HELLA PAGID - 8DB 355 012-441 / 8DB355012441
HELLA PAGID - 8DB 355 013-841 / 8DB355013841
HELLA PAGID - 8DB 355 025-761 / 8DB355025761
JP Group - 1163706710
JURID - 573301J
JURID - 573303J
MAGNETI MARELLI - 323700017900
MAGNETI MARELLI - 363700485068
MAGNETI MARELLI - 363700485091
MAGNETI MARELLI - 363700485163
METZGER - 1170465
METZGER - 1170560
MEYLE - 025 243 6719/PD / 0252436719PD
MEYLE - 025 243 6719/W / 0252436719W
MEYLE - 025 243 6819 / 0252436819
OPTIMAL - 12389
OPTIMAL - 12499
OPTIMAL - BP-12389 / BP12389
OPTIMAL - BP-12499 / BP12499
PAGID - T1609
PAGID - T1609
PAGID - T1609N
PAGID - T1609N
PAGID - T1609N-54219N-00 / T1609N54219N00
PAGID - T1609N-54219N-00 / T1609N54219N00
PAGID - T1758
PAGID - T1758
PAGID - T1758N
PAGID - T1758N
PAGID - T1758N-54219N-00 / T1758N54219N00
PAGID - T1758N-54219N-00 / T1758N54219N00
PAGID - T2685
PAGID - T2685
PAGID - T4203
PAGID - T4203
RAICAM - RA.0908.0 / RA09080
RAICAM - RA.0908.2 / RA09082
TEXTAR - 2436701
TEXTAR - 2436704
TEXTAR - 2436801
TEXTAR - 2436803
TOPRAN - 112 170 / 112170
TRW - GDB1671
TRW - GDB1672
TRW - GDB1672DTE
VAICO - V10-0763 / V100763
VAICO - V10-0763 / V100763
VAICO - V10-0763-1 / V1007631
VAICO - V10-0763-1 / V1007631
VAICO - V10-8298 / V108298
VAICO - V10-8298 / V108298
VAICO - V10-8298-1 / V1082981
VAICO - V10-8298-1 / V1082981
VALEO - 301946
VALEO - 302332
VALEO - 598946
VALEO - 598967
VALEO - 670946
VALEO - 670967
VALEO - 872367
VALEO - 873367
VOLKSWAGEN - 7H8 698 451 / 7H8698451
VOLKSWAGEN - 7L6 698 451 / 7L6698451
VOLKSWAGEN - 7L6 698 451 C / 7L6698451C
ZIMMERMANN - 24367.190.1 / 243671901
ZIMMERMANN - 24367.990.1 / 243679901
ZIMMERMANN - 24368.190.2 / 243681902
febi bilstein - 16669
febi bilstein - 24367 - 19,0 / 24367190
febi bilstein - 24368 - 19,0 / 24368190
febi bilstein - D2028-9258 / D20289258
febi bilstein - D2028-9258 / D20289258

Name:

OTTO ZIMMERMANN GMBH

Website:

www.otto-zimmermann.de

E-Mail:

info@otto-zimmermann.de

Phone:

0049(0)7261 94514-0

Street, House no:

Am Leitzelbach 8

ZIP / City:

74889 Sinsheim - Duehren

Country:

Germany
