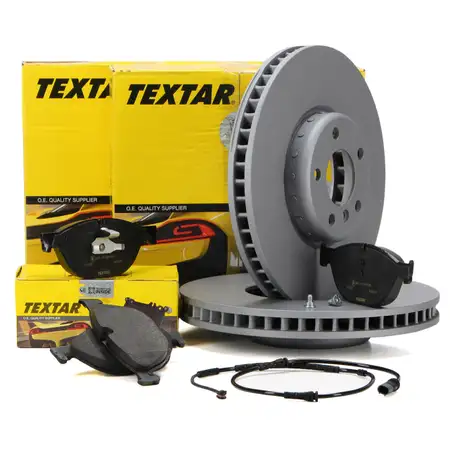

TEXTAR Brake Discs + Pads + Wako for BMW F10, F11, F07, F12, F13, F06, F01–04 (Front)

TEXTAR Brake Discs + Pads + Wako for BMW F10, F11, F07, F12, F13, F06, F01–04 (Front)

TEXTAR CARIPAR

Item No.: PKT652W439
Manufacturer: TEXTAR, CARIPAR
part number: 92253725, 92253825, 2504501, GBK 436

Items included:
  • 1x Brake Disc Piece - TEXTAR 92253725
  • 1x Brake Disc Piece - TEXTAR 92253825
  • 1x Brake Pad Set, disc brake Set - TEXTAR 2504501
  • 1x Warning Contact, brake pad wear Piece - CARIPAR GBK 436

questions about this product?
Share
Email-Icon
E-Mail
Trusted Badge Rating
item specifications
  • Component: Braking System
  • Quantity Unit: Piece
  • Brake Disc Type: internally vented
  • Brake Disc Type: two-piece brake disc
  • Fitting Position: Front Axle Left
  • Outer Diameter [mm]: 348
  • Hole Arrangement/Number: 05/06
  • Surface: Coated
  • Supplementary Article/Supplementary Info 2: without wheel hub
  • Supplementary Article/Supplementary Info 2: without wheel bearing
  • Supplementary Article/Supplementary Info 2: without wheel studs
  • Supplementary Article/Supplementary Info 2: with bolts/screws
  • directional:
  • Bolt Hole Circle Ø [mm]: 120
  • Height [mm]: 66,1
  • Brake Disc Thickness [mm]: 36
  • Minimum thickness [mm]: 34,4
  • Inner Diameter [mm]: 153,7
  • Machining: High-carbon
  • Weight [kg]: 12,4
  • Centering Diameter [mm]: 75
  • Wheel Bolt Bore Diameter [mm]: 16,5
  • Number of bolts/screws: 1
  • Packaging length [cm]: 35,8
  • Packaging width [cm]: 35,8
  • Packaging height [cm]: 8,5
reference numbers - for comparison
  • ATE - 24013601152
  • ATE - 436115
  • BLUE PRINT - ADB114371
  • BMW - 34 11 6 898 729 / 34116898729
  • BMW - 34116785669
  • BMW - 6785669
  • BMW - 6898729
  • BOSCH - 0986479E19
  • BOSCH - 0986479W19
  • BOSCH - 0986AB5962
  • BREMBO - 09C40513
  • DELPHI - BG9155BC
  • DELPHI - BG9155C
  • DELPHI - BG9155C18B1
  • ECORA - 4019722471445
  • EUROREPAR - 1636912980
  • FERODO - DDF2043LDC1D
  • FERODO - DDF2043LVC1
  • FTE - 9081211
  • FTE - BS7830HB
  • HELLA - 355119261
  • HELLA - 355120881
  • HELLA - 355120882
  • HELLA - 8DD355119261
  • HELLA - 8DD355120881
  • HELLA - 8DD355120882
  • HELLA PAGID - 355119261
  • HELLA PAGID - 355120881
  • HELLA PAGID - 355120882
  • HELLA PAGID - 8DD355119261
  • HELLA PAGID - 8DD355120881
  • HELLA PAGID - 8DD355120882
  • JURID - 563150JVC1
  • MEYLE - 3835210025PD
  • OPTIMAL - BS9330
  • OPTIMAL - BS9330HC
  • PAGID - 55537
  • PAGID - 55537PRO
  • PAGID - 65151
  • PAGID - 65151HC
  • TEXTAR - 4019722471445
  • TEXTAR - 92253703
  • TEXTAR - 92253725
  • TEXTAR - 98200253701
  • TOPRAN - 502238
  • TRW - DF6611S
  • VAICO - V2080089
  • VAICO - V2080089
  • ZIMMERMANN - 150347832
  • febi bilstein - 104949
item specifications
  • Component: Braking System
  • Quantity Unit: Piece
  • Brake Disc Type: internally vented
  • Brake Disc Type: two-piece brake disc
  • Fitting Position: Front Axle Right
  • Outer Diameter [mm]: 348
  • Hole Arrangement/Number: 05/06
  • Surface: Coated
  • Supplementary Article/Supplementary Info 2: without wheel hub
  • Supplementary Article/Supplementary Info 2: without wheel bearing
  • Supplementary Article/Supplementary Info 2: without wheel studs
  • Supplementary Article/Supplementary Info 2: with bolts/screws
  • directional:
  • Bolt Hole Circle Ø [mm]: 120
  • Height [mm]: 66,1
  • Brake Disc Thickness [mm]: 36
  • Minimum thickness [mm]: 34,4
  • Inner Diameter [mm]: 153,7
  • Machining: High-carbon
  • Weight [kg]: 12,4
  • Centering Diameter [mm]: 75
  • Wheel Bolt Bore Diameter [mm]: 16,5
  • Number of bolts/screws: 1
  • Packaging length [cm]: 35,8
  • Packaging width [cm]: 35,8
  • Packaging height [cm]: 8,5
reference numbers - for comparison
  • ATE - 24013601142
  • ATE - 436114
  • BLUE PRINT - ADB114372
  • BMW - 34 11 6 898 730 / 34116898730
  • BMW - 34116785670
  • BMW - 6785670
  • BMW - 6898730
  • BOSCH - 0986479E18
  • BOSCH - 0986479W20
  • BOSCH - 0986AB5963
  • BREMBO - 09C40613
  • DELPHI - BG9156BC
  • DELPHI - BG9156C
  • ECORA - 4019722471452
  • EUROREPAR - 1636913080
  • FERODO - DDF2043RDC1D
  • FERODO - DDF2043RVC1
  • FTE - 9081210
  • FTE - BS7831HB
  • HELLA - 355119271
  • HELLA - 355120891
  • HELLA - 355120892
  • HELLA - 8DD355119271
  • HELLA - 8DD355120891
  • HELLA - 8DD355120892
  • HELLA PAGID - 355119271
  • HELLA PAGID - 355120891
  • HELLA PAGID - 355120892
  • HELLA PAGID - 8DD355119271
  • HELLA PAGID - 8DD355120891
  • HELLA PAGID - 8DD355120892
  • JURID - 563151JVC1
  • MEYLE - 3835210024PD
  • OPTIMAL - BS9332
  • OPTIMAL - BS9332HC
  • PAGID - 55538
  • PAGID - 55538PRO
  • PAGID - 65152
  • PAGID - 65152HC
  • TEXTAR - 4019722471452
  • TEXTAR - 92253803
  • TEXTAR - 92253825
  • TEXTAR - 98200253801
  • TOPRAN - 502239
  • TRW - DF6612S
  • VAICO - V2080090
  • VAICO - V2080090
  • ZIMMERMANN - 150347932
  • febi bilstein - 104950
item specifications
  • Component: Braking System
  • Quantity Unit: Set
  • WVA Number: 25045
  • Fitting Position: Front Axle
  • Wear Warning Contact: prepared for wear warning indicator
  • Thickness [mm]: 19,3
  • Width 1 [mm]: 192,1
  • Width 2 [mm]: 193
  • Height [mm]: 79,4
  • Brake System: Teves
  • Weight [kg]: 2,652
  • Ordering only possible via the vehicle identification number:
  • Packaging length [cm]: 20,9
  • Packaging width [cm]: 13,4
  • Packaging height [cm]: 8,8
reference numbers - for comparison
  • ATE - 13046072672
  • ATE - 13047072672
  • ATE - 607267
  • ATE - LD7267
  • BLUE PRINT - ADB114233
  • BMW - 2449264
  • BMW - 2449268
  • BMW - 34 11 6 851 269 / 34116851269
  • BMW - 34112449264
  • BMW - 34112449268
  • BMW - 34116775318
  • BMW - 34116775322
  • BMW - 34116793021
  • BMW - 6775318
  • BMW - 6775322
  • BMW - 6793021
  • BMW - 6851269
  • BOSCH - 0986494429
  • BOSCH - 0986495439
  • BOSCH - 0986T14823
  • BOSCH - 0986TB3137
  • BOSCH - BE1409
  • BOSCH - BP1409
  • BREMBO - 07D43501
  • BREMBO - P06076
  • BREMBO - P06076
  • BREMBO - P06076N
  • BREMBO - P06076N
  • BREMBO - P06076X
  • BREMBO - P06076X
  • CHAMPION - 573292CH
  • DELPHI - LP2189
  • DELPHI - LP218914B1
  • DELPHI - LP2189N18B1
  • DELPHI - LP2189ND19B1
  • ECORA - 4019722406706
  • EUROREPAR - 1635141280
  • EUROREPAR - 1675989680
  • EUROREPAR - 1681238280
  • FERODO - FDB4285
  • FERODO - FDB4285D
  • FERODO - FDB4285S
  • FERODO - HQF2378C
  • FTE - 9002241
  • FTE - 9010667
  • FTE - BL2083A2
  • HELLA - 355015251
  • HELLA - 355026341
  • HELLA - 8DB355015251
  • HELLA - 8DB355026341
  • HELLA PAGID - 355015251
  • HELLA PAGID - 355026341
  • HELLA PAGID - 8DB355015251
  • HELLA PAGID - 8DB355026341
  • HERTH+BUSS JAKOPARTS - J36008105
  • HERTH+BUSS JAKOPARTS - J36008105
  • JP Group - 1463602810
  • JURID - 573292J
  • JURID - 573292JAS
  • JURID - 573292JC
  • JURID - 573292JD
  • JURID - 573292JTD
  • MAGNETI MARELLI - 363700201960
  • MAGNETI MARELLI - 363700406076
  • MAGNETI MARELLI - T1960MM
  • MAGNETI MARELLI - T1960MM
  • METZGER - 1170564
  • MEYLE - 0252504519
  • MEYLE - 0252504519PD
  • MEYLE - MBP0688
  • MEYLE - MBP0688PD
  • OPTIMAL - 12395
  • OPTIMAL - BP12395
  • PAGID - T1960
  • PAGID - T1960
  • PAGID - T1960N
  • PAGID - T1960N
  • TEXTAR - 2504501
  • TEXTAR - 2504501CP
  • TEXTAR - 2504503
  • TEXTAR - 2504581
  • TEXTAR - 8518D1409
  • TRW - GDB1838
  • TRW - GDB1838DTE
  • TRW - TXD1409
  • TRW - TXH1409
  • VAICO - V200962
  • VAICO - V200962
  • VALEO - 208279
  • VALEO - 302275
  • VALEO - 601136
  • VALEO - 604158
  • VALEO - 610358
  • VALEO - 670136
  • ZIMMERMANN - 250452001
  • febi bilstein - 16787
item specifications
  • Component: Braking System
  • Application: Lining Wear
  • Quantity Unit: Piece
  • Fitting Position: Front Axle
reference numbers - for comparison
  • ATE - 24.8190-0298.2 / 24819002982
  • ATE - 620298
  • BMW - 34 35 6 791 958 / 34356791958
  • BOSCH - 1 987 473 500 / 1987473500
  • BREMBO - A 00 422 / A00422
  • BREMBO - A 00 422 / A00422
  • Caripar - GBK 436 / GBK436
  • DELPHI - LZ0211
  • FERODO - FWI334
  • FTE - BZ1173W-SET / BZ1173WSET
  • HELLA - 8DK 355 251-631 / 8DK355251631
  • HELLA PAGID - 8DK 355 251-631 / 8DK355251631
  • JURID - 581475
  • PAGID - P8574
  • PAGID - P8574
  • TEXTAR - 98042400
  • febi bilstein - 36426
manufacturer model type power capacity constr. date kba limitations
