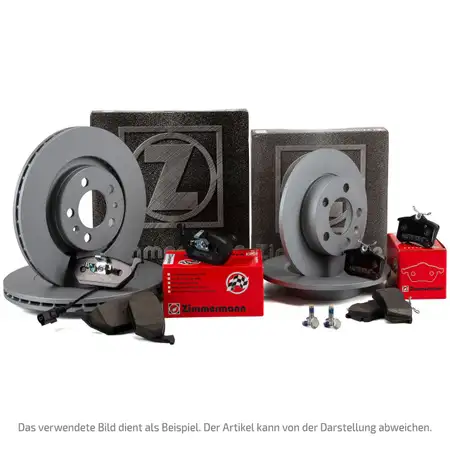

ZIMMERMANN Brake Discs + Pads + Wako for AUDI A3 8P, VW Golf 5, 6, 7 (front + rear)

ZIMMERMANN Brake Discs + Pads + Wako for AUDI A3 8P, VW Golf 5, 6, 7 (front + rear)

ZIMMERMANN

Item No.: PKT062W534
Manufacturer: ZIMMERMANN
part number: 600.3221.20, 23587.200.1, 600.3234.20, 20961.172.1

Items included:
  • 2x Brake Disc Piece - ZIMMERMANN 600.3221.20
  • 1x Brake Pad Set, disc brake Set - ZIMMERMANN 23587.200.1
  • 2x Brake Disc Piece - ZIMMERMANN 600.3234.20
  • 1x Brake Pad Set, disc brake Set - ZIMMERMANN 20961.172.1

questions about this product?
Share
Email-Icon
E-Mail
Trusted Badge Rating
item specifications
  • Component: Braking System
  • Quantity Unit: Piece
  • Brake Disc Type: internally vented
  • Fitting Position: Front Axle
  • Outer Diameter [mm]: 288
  • Hole Arrangement/Number: 10/5
  • Surface: Coated
  • Bolt Hole Circle Ø [mm]: 112
  • Height [mm]: 50
  • Brake Disc Thickness [mm]: 25
  • Minimum thickness [mm]: 22
  • Machining: High-carbon
  • Centering Diameter [mm]: 65
  • Rim Hole Number: 5
  • Test Mark: ECE R90 APPROVED
reference numbers - for comparison
  • ATE - 24.0125-0145.1 / 24012501451
  • ATE - 24.0325-0145.1 / 24032501451
  • BOSCH - 0 986 479 088 / 0986479088
  • BOSCH - 0 986 479 939 / 0986479939
  • BREMBO - 09.9145.11 / 09914511
  • BREMBO - 09.9145.14 / 09914514
  • BREMBO - 09.9145.1E / 0991451E
  • BREMBO - 09.9145.1X / 0991451X
  • BREMBO - 09.9145.75 / 09914575
  • BREMBO - 59.E114.33 / 59E11433
  • ECORA - 4250238744948
  • FERODO - DDF1218C
  • HELLA PAGID - 8DD 355 109-581 / 8DD355109581
  • HELLA PAGID - 8DD 355 128-001 / 8DD355128001
  • HERTH+BUSS JAKOPARTS - J3300807
  • HERTH+BUSS JAKOPARTS - J3300807
  • JURID - 562235JC
  • RAICAM - RD00915
  • TEXTAR - 92120805
  • TRW - DF4295
  • VAG - 1K0 615 301 K / 1K0615301K
  • VAG - 1K0 615 301 T / 1K0615301T
  • VAG - 1KD 615 301 / 1KD615301
  • VAG - 5C0 615 301 A / 5C0615301A
  • VAG - 5C0 615 301 D / 5C0615301D
  • VAG - 5Q0 615 301 H / 5Q0615301H
  • VAG - JZW 615 301 J / JZW615301J
  • VAG - L16D 615 301 A / L16D615301A
  • VAG - L16D 615 301 A / L16D615301A
  • VAG - L1KD 615 301 / L1KD615301
  • VAG - L1KD 615 301 / L1KD615301
  • ZIMMERMANN - 600.3221.20 / 600322120
  • ZIMMERMANN - 600.3221.52 / 600322152
  • ZIMMERMANN - 600.3221.53 / 600322153
item specifications
  • Component: Braking System
  • Quantity Unit: Set
  • WVA Number: 23587
  • Fitting Position: Front Axle
  • Wear Warning Contact: incl. wear warning contact
  • Supplementary Article/Supplementary Info: Photo corresponds to scope of supply
  • Thickness [mm]: 20
  • Width 1 [mm]: 155
  • Width 2 [mm]: 156
  • Height 1 [mm]: 66
  • Height 2 [mm]: 71
  • Brake System: ATE
  • Test Mark: ECE R90 APPROVED
  • Number of wear indicators [per axle]: 1
reference numbers - for comparison
  • ATE - 13.0460-7184.2 / 13046071842
  • ATE - 13.0470-7184.2 / 13047071842
  • ATE - 607184
  • AUDI - 1K0 698 151 / 1K0698151
  • AUDI - 1K0 698 151 E / 1K0698151E
  • AUDI - 3C0 698 151 C / 3C0698151C
  • AUDI - 3C0 698 151 D / 3C0698151D
  • AUDI - 3C0 698 151 J / 3C0698151J
  • AUDI - 3C0 698 151 K / 3C0698151K
  • AUDI - 5K0 698 151 / 5K0698151
  • BOSCH - 0 986 424 797 / 0986424797
  • BOSCH - 0 986 495 412 / 0986495412
  • BREMBO - P 61 076 / P61076
  • BREMBO - P 61 076 / P61076
  • BREMBO - P 61 076X / P61076X
  • BREMBO - P 61 076X / P61076X
  • BREMBO - P 85 075 / P85075
  • BREMBO - P 85 075 / P85075
  • BREMBO - P 85 075X / P85075X
  • BREMBO - P 85 075X / P85075X
  • BREMBO - P 85 146 / P85146
  • BREMBO - P 85 146 / P85146
  • BREMBO - P 85 146X / P85146X
  • BREMBO - P 85 146X / P85146X
  • ECORA - 4250238738862
  • FERODO - FDB1641
  • HELLA PAGID - 8DB 355 010-581 / 8DB355010581
  • HELLA PAGID - 8DB 355 023-161 / 8DB355023161
  • HERTH+BUSS JAKOPARTS - J3600821
  • HERTH+BUSS JAKOPARTS - J3600821
  • JURID - 573128J
  • JURID - 573128JC
  • RAICAM - RA.0817.0 / RA08170
  • RAICAM - RA.0817.1 / RA08171
  • RAICAM - RA.0919.1 / RA09191
  • TEXTAR - 2358701
  • TEXTAR - 2469602
  • TRW - GDB1550
  • TRW - GDB1550DTE
  • VAG - 1K0 698 151 / 1K0698151
  • VAG - 1K0 698 151 C / 1K0698151C
  • VAG - 1K0 698 151 E / 1K0698151E
  • VAG - 3C0 698 151 / 3C0698151
  • VAG - 3C0 698 151 A / 3C0698151A
  • VAG - 3C0 698 151 B / 3C0698151B
  • VAG - 3C0 698 151 C / 3C0698151C
  • VAG - 3C0 698 151 D / 3C0698151D
  • VAG - 3C0 698 151 J / 3C0698151J
  • VAG - 3C0 698 151 K / 3C0698151K
  • VAG - 3C0 698 151 P / 3C0698151P
  • VAG - 5K0 698 151 / 5K0698151
  • VAG - 5K0 698 151 A / 5K0698151A
  • VAG - 5K0 698 151 B / 5K0698151B
  • VAG - JZW 698 151 B / JZW698151B
  • VOLKSWAGEN - 1K0 698 151 C / 1K0698151C
  • VOLKSWAGEN - 1K0 698 151 E / 1K0698151E
  • VOLKSWAGEN - 1KD 698 151 G / 1KD698151G
  • VOLKSWAGEN - 3C0 698 151 / 3C0698151
  • VOLKSWAGEN - 3C0 698 151 A / 3C0698151A
  • VOLKSWAGEN - 3C0 698 151 B / 3C0698151B
  • VOLKSWAGEN - 3C0 698 151 C / 3C0698151C
  • VOLKSWAGEN - 3C0 698 151 D / 3C0698151D
  • VOLKSWAGEN - 3C0 698 151 J / 3C0698151J
  • VOLKSWAGEN - 3C0 698 151 K / 3C0698151K
  • VOLKSWAGEN - 5K0 698 151 / 5K0698151
  • VOLKSWAGEN - 8J0 698 151 P / 8J0698151P
  • VOLKSWAGEN - JZW 698 151 B / JZW698151B
  • ZIMMERMANN - 23587.200.1 / 235872001
  • ZIMMERMANN - 23587.900.1 / 235879001
  • ZIMMERMANN - 23588
  • ZIMMERMANN - 23589
  • ZIMMERMANN - 24696
  • ZIMMERMANN - D1107-8212 / D11078212
  • ZIMMERMANN - D1107-8212 / D11078212
  • ZIMMERMANN - D1319-8212 / D13198212
  • ZIMMERMANN - D1319-8212 / D13198212
item specifications
  • Component: Braking System
  • Quantity Unit: Piece
  • Brake Disc Type: solid
  • Fitting Position: Rear Axle
  • Outer Diameter [mm]: 253
  • Hole Arrangement/Number: 10/5
  • Surface: Coated
  • Bolt Hole Circle Ø [mm]: 112
  • Height [mm]: 51
  • Brake Disc Thickness [mm]: 10
  • Minimum thickness [mm]: 8
  • Centering Diameter [mm]: 65
  • Rim Hole Number: 5
  • Test Mark: ECE R90 APPROVED
reference numbers - for comparison
  • ATE - 24.0110-0277.1 / 24011002771
  • ATE - 24.0310-0277.1 / 24031002771
  • BOSCH - 0 986 479 099 / 0986479099
  • BREMBO - 08.9502.11 / 08950211
  • BREMBO - 08.9502.1X / 0895021X
  • BREMBO - 08.9502.75 / 08950275
  • BREMBO - 59.E114.09 / 59E11409
  • ECORA - 4250238744917
  • FERODO - DDF1224C
  • HELLA PAGID - 8DD 355 109-601 / 8DD355109601
  • HERTH+BUSS JAKOPARTS - J3310804
  • HERTH+BUSS JAKOPARTS - J3310804
  • JURID - 562236JC
  • RAICAM - RD00916
  • TEXTAR - 92120903
  • TRW - DF4276
  • VAG - 1K0 615 601 AB / 1K0615601AB
  • VAG - 1K0 615 601 K / 1K0615601K
  • VAG - 5C0 615 601 / 5C0615601
  • VAG - 5C0 615 601 A / 5C0615601A
  • VAG - 5Q0 615 601 F / 5Q0615601F
  • VAG - JZW 615 601 K / JZW615601K
  • VAG - JZW 698 601 AA / JZW698601AA
  • ZIMMERMANN - 600.3234.20 / 600323420
  • ZIMMERMANN - 600.3234.52 / 600323452
item specifications
  • Component: Braking System
  • Quantity Unit: Set
  • WVA Number: 20961
  • Fitting Position: Rear Axle
  • Supplementary Article/Supplementary Info: Photo corresponds to scope of supply
  • Supplementary Article/Supplementary Info 2: with bolts/screws
  • Thickness [mm]: 17
  • Width [mm]: 87
  • Height [mm]: 53
  • Brake System: LUCAS-GIRLING
  • Test Mark: ECE R90 APPROVED
reference numbers - for comparison
  • ATE - 13.0460-2820.2 / 13046028202
  • ATE - 13.0470-2820.2 / 13047028202
  • BOSCH - 0 986 494 596 / 0986494596
  • BREMBO - P 85 020 / P85020
  • BREMBO - P 85 020 / P85020
  • BREMBO - P 85 020X / P85020X
  • BREMBO - P 85 020X / P85020X
  • CHERY - B11-BJ3502080 / B11BJ3502080
  • CHERY - B11-BJ3502080 / B11BJ3502080
  • CHERY - B116BH3502080
  • CHERY - B116BH3502080
  • CHRYSLER - B116BH3502080
  • CHRYSLER - B116BH3502080
  • CITROEN - 4254 67 / 425467
  • CITROEN / PEUGEOT - 16 070 832 80 / 1607083280
  • CITROEN / PEUGEOT - 16 114 563 80 / 1611456380
  • CITROEN / PEUGEOT - 16 168 726 80 / 1616872680
  • CITROEN / PEUGEOT - 16 231 805 80 / 1623180580
  • CITROEN / PEUGEOT - 4252.23 / 425223
  • CITROEN / PEUGEOT - 4252.32 / 425232
  • CITROEN / PEUGEOT - 4252.33 / 425233
  • CITROEN / PEUGEOT - 4252.41 / 425241
  • CITROEN / PEUGEOT - 4254.20 / 425420
  • CITROEN / PEUGEOT - 4254.67 / 425467
  • CITROEN / PEUGEOT - 4264.67 / 426467
  • CITROEN / PEUGEOT - E172204
  • CITROEN / PEUGEOT - E172204
  • ECORA - 4250238730507
  • FERODO - FDB1083
  • FERODO - FDB1788
  • FIAT - 9404252328
  • FIAT - 9467648988
  • FORD - 1 001 096 / 1001096
  • FORD - 1 027 640 / 1027640
  • HELLA PAGID - 8DB 355 018-111 / 8DB355018111
  • HERTH+BUSS JAKOPARTS - J3610807
  • HERTH+BUSS JAKOPARTS - J3610807
  • JURID - 571906J
  • JURID - 571906JC
  • JURID - 573032J
  • JURID - 573032JC
  • RAICAM - RA.0348.0 / RA03480
  • TEXTAR - 2355402
  • TRW - GDB1330
  • TRW - GDB1330DTE
  • VAG - 1E0 698 451 / 1E0698451
  • VAG - 1H0 698 451 / 1H0698451
  • VAG - 1H0 698 451 A / 1H0698451A
  • VAG - 1H0 698 451 D / 1H0698451D
  • VAG - 1H0 698 451 G / 1H0698451G
  • VAG - 1H0 698 451 H / 1H0698451H
  • VAG - 1J0 698 451 / 1J0698451
  • VAG - 1J0 698 451 B / 1J0698451B
  • VAG - 1J0 698 451 D / 1J0698451D
  • VAG - 1J0 698 451 E / 1J0698451E
  • VAG - 1J0 698 451 F / 1J0698451F
  • VAG - 1J0 698 451 G / 1J0698451G
  • VAG - 1J0 698 451 H / 1J0698451H
  • VAG - 1J0 698 451 J / 1J0698451J
  • VAG - 1J0 698 451 K / 1J0698451K
  • VAG - 1J0 698 451 L / 1J0698451L
  • VAG - 1J0 698 451 M / 1J0698451M
  • VAG - 1J0 698 451 N / 1J0698451N
  • VAG - 1J0 698 451 P / 1J0698451P
  • VAG - 1J0 698 451 S / 1J0698451S
  • VAG - 1K0 698 451 A / 1K0698451A
  • VAG - 1K0 698 451 C / 1K0698451C
  • VAG - 1K0 698 451 J / 1K0698451J
  • VAG - 2Q0 698 451 / 2Q0698451
  • VAG - 2Q0 698 451 B / 2Q0698451B
  • VAG - 4B0 698 451 / 4B0698451
  • VAG - 4B0 698 451 B / 4B0698451B
  • VAG - 4B0 698 451 E / 4B0698451E
  • VAG - 4D0 698 451 C / 4D0698451C
  • VAG - 4D0 698 647 / 4D0698647
  • VAG - 5C0 698 451 / 5C0698451
  • VAG - 5C0 698 451 A / 5C0698451A
  • VAG - 5C0 698 451 D / 5C0698451D
  • VAG - 5K0 698 451 B / 5K0698451B
  • VAG - 5K0 698 451 E / 5K0698451E
  • VAG - 5Q0 698 451 E / 5Q0698451E
  • VAG - 6C0 698 451 A / 6C0698451A
  • VAG - 6X0 698 451 / 6X0698451
  • VAG - 6X0 698 451 A / 6X0698451A
  • VAG - 7M0 698 451 / 7M0698451
  • VAG - 8E0 698 451 A / 8E0698451A
  • VAG - 8E0 698 451 B / 8E0698451B
  • VAG - 8E0 698 451 D / 8E0698451D
  • VAG - 8E0 698 451 K / 8E0698451K
  • VOLKSWAGEN - 5Q0 698 451 E / 5Q0698451E
  • ZIMMERMANN - 20961.172.1 / 209611721
  • ZIMMERMANN - 20961.972.1 / 209619721
  • ZIMMERMANN - 23554
  • ZIMMERMANN - D1017-7920 / D10177920
  • ZIMMERMANN - D1017-7920 / D10177920
  • ZIMMERMANN - D1112-7773 / D11127773
  • ZIMMERMANN - D1112-7773 / D11127773
  • ZIMMERMANN - D340-7335 / D3407335
  • ZIMMERMANN - D340-7335 / D3407335
manufacturer model type power capacity constr. date kba limitations
Customers also bought
BOSCH A863S + A282H Windshield Wipers for VW Golf 7, Polo AW1, BZ1, and SEAT Ateca (Front and Rear)
BOSCH A863S + A282H Windshield Wipers for VW Golf 7, Polo AW1, BZ1, and SEAT Ateca (Fro...

28.95 EUR



incl. VAT, excl. shipping costs

add to cart
MANN Filter Set + 5L LIQUI MOLY 5W30 Engine Oil for VW Golf 7, Passat B8, A3 8V, Q2 1.2/1.4 TSI
MANN Filter Set + 5L LIQUI MOLY 5W30 Engine Oil for VW Golf 7, Passat B8, A3 8V, Q2 1.2...

97.95 EUR



incl. VAT, excl. shipping costs

add to cart
2x AIC cover plate for VW Golf 7, Audi A3 8V, SEAT Leon 5F, Skoda Octavia 3 (front)
2x AIC cover plate for VW Golf 7, Audi A3 8V, SEAT Leon 5F, Skoda Octavia 3 (front)

30.95 EUR



incl. VAT, excl. shipping costs

add to cart
HENGST E85KPD146 Fuel Filter for VW Passat B6, Tiguan, Touran 1.6/1.9/2.0 TDI 3C0127434
HENGST E85KPD146 Fuel Filter for VW Passat B6, Tiguan, Touran 1.6/1.9/2.0 TDI 3C0127434

17.95 EUR



incl. VAT, excl. shipping costs

add to cart
questions about this product?
Share
Email-Icon
E-Mail
Trusted Badge Rating
Your benefits
Various payment options
Extensive assortment
Selected spare parts packages
Full assortments of Zimmermann, Hengst,
Herth & Buss, Textar
High quality goods
Very fast shipping
We send your order securely and carefully packaged by DHL, UPS or a forwarding agent. Here too, we rely on the market leaders and attach particular importance to service quality and reliability.
