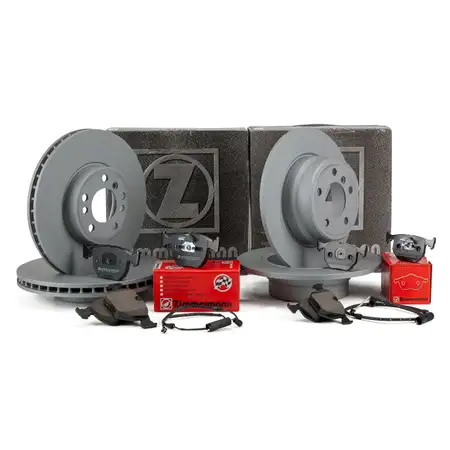

ZIMMERMANN Brake Discs + Pads + Wako for BMW X5 E53 3.0i, 4.4i, 3.0d (front + rear)

ZIMMERMANN Brake Discs + Pads + Wako for BMW X5 E53 3.0i, 4.4i, 3.0d (front + rear)

ZIMMERMANN febi bilstein CARIPAR

Item No.: PKT062W198
Manufacturer: ZIMMERMANN, febi bilstein, CARIPAR
part number: 150.1298.20, 21486.190.1, 150.1299.20, 21487.170.1, GBK 483, 18560

Items included:
  • 2x Brake Disc Piece - ZIMMERMANN 150.1298.20
  • 1x Brake Pad Set, disc brake Set - ZIMMERMANN 21486.190.1
  • 2x Brake Disc Piece - ZIMMERMANN 150.1299.20
  • 1x Brake Pad Set, disc brake Set - ZIMMERMANN 21487.170.1
  • 1x Warning Contact, brake pad wear Piece - CARIPAR GBK 483
  • 1x Warning Contact, brake pad wear Piece - febi bilstein 18560

Questions about the item?
Chat
Email-Icon
E-Mail
Trusted Badge Rating
item specifications
  • Component: Braking System
  • Quantity Unit: Piece
  • Brake Disc Type: internally vented
  • Fitting Position: Front Axle
  • Outer Diameter [mm]: 332
  • Hole Arrangement/Number: 6/5
  • Surface: Coated
  • Bolt Hole Circle Ø [mm]: 120
  • Height [mm]: 62
  • Brake Disc Thickness [mm]: 30
  • Minimum thickness [mm]: 28,4
  • Machining: High-carbon
  • Centering Diameter [mm]: 75
  • Rim Hole Number: 5
  • Test Mark: ECE R90 APPROVED
reference numbers - for comparison
  • ATE - 24.0130-0109.1 / 24013001091
  • ATE - 24.0330-0109.1 / 24033001091
  • BMW - 34 11 6 859 679 / 34116859679
  • BMW - 3411 6 750 713 / 34116750713
  • BMW - 3411 6 756 045 / 34116756045
  • BMW - 3411 6 765 457 / 34116765457
  • BMW - 3411 6 766 036 / 34116766036
  • BMW - 3411 6 794 300 / 34116794300
  • BMW - 3411 6 794 304 / 34116794304
  • BOSCH - 0 986 478 974 / 0986478974
  • BREMBO - 09.C896.11 / 09C89611
  • ECORA - 4250238718512
  • FERODO - DDF1256C-1 / DDF1256C1
  • HELLA PAGID - 8DD 355 127-631 / 8DD355127631
  • JURID - 562134JC-1 / 562134JC1
  • RAICAM - RD00072
  • TEXTAR - 92107205
  • TRW - DF4187S
  • ZIMMERMANN - 150.1298.20 / 150129820
  • ZIMMERMANN - 150.1298.52 / 150129852
  • ZIMMERMANN - 150.1298.53 / 150129853
item specifications
  • Component: Braking System
  • Quantity Unit: Set
  • WVA Number: 21486
  • Fitting Position: Front Axle
  • Wear Warning Contact: prepared for wear warning indicator
  • Supplementary Article/Supplementary Info: Photo corresponds to scope of supply
  • Thickness [mm]: 19
  • Width [mm]: 156
  • Height [mm]: 73
  • Brake System: ATE
  • Test Mark: ECE R90 APPROVED
reference numbers - for comparison
  • ATE - 13.0460-7078.2 / 13046070782
  • BMW - 3411 1 163 227 / 34111163227
  • BMW - 3411 1 163 307 / 34111163307
  • BMW - 3411 1 165 227 / 34111165227
  • BMW - 3411 2 157 589 / 34112157589
  • BMW - 3411 2 180 419 / 34112180419
  • BMW - 3411 2 229 031 / 34112229031
  • BMW - 3411 2 282 090 / 34112282090
  • BMW - 3411 2 282 165 / 34112282165
  • BMW - 3411 2 282 166 / 34112282166
  • BMW - 3411 2 282 556 / 34112282556
  • BMW - 3411 2 357 230 / 34112357230
  • BMW - 3411 3 427 303 / 34113427303
  • BMW - 3411 3 427 503 / 34113427503
  • BMW - 3411 6 761 252 / 34116761252
  • BOSCH - 0 986 494 028 / 0986494028
  • BREMBO - P 06 021 / P06021
  • BREMBO - P 06 021 / P06021
  • ECORA - 4250238734925
  • FERODO - FDB997
  • HELLA PAGID - 8DB 355 008-281 / 8DB355008281
  • JURID - 571873J
  • RAICAM - RA.0788.0 / RA07880
  • TEXTAR - 2148602
  • TRW - GDB1261
  • ZIMMERMANN - 21486.190.1 / 214861901
  • ZIMMERMANN - 21486.190.2 / 214861902
  • ZIMMERMANN - 21486.990.1 / 214869901
  • ZIMMERMANN - D681-7560 / D6817560
  • ZIMMERMANN - D681-7560 / D6817560
item specifications
  • Component: Braking System
  • Quantity Unit: Piece
  • Brake Disc Type: solid
  • Fitting Position: Rear Axle
  • Outer Diameter [mm]: 324
  • Hole Arrangement/Number: 6/5
  • Surface: Coated
  • Bolt Hole Circle Ø [mm]: 120
  • Height [mm]: 80
  • Brake Disc Thickness [mm]: 12
  • Minimum thickness [mm]: 10,4
  • Machining: High-carbon
  • Centering Diameter [mm]: 75
  • Rim Hole Number: 5
  • Test Mark: ECE R90 APPROVED
reference numbers - for comparison
  • ATE - 24.0112-0152.1 / 24011201521
  • ATE - 24.0312-0152.1 / 24031201521
  • BMW - 34 21 6 859 678 / 34216859678
  • BMW - 3421 1 164 911 / 34211164911
  • BMW - 3421 6 765 458 / 34216765458
  • BMW - 3421 6 794 299 / 34216794299
  • BOSCH - 0 986 479 167 / 0986479167
  • BREMBO - 08.7019.81 / 08701981
  • ECORA - 4250238718529
  • FERODO - DDF1255C-1 / DDF1255C1
  • HELLA PAGID - 8DD 355 107-771 / 8DD355107771
  • HELLA PAGID - 8DD 355 127-651 / 8DD355127651
  • JURID - 562135JC
  • RAICAM - RD00073
  • TEXTAR - 92107403
  • TRW - DF4189
  • ZIMMERMANN - 150.1299.20 / 150129920
  • ZIMMERMANN - 150.1299.52 / 150129952
item specifications
  • Component: Braking System
  • Quantity Unit: Set
  • WVA Number: 21487
  • Fitting Position: Rear Axle
  • Wear Warning Contact: prepared for wear warning indicator
  • Supplementary Article/Supplementary Info: Photo corresponds to scope of supply
  • Thickness [mm]: 17
  • Width [mm]: 123
  • Height [mm]: 59
  • Brake System: ATE
  • Test Mark: ECE R90 APPROVED
reference numbers - for comparison
  • ATE - 13.0460-7079.2 / 13046070792
  • ATE - 13.0470-7079.2 / 13047070792
  • BMW - 3411 2 180 421 / 34112180421
  • BMW - 3421 1 160 685 / 34211160685
  • BMW - 3421 1 163 324 / 34211163324
  • BMW - 3421 1 163 326 / 34211163326
  • BMW - 3421 1 163 833 / 34211163833
  • BMW - 3421 1 164 581 / 34211164581
  • BMW - 3421 1 164 582 / 34211164582
  • BMW - 3421 2 157 576 / 34212157576
  • BMW - 3421 2 357 231 / 34212357231
  • BMW - 3421 3 403 241 / 34213403241
  • BMW - 3421 6 750 160 / 34216750160
  • BMW - 3421 6 752 632 / 34216752632
  • BMW - 3421 6 761 240 / 34216761240
  • BMW - 3421 6 761 247 / 34216761247
  • BMW - 3421 6 761 250 / 34216761250
  • BMW - 3421 6 761 251 / 34216761251
  • BMW - 3421 6 790 071 / 34216790071
  • BOSCH - 0 986 494 006 / 0986494006
  • BREMBO - P 06 044 / P06044
  • BREMBO - P 06 044 / P06044
  • ECORA - 4250238734949
  • FERODO - FDB1483
  • HELLA PAGID - 8DB 355 006-691 / 8DB355006691
  • HELLA PAGID - 8DB 355 008-091 / 8DB355008091
  • JURID - 571918J
  • LAND ROVER - SFP000120
  • LAND ROVER - SFP500210
  • LAND ROVER - SFP500230
  • RAICAM - RA.0554.1 / RA05541
  • TEXTAR - 2148701
  • TEXTAR - 2148703
  • TRW - GDB1527
  • TRW - GDB1530
  • TRW - GDB1530DTE
  • ZIMMERMANN - 21282.170.1 / 212821701
  • ZIMMERMANN - 21487.170.1 / 214871701
  • ZIMMERMANN - 21487.170.2 / 214871702
  • ZIMMERMANN - 21487.170.9 / 214871709
  • ZIMMERMANN - 21487.970.1 / 214879701
item specifications
  • Component: Braking System
  • Application: Lining Wear
  • Quantity Unit: Piece
  • Fitting Position: Front Axle
reference numbers - for comparison
  • BMW - 34 35 1 165 579 / 34351165579
  • Caripar - GBK 483 / GBK483
  • ECORA - 4255701511317
item specifications
  • Component: Braking System
  • Application: Lining Wear
  • Quantity Unit: Piece
  • Brake Type: Disc Brake
  • Fitting Position: Rear Axle Left
  • Fitting Position: Rear Axle Right
  • Length [mm]: 715
reference numbers - for comparison
  • 3RG - 94109
  • AIC - 55241
  • ATE - 24.8190-0226.2 / 24819002262
  • BIRTH - 50781
  • BMW - 34 35 1 165 580 / 34351165580
  • BOSCH - 1 987 474 946 / 1987474946
  • BREMBO - A 00 244 / A00244
  • BREMBO - A 00 244 / A00244
  • CHAMPION - FWI265
  • DELPHI - LZ0157
  • ECORA - 4027816185604
  • FERODO - FWI265
  • FTE - 9410059
  • HELLA - 8DK 355 250-451 / 8DK355250451
  • HELLA PAGID - 8DK 355 250-451 / 8DK355250451
  • JP Group - 1497301900
  • JURID - FWI265
  • MAGNETI MARELLI - 359003100460
  • MAGNETI MARELLI - 363700168043
  • MAGNETI MARELLI - 363700400244
  • MEAT & DORIA - 212008
  • METZGER - 1190052
  • METZGER - WK 17-052 / WK17052
  • MEYLE - 300 343 5120 / 3003435120
  • OPTIMAL - WKT-50420 K / WKT50420K
  • PAGID - P8043
  • PAGID - P8043
  • PAGID - P8043N
  • PAGID - P8043N
  • PAGID - T1117N-50323N-00 / T1117N50323N00
  • PAGID - T1117N-50323N-00 / T1117N50323N00
  • QUICK BRAKE - WS 0200 A / WS0200A
  • QUICK BRAKE - WS 0200 B / WS0200B
  • RAICAM - KS0111
  • TEXTAR - 98026800
  • TEXTAR - 98026810
  • TOPRAN - 501 403 / 501403
  • TRUCKTEC AUTOMOTIVE - 08.34.086 / 0834086
  • TRW - GIC176
  • TRW - GIC176CN
  • VEMO - V20-72-5115 / V20725115
  • VEMO - V20-72-5115 / V20725115
  • febi bilstein - 18560
  • febi bilstein - 4027816185604
