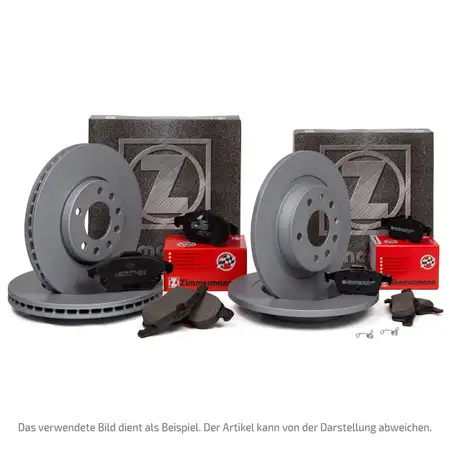

ZIMMERMANN Brake Discs + Pads for VOLVO S60 1, S80 1, V70 2, 15"

ZIMMERMANN Brake Discs + Pads for VOLVO S60 1, S80 1, V70 2, 15"

ZIMMERMANN Brake Discs + Pads for VOLVO S60 1, S80 1, V70 2, 15"

ZIMMERMANN Brake Discs + Pads for VOLVO S60 1, S80 1, V70 2, 15"

ZIMMERMANN Brake Discs + Pads for VOLVO S60 1, S80 1, V70 2, 15"

ZIMMERMANN Brake Discs + Pads for VOLVO S60 1, S80 1, V70 2, 15"

ZIMMERMANN Brake Discs + Pads for VOLVO S60 1, S80 1, V70 2, 15"

ZIMMERMANN Brake Discs + Pads for VOLVO S60 1, S80 1, V70 2, 15"

ZIMMERMANN Brake Discs + Pads for VOLVO S60 1, S80 1, V70 2, 15"

ZIMMERMANN Brake Discs + Pads for VOLVO S60 1, S80 1, V70 2, 15"

ZIMMERMANN

Item No.: PKT062W321
Manufacturer: ZIMMERMANN
part number: 610.3701.20, 23073.190.1, 610.3703.20, 23076.175.1

Items included:

2x Brake Disc Piece - ZIMMERMANN
1x Brake Pad Set, disc brake Set - ZIMMERMANN
2x Brake Disc Piece - ZIMMERMANN
1x Brake Pad Set, disc brake Set - ZIMMERMANN

item specifications

Bolt Hole Circle Ø [mm]: 108
Outer Diameter [mm]: 286
Surface: Coated
Component: Braking System
Brake Disc Type: Externally Vented
Fitting Position: Front Axle
Test Mark: ECE R90 APPROVED
Centering Diameter [mm]: 68
Quantity Unit: Piece
Rim Hole Number: 5
Hole Arrangement/Number: 10/5
Minimum thickness [mm]: 23
Brake Disc Thickness [mm]: 26
Weight [kg]: 6,9
Height [mm]: 50

reference numbers - for comparison

ATE - 24.0126-0122.1 / 24012601221
BOSCH - 0 986 479 210 / 0986479210
BREMBO - 09.8633.11 / 09863311
BREMBO - 09.8633.1X / 0986331X
BREMBO - 09.8633.75 / 09863375
FERODO - DDF1163C
HELLA PAGID - 8DD 355 107-051 / 8DD355107051
JURID - 562244JC
RAICAM - RD00950
TEXTAR - 92100503
TRW - DF4238
VOLVO - 272 403 / 272403
VOLVO - 272 403 7 / 2724037
VOLVO - 31 262 706 / 31262706
VOLVO - 31 400 739 / 31400739
VOLVO - 31 471 830 / 31471830
ZIMMERMANN - 4250238719953
ZIMMERMANN - 610.3701.20 / 610370120
ZIMMERMANN - 610.3701.52 / 610370152

item specifications

Component: Braking System
Width 1 [mm]: 155
Fitting Position: Front Axle
Test Mark: ECE R90 APPROVED
WVA Number: 23073
Quantity Unit: Set
Supplementary Article/Supplementary Info: Photo corresponds to scope of supply
Thickness [mm]: 19
Height 2 [mm]: 69
Width 2 [mm]: 156
Brake System: ATE
Height 1 [mm]: 72

reference numbers - for comparison

ATE - 13.0460-7145.2 / 13046071452
BREMBO - P 86 016 / P86016
BREMBO - P 86 016 / P86016
FERODO - FDB1382
HELLA PAGID - 8DB 355 008-851 / 8DB355008851
JURID - 573003J
TEXTAR - 2307303
TRW - GDB1388
TRW - GDB1388DTE
VOLVO - 272401
VOLVO - 2724011
VOLVO - 30648385
VOLVO - 30648386
VOLVO - 30648387
VOLVO - 31262503
VOLVO - 8634921
ZIMMERMANN - 23073
ZIMMERMANN - 23073.190.1 / 230731901
ZIMMERMANN - 23073.990.1 / 230739901
ZIMMERMANN - 23074
ZIMMERMANN - 4250238736974
ZIMMERMANN - D794-7664 / D7947664
ZIMMERMANN - D794-7664 / D7947664

item specifications

Bolt Hole Circle Ø [mm]: 108
Outer Diameter [mm]: 288
Surface: Coated
Component: Braking System
Brake Disc Type: solid
Fitting Position: Rear Axle
Test Mark: ECE R90 APPROVED
Centering Diameter [mm]: 68
Quantity Unit: Piece
Rim Hole Number: 5
Hole Arrangement/Number: 10/5
Minimum thickness [mm]: 10
Brake Disc Thickness [mm]: 12
Weight [kg]: 5,40
Height [mm]: 65

reference numbers - for comparison

ATE - 24.0112-0151.1 / 24011201511
ATE - 24.0312-0151.1 / 24031201511
BOSCH - 0 986 478 495 / 0986478495
BREMBO - 08.7765.11 / 08776511
BREMBO - 08.7765.1X / 0877651X
BREMBO - 08.7765.75 / 08776575
FERODO - DDF1079C
HELLA PAGID - 8DD 355 107-091 / 8DD355107091
JURID - 562174JC
RAICAM - RD00952
TEXTAR - 92100703
TRW - DF4066
VOLVO - 31471821
VOLVO - 9434167
VOLVO - 94341670
VOLVO - 94341674
ZIMMERMANN - 4250238719977
ZIMMERMANN - 610.3703.20 / 610370320
ZIMMERMANN - 610.3703.52 / 610370352

item specifications

Component: Braking System
Width 1 [mm]: 122
Fitting Position: Rear Axle
Test Mark: ECE R90 APPROVED
WVA Number: 23076
Quantity Unit: Set
Supplementary Article/Supplementary Info: Photo corresponds to scope of supply
Thickness [mm]: 18
Width 2 [mm]: 124
Height [mm]: 54
Brake System: ATE

reference numbers - for comparison

ATE - 13.0460-7135.2 / 13046071352
ATE - 13.0470-7135.2 / 13047071352
BOSCH - 0 986 424 539 / 0986424539
BREMBO - P 86 014 / P86014
BREMBO - P 86 014 / P86014
FERODO - FDB1383
HELLA PAGID - 8DB 355 008-871 / 8DB355008871
JURID - 573021J
RAICAM - RA.0694.0 / RA06940
TEXTAR - 2307602
TRW - GDB1389
TRW - GDB1389DTE
VOLVO - 272399
VOLVO - 272944
VOLVO - 274334
VOLVO - 30648382
VOLVO - 32373187
VOLVO - 8623862
VOLVO - 8634925
VOLVO - 86349255
ZIMMERMANN - 23076
ZIMMERMANN - 23076.175.1 / 230761751
ZIMMERMANN - 23076.975.1 / 230769751
ZIMMERMANN - 23077
ZIMMERMANN - 4250238736981
ZIMMERMANN - D795-7665 / D7957665
ZIMMERMANN - D795-7665 / D7957665
