ZIMMERMANN Brake Discs + Brake Pads + Wako for MERCEDES G-Class W463 (Front)

ZIMMERMANN Brake Discs + Brake Pads + Wako for MERCEDES G-Class W463 (Front)

ZIMMERMANN CARIPAR

Item No.: PKT562W773
Manufacturer: ZIMMERMANN, CARIPAR
part number: 400.3614.20, 29784.180.1, GBK 838

Items included:
  • 2x Brake Disc Piece - ZIMMERMANN 400.3614.20
  • 1x Brake Pad Set, disc brake Set - ZIMMERMANN 29784.180.1
  • 4x Warning Contact, brake pad wear Piece - CARIPAR GBK 838

questions about this product?
Share
Email-Icon
E-Mail
Trusted Badge Rating
item specifications
  • Component: Braking System
  • Quantity Unit: Piece
  • Brake Disc Type: internally vented
  • Fitting Position: Front Axle
  • Outer Diameter [mm]: 315
  • Hole Arrangement/Number: 6/5
  • Surface: Coated
  • Bolt Hole Circle Ø [mm]: 130
  • Height [mm]: 83
  • Brake Disc Thickness [mm]: 30
  • Minimum thickness [mm]: 27,4
  • Weight [kg]: 11
  • Centering Diameter [mm]: 85
  • Rim Hole Number: 5
  • Test Mark: ECE R90 APPROVED
reference numbers - for comparison
  • ATE - 24.0130-0217.1 / 24013002171
  • BOSCH - 0 986 479 568 / 0986479568
  • BREMBO - 09.A917.11 / 09A91711
  • BREMBO - 59.E115.79 / 59E11579
  • ECORA - 4250238762775
  • FERODO - DDF1891C-1 / DDF1891C1
  • HELLA PAGID - 8DD 355 132-151 / 8DD355132151
  • JURID - 563094JC-1 / 563094JC1
  • MERCEDES-BENZ - 463 421 0012 / 4634210012
  • MERCEDES-BENZ - 463 421 0112 / 4634210112
  • MERCEDES-BENZ - 463 421 03 12 / 4634210312
  • MERCEDES-BENZ - A 463 421 0012 / A4634210012
  • MERCEDES-BENZ - A 463 421 0012 / A4634210012
  • MERCEDES-BENZ - A 463 421 0112 / A4634210112
  • MERCEDES-BENZ - A 463 421 0112 / A4634210112
  • MERCEDES-BENZ - A 463 421 0312 / A4634210312
  • MERCEDES-BENZ - A 463 421 0312 / A4634210312
  • RAICAM - RD01195
  • TEXTAR - 92304905
  • TRW - DF6478S
  • ZIMMERMANN - 400.3614.20 / 400361420
  • ZIMMERMANN - 400.3614.52 / 400361452
item specifications
  • Component: Braking System
  • Quantity Unit: Set
  • WVA Number: 29784
  • Fitting Position: Front Axle
  • Wear Warning Contact: prepared for wear warning indicator
  • Thickness [mm]: 18
  • Width [mm]: 149
  • Height [mm]: 75
  • Brake System: PERROT
  • Test Mark: ECE R90 APPROVED
reference numbers - for comparison
  • ATE - 13.0460-4401.2 / 13046044012
  • BOSCH - 0 986 467 841 / 0986467841
  • BREMBO - P 50 134 / P50134
  • BREMBO - P 50 134 / P50134
  • ECORA - 4250238741558
  • FERODO - FVR239
  • HELLA PAGID - 8DB 355 006-061 / 8DB355006061
  • JURID - 571272J
  • MERCEDES-BENZ - 000 586 8942 / 0005868942
  • MERCEDES-BENZ - 001 420 14 20 / 0014201420
  • MERCEDES-BENZ - 001 586 7042 / 0015867042
  • MERCEDES-BENZ - 001 586 8942 / 0015868942
  • MERCEDES-BENZ - 003 420 0720 / 0034200720
  • MERCEDES-BENZ - 004 420 1420 / 0044201420
  • MERCEDES-BENZ - 004 420 9820 / 0044209820
  • MERCEDES-BENZ - 008 420 4020 / 0084204020
  • MERCEDES-BENZ - 460 420 0020 / 4604200020
  • MERCEDES-BENZ - 601 420 7620 / 6014207620
  • MERCEDES-BENZ - 601 420 8720 / 6014208720
  • MERCEDES-BENZ - 601 421 0408 / 6014210408
  • MERCEDES-BENZ - 601 421 0608 / 6014210608
  • MERCEDES-BENZ - 601 586 0042 / 6015860042
  • MERCEDES-BENZ - 669 421 0008 / 6694210008
  • MERCEDES-BENZ - 900 420 02 00 / 9004200200
  • MERCEDES-BENZ - A 000 586 8942 / A0005868942
  • MERCEDES-BENZ - A 000 586 8942 / A0005868942
  • MERCEDES-BENZ - A 001 420 1420 / A0014201420
  • MERCEDES-BENZ - A 001 420 1420 / A0014201420
  • MERCEDES-BENZ - A 001 586 7042 / A0015867042
  • MERCEDES-BENZ - A 001 586 7042 / A0015867042
  • MERCEDES-BENZ - A 001 586 8942 / A0015868942
  • MERCEDES-BENZ - A 001 586 8942 / A0015868942
  • MERCEDES-BENZ - A 003 420 0720 / A0034200720
  • MERCEDES-BENZ - A 003 420 0720 / A0034200720
  • MERCEDES-BENZ - A 004 420 1420 / A0044201420
  • MERCEDES-BENZ - A 004 420 1420 / A0044201420
  • MERCEDES-BENZ - A 004 420 9820 / A0044209820
  • MERCEDES-BENZ - A 004 420 9820 / A0044209820
  • MERCEDES-BENZ - A 008 420 4020 / A0084204020
  • MERCEDES-BENZ - A 008 420 4020 / A0084204020
  • MERCEDES-BENZ - A 460 420 0020 / A4604200020
  • MERCEDES-BENZ - A 460 420 0020 / A4604200020
  • MERCEDES-BENZ - A 601 420 7620 / A6014207620
  • MERCEDES-BENZ - A 601 420 7620 / A6014207620
  • MERCEDES-BENZ - A 601 420 8720 / A6014208720
  • MERCEDES-BENZ - A 601 420 8720 / A6014208720
  • MERCEDES-BENZ - A 601 421 0408 / A6014210408
  • MERCEDES-BENZ - A 601 421 0408 / A6014210408
  • MERCEDES-BENZ - A 601 421 0608 / A6014210608
  • MERCEDES-BENZ - A 601 421 0608 / A6014210608
  • MERCEDES-BENZ - A 601 586 0042 / A6015860042
  • MERCEDES-BENZ - A 601 586 0042 / A6015860042
  • MERCEDES-BENZ - A 669 421 0008 / A6694210008
  • MERCEDES-BENZ - A 669 421 0008 / A6694210008
  • RAICAM - RA.0198.7 / RA01987
  • TEXTAR - 2078401
  • TRW - GDB317
  • VAG - 291 698 151 / 291698151
  • VAG - 291 698 151 A / 291698151A
  • ZIMMERMANN - 20784
  • ZIMMERMANN - 29784
  • ZIMMERMANN - 29784.180.1 / 297841801
item specifications
  • Component: Braking System
  • Application: Lining Wear
  • Quantity Unit: Piece
  • Fitting Position: Front Axle
  • Fitting Position: Rear Axle
reference numbers - for comparison
  • AIC - 52294
  • ATE - 24.8190-0411.2 / 24819004112
  • BIRTH - 50796
  • BOSCH - 1987473057
  • BREMBO - A 00 284 / A00284
  • BREMBO - A 00 284 / A00284
  • BREMBO - A 00 386 / A00386
  • BREMBO - A 00 386 / A00386
  • BREMBO - A 00 387 / A00387
  • BREMBO - A 00 387 / A00387
  • BUGIAD - BW70094
  • Caripar - GBK 838 / GBK838
  • DELPHI - LZ0232
  • FERODO - FWI366
  • FTE - 9410100
  • FTE - 9410101
  • FTE - BZ1137W
  • FTE - BZ1137W-SET / BZ1137WSET
  • HELLA - 6PV009139-021 / 6PV009139021
  • HELLA - 8DK 355 250-481 / 8DK355250481
  • HELLA - 8DK 355 252-011 / 8DK355252011
  • HELLA - 8DK 355 252-021 / 8DK355252021
  • HELLA PAGID - 8DK 355 250-481 / 8DK355250481
  • HELLA PAGID - 8DK 355 252-011 / 8DK355252011
  • HELLA PAGID - 8DK 355 252-021 / 8DK355252021
  • HITACHI - 138660
  • JURID - 581368
  • JURID - 581368J
  • JURID - FWI366
  • MAGNETI MARELLI - 359003100660
  • MAGNETI MARELLI - 363700168046
  • MAGNETI MARELLI - 363700400284
  • MAGNETI MARELLI - 363700400386
  • MAGNETI MARELLI - 363700400387
  • MEAT & DORIA - 212064
  • MERCEDES-BENZ - 202 540 07 17 / 2025400717
  • MERCEDES-BENZ - A 202 540 07 17 / A2025400717
  • MERCEDES-BENZ - A 202 540 07 17 / A2025400717
  • METZGER - 1190055
  • METZGER - WK 17-055 / WK17055
  • MEYLE - 0140540026
  • OPTIMAL - WKT50445K
  • PAGID - P8046
  • PAGID - P8046
  • PAGID - P8046N
  • PAGID - P8046N
  • PAGID - P8613
  • PAGID - P8613
  • PAGID - P8613N
  • PAGID - P8613N
  • PAGID - P8614
  • PAGID - P8614
  • QUICK BRAKE - WS 0209 A / WS0209A
  • QUICK BRAKE - WS 0209 B / WS0209B
  • QUICK BRAKE - WS 0301 A / WS0301A
  • TEXTAR - 969900271
  • TEXTAR - 98027100
  • TEXTAR - 98027101
  • TEXTAR - 98027102
  • TEXTAR - 98027110
  • TOPRAN - 408 099 / 408099
  • TRUCKTEC AUTOMOTIVE - 02.42.288 / 0242288
  • TRW - GIC200
  • VEMO - V30-72-0582 / V30720582
  • VEMO - V30-72-0582 / V30720582
  • VEMO - V30-72-0582-1 / V307205821
  • VEMO - V30-72-0582-1 / V307205821
  • febi bilstein - 223272
  • febi bilstein - 23752
Name:
OTTO ZIMMERMANN GMBH
Website:
www.otto-zimmermann.de
E-Mail:
info@otto-zimmermann.de
Phone:
0049(0)7261 94514-0
Street, House no:
Am Leitzelbach 8
ZIP / City:
74889 Sinsheim - Duehren
Country:
Germany
manufacturer model type power capacity constr. date kba limitations
Customers also bought
10L LIQUI MOLY 3707 TOP TEC 4200 5W30 Engine Oil NEW GEN for VW 504.00 507.00 BMW LL-04
10L LIQUI MOLY 3707 TOP TEC 4200 5W30 Engine Oil NEW GEN for VW 504.00 507.00 BMW LL-04

96.00 EUR

9.60 EUR per 1 l

incl. VAT, excl. shipping costs

add to cart
3 x 75 ml ATE Plastilube ANTI-Squeak Paste 03.9902-1002.2
3 x 75 ml ATE Plastilube ANTI-Squeak Paste 03.9902-1002.2

14.30 EUR

63.56 EUR per 1 l

incl. VAT, excl. shipping costs

add to cart
BOSCH 0261210170 Crankshaft Sensor for CHRYSLER, DODGE, JEEP, MERCEDES, MITSUBISHI, and SMART
BOSCH 0261210170 Crankshaft Sensor for CHRYSLER, DODGE, JEEP, MERCEDES, MITSUBISHI, and...

36.95 EUR



incl. VAT, excl. shipping costs

add to cart

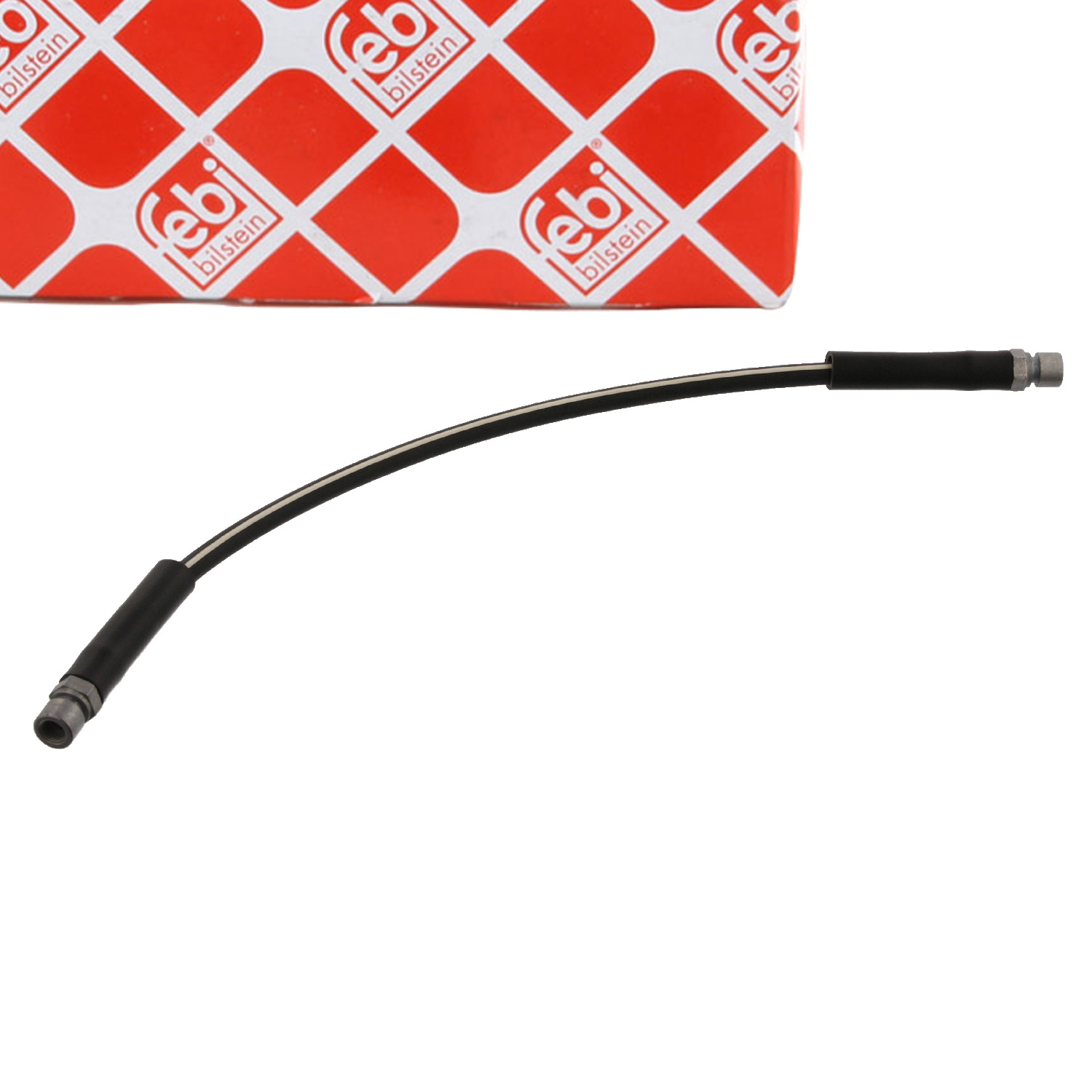

febi 36439 Brake Hose for MERCEDES G-Class W461 W463 (Front) 4614200748
