  5. Zimmermann SPORT Brake Discs + Brake Pads + Wako for MINI R56, R57, R55 (up to August 2010) – Front

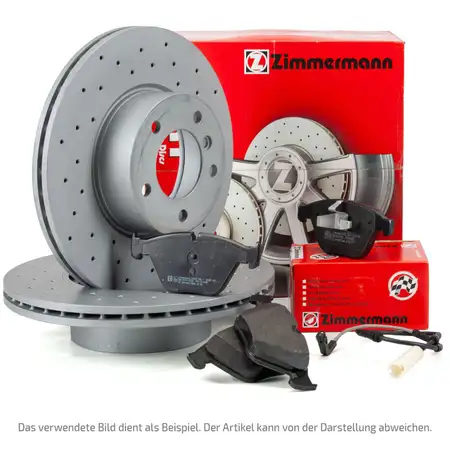

Zimmermann SPORT Brake Discs + Brake Pads + Wako for MINI R56, R57, R55 (up to August 2010) – Front

Zimmermann SPORT Brake Discs + Brake Pads + Wako for MINI R56, R57, R55 (up to August 2010) – Front

ZIMMERMANN CARIPAR

Item No.: PKT562W802
Manufacturer: ZIMMERMANN, CARIPAR
part number: 150.3488.52, 24478.150.1, GBK 416

Items included:
  • 2x Brake Disc Piece - ZIMMERMANN 150.3488.52
  • 1x Brake Pad Set, disc brake Set - ZIMMERMANN 24478.150.1
  • 1x Warning Contact, brake pad wear Piece - CARIPAR GBK 416

Free lightning shipping in DE from 90€
Prioritized ordering possible
Questions about the item?
Chat
Email-Icon
E-Mail
Trusted Badge Rating
item specifications
  • Component: Braking System
  • Quantity Unit: Piece
  • Brake Disc Type: internally vented
  • Brake Disc Type: Perforated
  • Fitting Position: Front Axle
  • Outer Diameter [mm]: 316
  • Hole Arrangement/Number: 5/4
  • Surface: Coated
  • Version: Sport
  • Bolt Hole Circle Ø [mm]: 100
  • Height [mm]: 45
  • Brake Disc Thickness [mm]: 22
  • Minimum thickness [mm]: 20,4
  • Machining: High-carbon
  • Weight [kg]: 7,60
  • Centering Diameter [mm]: 64
  • Rim Hole Number: 4
  • Test Mark: KBA 60872
reference numbers - for comparison
  • ATE - 24.0122-0317.1 / 24012203171
  • BOSCH - 0 986 479 A07 / 0986479A07
  • BREMBO - 09.B754.10 / 09B75410
  • BREMBO - 09.B754.11 / 09B75411
  • ECORA - 4250238753025
  • FERODO - DDF2127C
  • HELLA PAGID - 8DD 355 119-441 / 8DD355119441
  • JURID - 562720JC
  • MINI - 3410 6 784 366 / 34106784366
  • MINI - 3411 6 855 781 / 34116855781
  • RAICAM - RD01374
  • TEXTAR - 92255003
  • ZIMMERMANN - 150.3488.20 / 150348820
  • ZIMMERMANN - 150.3488.52 / 150348852
item specifications
  • Component: Braking System
  • Quantity Unit: Set
  • WVA Number: 24478
  • Fitting Position: Front Axle
  • Wear Warning Contact: prepared for wear warning indicator
  • Supplementary Article/Supplementary Info: Photo corresponds to scope of supply
  • Thickness [mm]: 15
  • Width [mm]: 118
  • Height [mm]: 75
  • Brake System: BREMBO
  • Test Mark: ECE R90 APPROVED
reference numbers - for comparison
  • BMW - 3411 6 778 719 / 34116778719
  • BMW - 3411 6 784 726 / 34116784726
  • BMW - 3411 6 789 157 / 34116789157
  • BMW - 3411 6 860 642 / 34116860642
  • BOSCH - 0 986 494 120 / 0986494120
  • BREMBO - P 06 068 / P06068
  • BREMBO - P 06 068 / P06068
  • DELPHI - LP2235
  • ECORA - 4250238753902
  • FERODO - FDB4358
  • HELLA - 8DB 355 014-111 / 8DB355014111
  • MINI - 3411 6 784 726 / 34116784726
  • MINI - 3411 6 789 157 / 34116789157
  • TEXTAR - 2447801
  • TRW - GDB1948
  • ZIMMERMANN - 24478
  • ZIMMERMANN - 24478.150.1 / 244781501
  • ZIMMERMANN - D1403-8511 / D14038511
  • ZIMMERMANN - D1403-8511 / D14038511
item specifications
  • Component: Braking System
  • Application: Lining Wear
  • Quantity Unit: Piece
  • Fitting Position: Front Axle
reference numbers - for comparison
  • ATE - 24.8190-0249.2 / 24819002492
  • ATE - 24.8190-0277.2 / 24819002772
  • BMW - 34 35 6 789 329 / 34356789329
  • BOSCH - 1 987 473 058 / 1987473058
  • Caripar - GBK 416 / GBK416
  • DELPHI - LZ0233
  • FERODO - FWI316
  • FTE - BZ1132W
  • HELLA - 8DK 355 250-921 / 8DK355250921
  • HELLA PAGID - 8DK 355 250-921 / 8DK355250921
  • JURID - 581407
  • MINI - 34 35 6 783 230 / 34356783230
  • MINI - 34 35 6 789 329 / 34356789329
  • PAGID - P8095
  • PAGID - P8095
  • TEXTAR - 96990 0362 0 1 / 96990036201
  • TEXTAR - 98036200
  • TRW - GIC247
  • febi bilstein - 31562
Name:
OTTO ZIMMERMANN GMBH
Website:
www.otto-zimmermann.de
E-Mail:
info@otto-zimmermann.de
Phone:
0049(0)7261 94514-0
Street, House no:
Am Leitzelbach 8
ZIP / City:
74889 Sinsheim - Duehren
Country:
Germany
