Zimmermann FORMULA Z Brake Discs + Pads + Wako for BMW 5 Series E39 M5 400 hp (front)

Item No.: PKT162W577

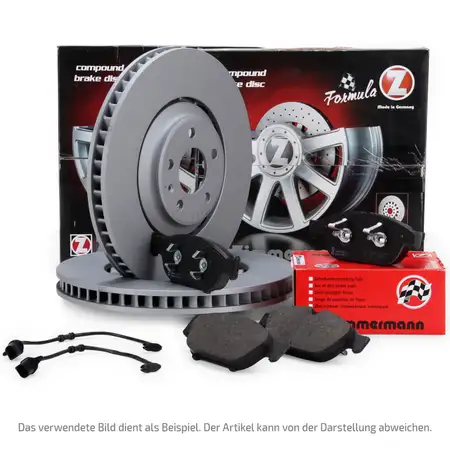

Zimmermann FORMULA Z Brake Discs + Pads + Wako for BMW 5 Series E39 M5 400 hp (front)

Item No.: PKT162W577
ZIMMERMANN
Items included:
  • 1x Brake Disc Piece - ZIMMERMANN
  • 1x Brake Disc Piece - ZIMMERMANN
  • 1x Brake Pad Set, disc brake Set - ZIMMERMANN
  • 1x Warning Contact, brake pad wear Piece

Free lightning shipping in DE from 90€
Prioritized ordering possible
Questions about the item?
E-Mail-Icon
E-Mail

Brake Disc
item specifications
  • Bolt Hole Circle Ø [mm]: 120
  • Outer Diameter [mm]: 345
  • Surface: Coated
  • Component: Braking System
  • Brake Disc Type: Vented
  • Brake Disc Type: two-piece brake disc
  • Brake Disc Type: floating brake disc
  • Brake Disc Type: Aluminium Brake Disc Hub
  • Fitting Position: Front Axle Left
  • Test Mark: KBA 61187
  • Centering Diameter [mm]: 79
  • Quantity Unit: Piece
  • Rim Hole Number: 5
  • Hole Arrangement/Number: 10/5
  • Minimum thickness [mm]: 30,4
  • Processing: Alloyed/High-carbon
  • Version: Formula Z
  • Version: Sport
  • Brake Disc Thickness [mm]: 32
  • Weight [kg]: 10,40
  • directional:
  • Height [mm]: 77
reference numbers - for comparison
  • ATE - 24.0132-0161.2 / 24013201612
  • BMW - 3411 2 228 845 / 34112228845
  • BMW - 3411 2 282 803 / 34112282803
  • ECORA - 4250238704546
  • SHW Performance - BFL48551
  • ZIMMERMANN - 150.3415.70 / 150341570
  • ZIMMERMANN - 150.3415.75 / 150341575
  • ZIMMERMANN - 4250238704546
Brake Disc
item specifications
  • Bolt Hole Circle Ø [mm]: 120
  • Outer Diameter [mm]: 345
  • Surface: Coated
  • Component: Braking System
  • Brake Disc Type: Vented
  • Brake Disc Type: two-piece brake disc
  • Brake Disc Type: floating brake disc
  • Brake Disc Type: Aluminium Brake Disc Hub
  • Fitting Position: Front Axle Right
  • Test Mark: KBA 61187
  • Centering Diameter [mm]: 79
  • Quantity Unit: Piece
  • Rim Hole Number: 5
  • Hole Arrangement/Number: 10/5
  • Minimum thickness [mm]: 30,4
  • Processing: Alloyed/High-carbon
  • Version: Sport
  • Version: Formula Z
  • Brake Disc Thickness [mm]: 32
  • Weight [kg]: 10,40
  • directional:
  • Height [mm]: 77
reference numbers - for comparison
  • ATE - 24.0132-0162.2 / 24013201622
  • BMW - 3411 2 228 846 / 34112228846
  • BMW - 3411 2 282 804 / 34112282804
  • ECORA - 4250238704553
  • SHW Performance - BFR48561
  • ZIMMERMANN - 150.3416.70 / 150341670
  • ZIMMERMANN - 150.3416.75 / 150341675
  • ZIMMERMANN - 4250238704553
Brake Pad Set, disc brake
item specifications
  • Component: Braking System
  • Width [mm]: 156
  • Fitting Position: Front Axle
  • Test Mark: ECE R90 APPROVED
  • WVA Number: 21486
  • Quantity Unit: Set
  • Supplementary Article/Supplementary Info: with retaining spring
  • Supplementary Article/Supplementary Info: Photo corresponds to scope of supply
  • Supplementary Article/Supplementary Info 2: with anti-squeak plate
  • Thickness [mm]: 19
  • Height [mm]: 73
  • Brake System: ATE
  • Wear Warning Contact: prepared for wear warning indicator
reference numbers - for comparison
  • ATE - 13.0460-7078.2 / 13046070782
  • BMW - 3411 1 163 227 / 34111163227
  • BMW - 3411 1 163 307 / 34111163307
  • BMW - 3411 1 165 227 / 34111165227
  • BMW - 3411 2 157 589 / 34112157589
  • BMW - 3411 2 180 419 / 34112180419
  • BMW - 3411 2 229 031 / 34112229031
  • BMW - 3411 2 282 090 / 34112282090
  • BMW - 3411 2 282 165 / 34112282165
  • BMW - 3411 2 282 166 / 34112282166
  • BMW - 3411 2 282 556 / 34112282556
  • BMW - 3411 2 357 230 / 34112357230
  • BMW - 3411 3 427 303 / 34113427303
  • BMW - 3411 3 427 503 / 34113427503
  • BMW - 3411 6 761 252 / 34116761252
  • BOSCH - 0 986 494 028 / 0986494028
  • BREMBO - P 06 021 / P06021
  • BREMBO - P 06 021 / P06021
  • ECORA - 4250238734925
  • FERODO - FDB997
  • HELLA - 8DB 355 008-281 / 8DB355008281
  • JURID - 571873J
  • RAICAM - RA.0788.0 / RA07880
  • TEXTAR - 2148602
  • TRW - GDB1261
  • ZIMMERMANN - 21486
  • ZIMMERMANN - 21486.190.1 / 214861901
  • ZIMMERMANN - 21486.190.2 / 214861902
  • ZIMMERMANN - 21486.990.1 / 214869901
  • ZIMMERMANN - 21642
  • ZIMMERMANN - 4250238734925
  • ZIMMERMANN - D681-7560 / D6817560
  • ZIMMERMANN - D681-7560 / D6817560
Warning Contact, brake pad wear
item specifications
  • Component: Braking System
  • Fitting Position: Front Axle
  • Application: Lining Wear
  • Quantity Unit: Piece
reference numbers - for comparison
