  5. ZIMMERMANN Brake Discs + Pads for AUDI A4, S4 (B8), A5, S5 (8T, 8F) up to November 2010, Q5 (8R) – Rear

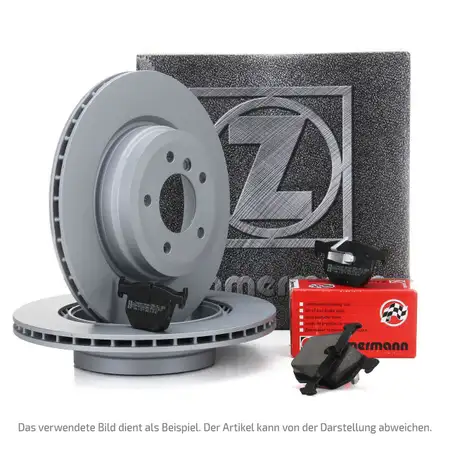

ZIMMERMANN Brake Discs + Pads for AUDI A4, S4 (B8), A5, S5 (8T, 8F) up to November 2010, Q5 (8R) – Rear

ZIMMERMANN Brake Discs + Pads for AUDI A4, S4 (B8), A5, S5 (8T, 8F) up to November 2010, Q5 (8R) – Rear

ZIMMERMANN

Item No.: PKT962W460
Manufacturer: ZIMMERMANN
part number: 100.3334.20, 24606.175.3

Items included:
  • 2x Brake Disc Piece - ZIMMERMANN
  • 1x Brake Pad Set, disc brake Set - ZIMMERMANN

Free lightning shipping in DE from 90€
Prioritized ordering possible
Questions about the item?
Chat
E-Mail-Icon
E-Mail
item specifications
  • Bolt Hole Circle Ø [mm]: 112
  • Outer Diameter [mm]: 330
  • Surface: Coated
  • Component: Braking System
  • Brake Disc Type: Externally Vented
  • Fitting Position: Rear Axle
  • Test Mark: ECE R90 APPROVED
  • Centering Diameter [mm]: 68
  • Quantity Unit: Piece
  • Rim Hole Number: 5
  • Hole Arrangement/Number: 6/5
  • Minimum thickness [mm]: 20
  • Processing: High-carbon
  • Brake Disc Thickness [mm]: 22
  • Weight [kg]: 7,8
  • Height [mm]: 36
reference numbers - for comparison
  • ATE - 24.0122-0272.1 / 24012202721
  • BOSCH - 0 986 479 750 / 0986479750
  • BOSCH - 0 986 479 C86 / 0986479C86
  • BREMBO - 09.B040.11 / 09B04011
  • BREMBO - 09.B040.1S / 09B0401S
  • BREMBO - 09.B040.1X / 09B0401X
  • BREMBO - 59.E114.47 / 59E11447
  • FERODO - DDF1667C
  • HELLA PAGID - 8DD 355 128-741 / 8DD355128741
  • JURID - 562645JC
  • RAICAM - RD01133
  • TEXTAR - 92160303
  • TRW - DF4860S
  • VAG - 4H0 615 601 Q / 4H0615601Q
  • VAG - 8K0 615 601 C / 8K0615601C
  • ZIMMERMANN - 100.3334.20 / 100333420
  • ZIMMERMANN - 100.3334.52 / 100333452
  • ZIMMERMANN - 100.3334.53 / 100333453
  • ZIMMERMANN - 4250238720560
item specifications
  • Component: Braking System
  • Width [mm]: 116
  • Fitting Position: Rear Axle
  • Test Mark: ECE R90 APPROVED
  • WVA Number: 24606
  • Quantity Unit: Set
  • Supplementary Article/Supplementary Info: with sliding plate
  • Supplementary Article/Supplementary Info: Photo corresponds to scope of supply
  • Supplementary Article/Supplementary Info 2: with brake caliper screws
  • Thickness [mm]: 18
  • Height [mm]: 59
  • Brake System: LUCAS-GIRLING
  • Sliding plate internal dimension [mm]: 27,8
reference numbers - for comparison
  • ATE - 13.0460-2748.2 / 13046027482
  • ATE - 13.0470-2748.2 / 13047027482
  • BOSCH - 0 986 494 733 / 0986494733
  • BREMBO - 07.B315.56 / 07B31556
  • BREMBO - P 85 100 / P85100
  • BREMBO - P 85 100 / P85100
  • BREMBO - P 85 100X / P85100X
  • BREMBO - P 85 100X / P85100X
  • FERODO - FDB4190
  • HELLA PAGID - 8DB 355 025-381 / 8DB355025381
  • HERTH+BUSS JAKOPARTS - J3610825
  • HERTH+BUSS JAKOPARTS - J3610825
  • JURID - 573259J
  • JURID - 573259JC
  • RAICAM - RA.0915.0 / RA09150
  • TEXTAR - 2460601
  • TRW - GDB1765
  • TRW - GDB1765DTE
  • VAG - 8K0 698 451 / 8K0698451
  • VAG - 8K0 698 451 A / 8K0698451A
  • VAG - 8K0 698 451 B / 8K0698451B
  • VAG - 8K0 698 451 C / 8K0698451C
  • VAG - 8K0 698 451 D / 8K0698451D
  • VAG - 8K0 698 451 E / 8K0698451E
  • VAG - 8K0 698 451 F / 8K0698451F
  • VAG - 8K0 698 451 G / 8K0698451G
  • VAG - 8K0 698 451 L / 8K0698451L
  • VAG - 8K0 698 451 P / 8K0698451P
  • ZIMMERMANN - 24606
  • ZIMMERMANN - 24606.175.3 / 246061753
  • ZIMMERMANN - 24606.975.1 / 246069751
  • ZIMMERMANN - 4250238765301
  • ZIMMERMANN - D1386-8494 / D13868494
  • ZIMMERMANN - D1386-8494 / D13868494
Name:
OTTO ZIMMERMANN GMBH
Website:
www.otto-zimmermann.de
E-Mail:
info@otto-zimmermann.de
Phone:
0049(0)7261 94514-0
Street, House no:
Am Leitzelbach 8
ZIP / City:
74889 Sinsheim - Duehren
Country:
Germany
