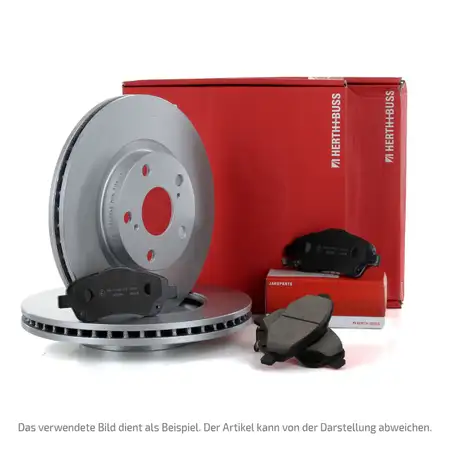

HERTH+BUSS JAKOPARTS Brake Discs + Pads DAIHATSU Move (L9_) Sirion (M1) YRV (M2) Front

HERTH+BUSS JAKOPARTS Brake Discs + Pads DAIHATSU Move (L9_) Sirion (M1) YRV (M2) Front

Item No.: PKT572W014
Manufacturer: HERTH+BUSS JAKOPARTS
part number: J3306023, J3606019, J3666003

Items included:

2x Brake Disc Piece - HERTH+BUSS JAKOPARTS
1x Brake Pad Set, disc brake Set - HERTH+BUSS JAKOPARTS
1x Accessory Kit, disc brake pad Set - HERTH+BUSS JAKOPARTS

item specifications

Surface: Coated
Bolt Hole Circle Ø [mm]: 100
Outer Diameter [mm]: 234
No. of holes 1: 2
Component: Braking System
Number of Holes: 4
Brake Disc Type: internally vented
Fitting Position: Front Axle
Registration Type: ECE approved
Quantity Unit: Piece
Minimum thickness [mm]: 15
Brake Disc Thickness [mm]: 16
Hub Diameter [mm]: 55
Height [mm]: 41
Inner Diameter [mm]: 125
Required quantity: 2
fulfils ECE standard: E1 90R-02C0064/0047

reference numbers - for comparison

ACKOJA - A54-80004 / A5480004
ACKOJA - A54-80004 / A5480004
ATE - 24.0116-0120.1 / 24011601201
ATE - 24.0116-0130.1 / 24011601301
ATE - 416120
ATE - 416130
BLUE PRINT - ADD64319C
BLUE PRINT - ADD64322
BOSCH - 0 986 479 352 / 0986479352
BOSCH - 0 986 479 592 / 0986479592
BOSCH - 0 986 479 C18 / 0986479C18
BOSCH - 0 986 AB5 127 / 0986AB5127
BOSCH - 0 986 AB5 430 / 0986AB5430
BOSCH - 0 986 AB6 393 / 0986AB6393
BOSCH - 0 986 AB9 605 / 0986AB9605
BREMBO - 09.A236.10 / 09A23610
BREMBO - 09.A236.11 / 09A23611
BREMBO - 09.A421.10 / 09A42110
DAIHATSU - 43512-97202 / 4351297202
DAIHATSU - 43512-97202-000 / 4351297202000
DAIHATSU - 43512-B1040 / 43512B1040
DAIHATSU - 43512-B1040-000 / 43512B1040000
DAIHATSU - 43512-B1050 / 43512B1050
DAIHATSU - 43512-B1050-000 / 43512B1050000
DAIHATSU - 43512-BZ030 / 43512BZ030
DAIHATSU - 43512-BZ030-000 / 43512BZ030000
DELPHI - BG3555
EUROREPAR - 1667862680
FERODO - DDF1394
FERODO - DDF1394-1 / DDF13941
FERODO - DDF1394C
FTE - 9072174
FTE - BS5195
HELLA - 8DD 355 110-701 / 8DD355110701
HELLA - 8DD 355 126-801 / 8DD355126801
HELLA PAGID - 8DD 355 110-701 / 8DD355110701
HELLA PAGID - 8DD 355 126-801 / 8DD355126801
HERTH+BUSS JAKOPARTS - J3306023
JP Group - 5263100400
JP Group - 5263100409
JURID - 562814JC
JURID - 562814JC-1 / 562814JC1
JURID - 562859JC
MAGNETI MARELLI - 360406132201
MAGNETI MARELLI - 600000089130
MAGNETI MARELLI - DFV1322
MAGNETI MARELLI - J3306023
MAGNETI MARELLI - J3306023
METZGER - 6110317
METZGER - 6110980
METZGER - 6954.10 / 695410
MEYLE - 39-15 521 0004 / 39155210004
OPTIMAL - BS-8810 / BS8810
OPTIMAL - BS-8810C / BS8810C
PAGID - 54291
PAGID - 55856
RAICAM - RD00990
SKF - VKBD 80632 V2 / VKBD80632V2
SUBARU - 43512-B1050 / 43512B1050
TEXTAR - 92129100
TEXTAR - 92129103
TEXTAR - 92285603
TEXTAR - 98200 1291 0 1 / 98200129101
TRW - DF4696
TRW - DF4887
TRW - DF7333
VAICO - V54-80004 / V5480004
VAICO - V54-80004 / V5480004
VALEO - 197380
febi bilstein - 28443

item specifications

Component: Braking System
Width 1 [mm]: 115
Fitting Position: Front Axle
Registration Type: ECE approved
WVA Number: 23497
Quantity Unit: Set
Supplementary Article/Supplementary Info 2: with staples
Thickness [mm]: 15,5
Width 2 [mm]: 95
Height [mm]: 41,5

reference numbers - for comparison

ATE - 13.0460-5852.2 / 13046058522
ATE - 605852
BLUE PRINT - ADD64228
BLUE PRINT - ADD64235
BOSCH - 0 986 424 697 / 0986424697
BOSCH - 0 986 AB0 220 / 0986AB0220
BOSCH - 0 986 AB2 559 / 0986AB2559
BOSCH - 0 986 AB2 561 / 0986AB2561
BOSCH - 0 986 T18 138 / 0986T18138
BOSCH - 0 986 TB2 794 / 0986TB2794
BREMBO - P 16 008 / P16008
BREMBO - P 16 008 / P16008
BREMBO - P16008N
BREMBO - P16008N
DAIHATSU - 04491-97201 / 0449197201
DAIHATSU - 04491-97201-000 / 0449197201000
DAIHATSU - 04491-97205 / 0449197205
DAIHATSU - 04491-97205-000 / 0449197205000
DAIHATSU - 04491-97212 / 0449197212
DAIHATSU - 04491-97212-000 / 0449197212000
DAIHATSU - 04491-97401 / 0449197401
DAIHATSU - 04491-97401-000 / 0449197401000
DAIHATSU - 04491-97403 / 0449197403
DAIHATSU - 04491-97403-000 / 0449197403000
DAIHATSU - 04491-97405 / 0449197405
DAIHATSU - 04491-97405-000 / 0449197405000
DELPHI - LP1551
FERODO - FDB1501
FERODO - FSL1501
FTE - 9001503
FTE - BL1865A2
HELLA - 8DB 355 017-111 / 8DB355017111
HELLA - 8DB 355 029-371 / 8DB355029371
HELLA PAGID - 8DB 355 017-111 / 8DB355017111
HELLA PAGID - 8DB 355 029-371 / 8DB355029371
HERTH+BUSS JAKOPARTS - J3606019
JURID - 572565J
MAGNETI MARELLI - 363700203103
MAGNETI MARELLI - 363700416008
MAGNETI MARELLI - 363802160733
MAGNETI MARELLI - 363916060209
MAGNETI MARELLI - 600000099070
MAGNETI MARELLI - J3606019
MAGNETI MARELLI - J3606019
MAGNETI MARELLI - P16008MM
MAGNETI MARELLI - P16008MM
MAGNETI MARELLI - PF0209
MAGNETI MARELLI - T3103MM
MAGNETI MARELLI - T3103MM
METZGER - 0720.02 / 072002
METZGER - 1170748
MEYLE - 025 234 9714/W / 0252349714W
OPTIMAL - 12077
OPTIMAL - BP-12077 / BP12077
PAGID - T3103
PAGID - T3103
RAICAM - 729.0 / 7290
RAICAM - RA.0729.0 / RA07290
SPIDAN - 32341
TEXTAR - 23497 15,5 0 5 / 2349715505
TEXTAR - 2349701
TEXTAR - 2349715
TRW - GDB3220
TRW - GDB3266
TRW - GDB7025
VALEO - 302826
VALEO - 598856
VALEO - 670856
ZIMMERMANN - 23497.155.1 / 234971551

item specifications

Component: Braking System
Fitting Position: Front Axle
Quantity: 6
Brake System: AKEBONO
Application: Disc Brake Pad
Quantity Unit: Set

reference numbers - for comparison

BOSCH - 1987474646
HERTH+BUSS JAKOPARTS - 4029416219963
HERTH+BUSS JAKOPARTS - J3666003
METZGER - Z1604
METZGER - Z1604
QUICK BRAKE - 109-1604 / 1091604
TEXTAR - 82510300
TRW - PFK469
