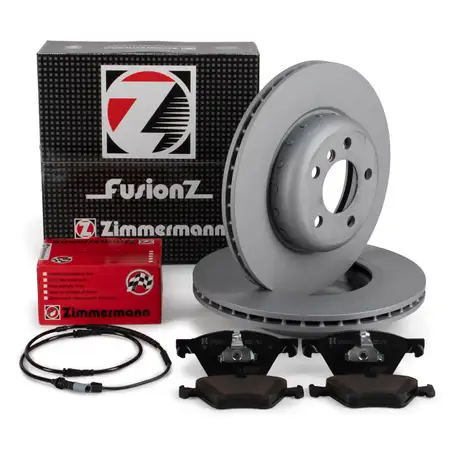

Zimmermann FORMULA F brake discs + Pads for BMW 5 Series F10 F11 520/523i 518/520d (Front)

Zimmermann FORMULA F brake discs + Pads for BMW 5 Series F10 F11 520/523i 518/520d (Front)

Zimmermann FORMULA F brake discs + Pads for BMW 5 Series F10 F11 520/523i 518/520d (Front)

Zimmermann FORMULA F brake discs + Pads for BMW 5 Series F10 F11 520/523i 518/520d (Front)

Zimmermann FORMULA F brake discs + Pads for BMW 5 Series F10 F11 520/523i 518/520d (Front)

Zimmermann FORMULA F brake discs + Pads for BMW 5 Series F10 F11 520/523i 518/520d (Front)

Zimmermann FORMULA F brake discs + Pads for BMW 5 Series F10 F11 520/523i 518/520d (Front)

ZIMMERMANN

CARIPAR

Item No.: PKT652W653
Manufacturer: ZIMMERMANN, CARIPAR
part number: 150.3482.32, 24697.190.1, GBK 436

Items included:

2x Brake Disc Piece - ZIMMERMANN 150.3482.32
1x Brake Pad Set, disc brake Set - ZIMMERMANN 24697.190.1
1x Warning Contact, brake pad wear Piece - CARIPAR GBK 436

item specifications

Component: Braking System
Quantity Unit: Piece
Brake Disc Type: internally vented
Brake Disc Type: two-piece brake disc
Brake Disc Type: Aluminium Brake Disc Hub
Fitting Position: Front Axle
Outer Diameter [mm]: 330
Hole Arrangement/Number: 6/5
Surface: Coated
Version: Formula F
Bolt Hole Circle Ø [mm]: 120
Height [mm]: 66
Brake Disc Thickness [mm]: 24
Minimum thickness [mm]: 22,4
Machining: High-carbon
Weight [kg]: 8,2
Centering Diameter [mm]: 75
Rim Hole Number: 5
Test Mark: ECE R90 APPROVED

reference numbers - for comparison

ATE - 24.0124-0239.2 / 24012402392
BMW - 34 11 6 794 429 / 34116794429
BMW - 34 11 6 896 652 / 34116896652
BMW - 3410 6 883 506 / 34106883506
BMW - 3411 6 793 123 / 34116793123
BOSCH - 0 986 479 E07 / 0986479E07
BREMBO - 09.C410.13 / 09C41013
ECORA - 4250238769361
FERODO - DDF2039C
HELLA PAGID - 8DD 355 120-661 / 8DD355120661
JURID - 562889JC
RAICAM - RD01519
TEXTAR - 92265825
TRW - DF6616S
ZIMMERMANN - 150.3482.20 / 150348220
ZIMMERMANN - 150.3482.32 / 150348232
ZIMMERMANN - 150.3482.52 / 150348252
ZIMMERMANN - 150.3482.53 / 150348253

item specifications

Component: Braking System
Quantity Unit: Set
WVA Number: 24697
Fitting Position: Front Axle
Supplementary Article/Supplementary Info: Photo corresponds to scope of supply
Thickness [mm]: 19
Width [mm]: 155
Height [mm]: 64
Brake System: ATE
Test Mark: ECE R90 APPROVED

reference numbers - for comparison

ATE - 13.0460-7268.2 / 13046072682
BMW - 3411 2 449 269 / 34112449269
BMW - 3411 6 775 310 / 34116775310
BMW - 3411 6 796 844 / 34116796844
BMW - 3411 6 798 190 / 34116798190
BMW - 3411 6 850 886 / 34116850886
BMW - 3411 6 856 591 / 34116856591
BMW - 3411 6 858 047 / 34116858047
BMW - 3411 6 860 242 / 34116860242
BMW - 3411 6 872 632 / 34116872632
BOSCH - 0 986 494 118 / 0986494118
BREMBO - P 06 060 / P06060
BREMBO - P 06 060 / P06060
ECORA - 4250238753865
FERODO - FDB1773
FERODO - FSL1773
JURID - 573364J
TEXTAR - 2469701
TEXTAR - 2469781
TRW - GDB1882
ZIMMERMANN - 23697
ZIMMERMANN - 23794
ZIMMERMANN - 24697.190.1 / 246971901
ZIMMERMANN - D1504-8705 / D15048705
ZIMMERMANN - D1504-8705 / D15048705
ZIMMERMANN - D1579-8706 / D15798706
ZIMMERMANN - D1579-8706 / D15798706

item specifications

Component: Braking System
Application: Lining Wear
Quantity Unit: Piece
Fitting Position: Front Axle

reference numbers - for comparison

ATE - 24.8190-0298.2 / 24819002982
ATE - 620298
BMW - 34 35 6 791 958 / 34356791958
BOSCH - 1 987 473 500 / 1987473500
BREMBO - A 00 422 / A00422
BREMBO - A 00 422 / A00422
Caripar - GBK 436 / GBK436
DELPHI - LZ0211
FERODO - FWI334
FTE - BZ1173W-SET / BZ1173WSET
HELLA - 8DK 355 251-631 / 8DK355251631
HELLA PAGID - 8DK 355 251-631 / 8DK355251631
JURID - 581475
PAGID - P8574
PAGID - P8574
TEXTAR - 98042400
febi bilstein - 36426
