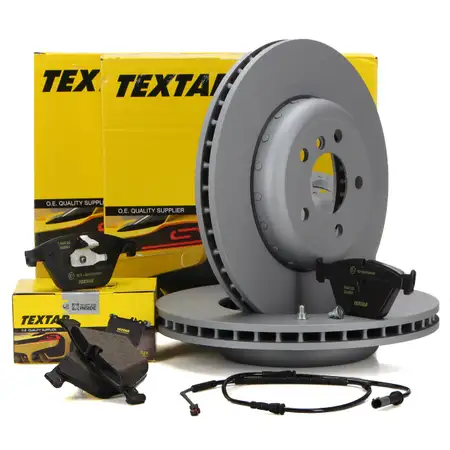

TEXTAR Brake Discs + Pads for BMW 5 Series F10 F11 528-535i 525d 530d 6 Series F06 (Front)

TEXTAR Brake Discs + Pads for BMW 5 Series F10 F11 528-535i 525d 530d 6 Series F06 (Front)

Item No.: PKT652W826
Manufacturer: TEXTAR, CARIPAR
part number: 92265725, 2468801, GBK 436

Items included:

2x Brake Disc Piece - TEXTAR 92265725
1x Brake Pad Set, disc brake Set - TEXTAR 2468801
1x Warning Contact, brake pad wear Piece - CARIPAR GBK 436

item specifications

Component: Braking System
Quantity Unit: Piece
Brake Disc Type: internally vented
Brake Disc Type: two-piece brake disc
Fitting Position: Front Axle
Outer Diameter [mm]: 348
Hole Arrangement/Number: 05/06
Surface: Coated
Supplementary Article/Supplementary Info 2: without wheel hub
Supplementary Article/Supplementary Info 2: without wheel bearing
Supplementary Article/Supplementary Info 2: without wheel studs
Supplementary Article/Supplementary Info 2: with bolts/screws
Bolt Hole Circle Ø [mm]: 120
Height [mm]: 66,1
Brake Disc Thickness [mm]: 30
Minimum thickness [mm]: 28,4
Inner Diameter [mm]: 186,8
Machining: High-carbon
Weight [kg]: 10,6
Centering Diameter [mm]: 75
Wheel Bolt Bore Diameter [mm]: 16,5
Number of bolts/screws: 1
Packaging length [cm]: 35,8
Packaging width [cm]: 35,8
Packaging height [cm]: 8,5

reference numbers - for comparison

ATE - 24013002182
ATE - 430218
BLUE PRINT - ADB114384
BMW - 34 10 6 898 723 / 34106898723
BMW - 34116775277
BMW - 34116884301
BMW - 6775277
BMW - 6884301
BMW - 6898723
BOSCH - 0986479772
BOSCH - 0986479E16
BOSCH - 0986AB5809
BOSCH - 0986AB5961
BREMBO - 09C40913
DELPHI - BG9154BC
DELPHI - BG9154C
ECORA - 4019722471469
EUROREPAR - 1671252780
FERODO - DDF2047C1
FTE - BS7845HB
HELLA - 355120651
HELLA - 355120652
HELLA - 8DD355120651
HELLA - 8DD355120652
HELLA PAGID - 355120651
HELLA PAGID - 355120652
HELLA PAGID - 8DD355120651
HELLA PAGID - 8DD355120652
JURID - 562679JC
JURID - 562679JC1
MEYLE - 3835211008PD
OPTIMAL - BS9318
OPTIMAL - BS9318HC
PAGID - 65128
PAGID - 65128HC
TEXTAR - 2504501265700
TEXTAR - 4019722471469
TEXTAR - 92265725
TEXTAR - 98200265701
TRUCKTEC AUTOMOTIVE - 0835212
TRW - DF6615S
TRW - DF8026
TRW - DF8026S
VAICO - V2080088
VAICO - V2080088
ZIMMERMANN - 150348320
ZIMMERMANN - 150348332
ZIMMERMANN - 150348352
febi bilstein - 105723

item specifications

Component: Braking System
Quantity Unit: Set
WVA Number: 24688
Fitting Position: Front Axle
Wear Warning Contact: prepared for wear warning indicator
Thickness 1 [mm]: 19,2
Thickness 2 [mm]: 20,3
Width 1 [mm]: 155,3
Width 2 [mm]: 155,3
Height 1 [mm]: 68,3
Height 2 [mm]: 68,3
Brake System: Teves
Weight [kg]: 1,8
Packaging length [cm]: 17
Packaging width [cm]: 12
Packaging height [cm]: 8,3

reference numbers - for comparison

ATE - 13046072752
ATE - 13047072752
ATE - 607275
ATE - LD7275
BLUE PRINT - ADB114210
BMW - 2449266
BMW - 34 11 6 775 314 / 34116775314
BMW - 34 11 6 798 190 / 34116798190
BMW - 34 11 6 850 885 / 34116850885
BMW - 34 11 6 850 886 / 34116850886
BMW - 34 11 6 871 557 / 34116871557
BMW - 34 11 8 847 063 / 34118847063
BMW - 34112449266
BMW - 6775314
BMW - 6798190
BMW - 6850885
BMW - 6850886
BMW - 6871557
BMW - 8847063
BOSCH - 0986494354
BOSCH - 0986494549
BOSCH - 0986494898
BOSCH - 0986AB2574
BOSCH - 0986T14755
BOSCH - 0986TB3033
BOSCH - 0986TB3134
BOSCH - BC1505
BOSCH - BC919A
BOSCH - BE1505
BREMBO - P06074
BREMBO - P06074
BREMBO - P06074N
BREMBO - P06074N
CHAMPION - 573305CH
DELPHI - LP2245
DELPHI - LP224514B1
DELPHI - LP224517B1
DELPHI - LP2245N18B1
DELPHI - LP2245ND19B1
ECORA - 4019722405518
EUROREPAR - 1635147180
EUROREPAR - 1681246180
FERODO - FDB4382
FERODO - FDB4382D
FERODO - FDB4382S
FERODO - FSL4191
FERODO - FSL4382
FTE - 9010668
FTE - BL2084A2
FTE - BL2715A1
HELLA - 355015261
HELLA - 355026351
HELLA - 8DB355015261
HELLA - 8DB355026351
HELLA PAGID - 355015261
HELLA PAGID - 355026351
HELLA PAGID - 8DB355015261
HELLA PAGID - 8DB355026351
JURID - 573305J
JURID - 573305JAS
JURID - 573305JC
JURID - 573305JD
JURID - 573305JTD
MAGNETI MARELLI - 363700201962
MAGNETI MARELLI - 363700406074
MAGNETI MARELLI - T1962MM
MAGNETI MARELLI - T1962MM
METZGER - 1170538
MEYLE - 0252468820
MEYLE - 0252468820PD
MEYLE - MBP0651
MEYLE - MBP0651PD
OPTIMAL - 85700
OPTIMAL - BP12601
PAGID - T1962
PAGID - T1962
PAGID - T1962N
PAGID - T1962N
RAICAM - 7892
RAICAM - RA07892
TEXTAR - 24688 192 0 5 / 2468819205
TEXTAR - 2468801
TEXTAR - 2468803
TEXTAR - 2468881
TEXTAR - 8706D1505
TRW - GDB1854
TRW - GDB1854DTE
TRW - TRH1505
TRW - TRH1597
TRW - TXH1504
TRW - TXH1505
TRW - TXH1597
VAICO - V201464
VAICO - V201464
VAICO - V204273
VAICO - V204273
VALEO - 208155
VALEO - 302273
VALEO - 601320
VALEO - 601382
ZIMMERMANN - 246882001
febi bilstein - 16865
febi bilstein - 16899

item specifications

Component: Braking System
Application: Lining Wear
Quantity Unit: Piece
Fitting Position: Front Axle

reference numbers - for comparison

ATE - 24.8190-0298.2 / 24819002982
ATE - 620298
BMW - 34 35 6 791 958 / 34356791958
BOSCH - 1 987 473 500 / 1987473500
BREMBO - A 00 422 / A00422
BREMBO - A 00 422 / A00422
Caripar - GBK 436 / GBK436
DELPHI - LZ0211
FERODO - FWI334
FTE - BZ1173W-SET / BZ1173WSET
HELLA - 8DK 355 251-631 / 8DK355251631
HELLA PAGID - 8DK 355 251-631 / 8DK355251631
JURID - 581475
PAGID - P8574
PAGID - P8574
TEXTAR - 98042400
febi bilstein - 36426

Name:

TMD Friction Services GmbH

Website:

www.textar.com

E-Mail:

serviceline@textar.com

Phone:

+49 2171 703 0

Street, House no:

Schlebuscher Strasse 99

ZIP / City:

51381 Leverkusen

Country:

Germany
