  5. Zimmermann SPORT brake discs + Pads + Wako for BMW 1 Series E82 E88 135i (model year 2010 and later) – rear

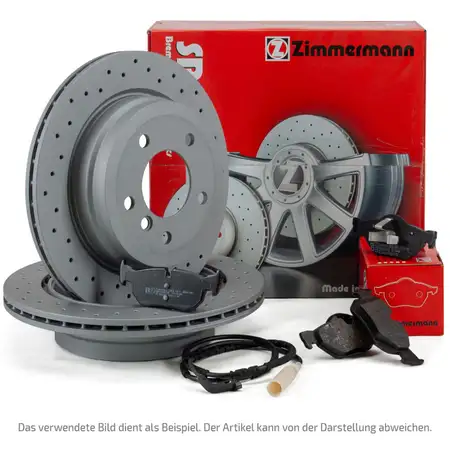

Zimmermann SPORT brake discs + Pads + Wako for BMW 1 Series E82 E88 135i (model year 2010 and later) – rear

Zimmermann SPORT brake discs + Pads + Wako for BMW 1 Series E82 E88 135i (model year 2010 and later) – rear

ZIMMERMANN CARIPAR

Item No.: PKT162W738
Manufacturer: ZIMMERMANN, CARIPAR
part number: 150.3464.52, 24315.168.1, GBK 421

Items included:
  • 2x Brake Disc Piece - ZIMMERMANN
  • 1x Brake Pad Set, disc brake Set - ZIMMERMANN
  • 1x Warning Contact, brake pad wear Piece - CARIPAR

Free lightning shipping in DE from 90€
Prioritized ordering possible
Questions about the item?
Chat
Email-Icon
E-Mail
Trusted Badge Rating
item specifications
  • Bolt Hole Circle Ø [mm]: 120
  • Outer Diameter [mm]: 324
  • Surface: Coated
  • Component: Braking System
  • Brake Disc Type: internally vented
  • Brake Disc Type: Perforated
  • Fitting Position: Rear Axle
  • Test Mark: ECE R90APPROVED
  • Centering Diameter [mm]: 75
  • Quantity Unit: Piece
  • Rim Hole Number: 5
  • Hole Arrangement/Number: 6/5
  • Minimum thickness [mm]: 20,4
  • Processing: High-carbon
  • Version: Sport
  • Brake Disc Thickness [mm]: 22
  • Weight [kg]: 8,1
  • Height [mm]: 77
reference numbers - for comparison
  • ATE - 24.0122-0257.1 / 24012202571
  • BMW - 3421 6 778 649 / 34216778649
  • BMW - 3421 6 855 003 / 34216855003
  • BMW - 6 778 649 / 6778649
  • BMW - 6 855 003 / 6855003
  • BOSCH - 0 986 479 569 / 0986479569
  • BREMBO - 09.C315.11 / 09C31511
  • DELPHI - BG4284
  • FERODO - DDF1812C-1 / DDF1812C1
  • HELLA PAGID - 8DD 355 126-521 / 8DD355126521
  • JURID - 562721JC
  • TEXTAR - 92201903
  • ZIMMERMANN - 150.3464.20 / 150346420
  • ZIMMERMANN - 150.3464.32 / 150346432
  • ZIMMERMANN - 150.3464.52 / 150346452
  • ZIMMERMANN - 150.3464.53 / 150346453
  • ZIMMERMANN - 4250238749455
item specifications
  • Component: Braking System
  • Width [mm]: 85
  • Fitting Position: Rear Axle
  • Test Mark: ECE R90 APPROVED
  • WVA Number: 24315
  • Quantity Unit: Set
  • Supplementary Article/Supplementary Info: with counterweights
  • Supplementary Article/Supplementary Info: Photo corresponds to scope of supply
  • Thickness [mm]: 17
  • Height [mm]: 76
  • Brake System: BREMBO
  • Wear Warning Contact: prepared for wear warning indicator
reference numbers - for comparison
  • ATE - 13.0460-4849.2 / 13046048492
  • ATE - 13.0470-4849.2 / 13047048492
  • BMW - 3421 6 784 808 / 34216784808
  • BMW - 3421 6 791 421 / 34216791421
  • BMW - 6 784 808 / 6784808
  • BMW - 6 791 421 / 6791421
  • BOSCH - 0 986 494 421 / 0986494421
  • BREMBO - P 06 059 / P06059
  • BREMBO - P 06 059 / P06059
  • FERODO - FDB4217
  • HELLA - 8DB 355 012-551 / 8DB355012551
  • JURID - 573310J
  • RAICAM - RA.1044.0 / RA10440
  • TEXTAR - 2431501
  • TRW - GDB1795
  • ZIMMERMANN - 24315
  • ZIMMERMANN - 24315.168.1 / 243151681
  • ZIMMERMANN - 4250238756811
item specifications
  • Component: Braking System
  • Fitting Position: Rear Axle
  • Application: Lining Wear
  • Quantity Unit: Piece
reference numbers - for comparison
  • ATE - 24.8190-0285.2 / 24819002852
  • ATE - 24819002852
  • ATE - 620285
  • BMW - 34 35 6 792 564 / 34356792564
  • BMW - 34356792564
  • BMW - 6792564
  • BOSCH - 0986T10013
  • BOSCH - 1987473515
  • BREMBO - A00437
  • BREMBO - A00437
  • Caripar - GBK 421 / GBK421
  • DELPHI - LZ0331
  • FERODO - FWI357
  • FERODO - FWI357
  • FTE - BZ1161WSET
  • HELLA - 355251781
  • HELLA - 8DK355251781
  • HELLA PAGID - 355251781
  • HELLA PAGID - 8DK 355 251-781 / 8DK355251781
  • HELLA PAGID - 8DK355251781
  • HERTH+BUSS JAKOPARTS - 70608150
  • JURID - 581393
  • JURID - FWI357
  • METZGER - 1190248
  • MEYLE - 3145270012
  • MEYLE - MWS0075
  • OPTIMAL - WKT60025K
  • PAGID - P8589
  • PAGID - P8589
  • PAGID - P8589N
  • PAGID - P8589N
  • QUICK BRAKE - WS0355A
  • TEXTAR - 98043900
  • TEXTAR - 98043910
  • TRW - GIC270
  • TRW - GIC270CN
  • febi bilstein - 37669
Name:
OTTO ZIMMERMANN GMBH
Website:
www.otto-zimmermann.de
E-Mail:
info@otto-zimmermann.de
Phone:
0049(0)7261 94514-0
Street, House no:
Am Leitzelbach 8
ZIP / City:
74889 Sinsheim - Duehren
Country:
Germany
