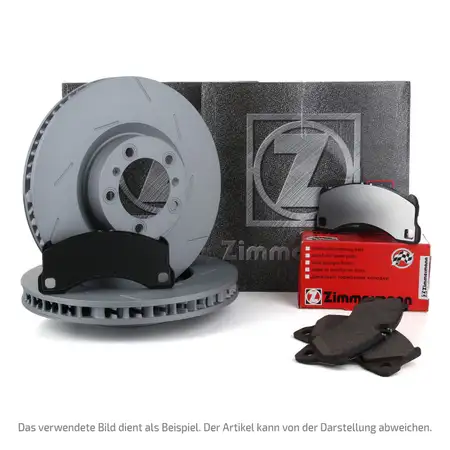

ZIMMERMANN Brake Discs + Pads + Wako for PORSCHE Panamera (971) PR-1LD/1LU (front)

ZIMMERMANN Brake Discs + Pads + Wako for PORSCHE Panamera (971) PR-1LD/1LU (front)

ZIMMERMANN Brake Discs + Pads + Wako for PORSCHE Panamera (971) PR-1LD/1LU (front)

ZIMMERMANN Brake Discs + Pads + Wako for PORSCHE Panamera (971) PR-1LD/1LU (front)

ZIMMERMANN Brake Discs + Pads + Wako for PORSCHE Panamera (971) PR-1LD/1LU (front)

ZIMMERMANN Brake Discs + Pads + Wako for PORSCHE Panamera (971) PR-1LD/1LU (front)

ZIMMERMANN Brake Discs + Pads + Wako for PORSCHE Panamera (971) PR-1LD/1LU (front)

ZIMMERMANN Brake Discs + Pads + Wako for PORSCHE Panamera (971) PR-1LD/1LU (front)

ZIMMERMANN

CARIPAR

Item No.: PKT652W889
Manufacturer: ZIMMERMANN, CARIPAR
part number: 460.4506.20, 460.4507.20, 25007.168.1, GBK 609

Items included:

1x Brake Disc Piece - ZIMMERMANN
1x Brake Disc Piece - ZIMMERMANN
1x Brake Pad Set, disc brake Set - ZIMMERMANN
2x Warning Contact, brake pad wear Piece - CARIPAR

item specifications

Bolt Hole Circle Ø [mm]: 130
Outer Diameter [mm]: 360
Surface: Coated
Component: Braking System
Brake Disc Type: internally vented
Brake Disc Type: slotted
Brake Caliper Colour: silver
Fitting Position: Front Axle Left
Rim Size [inch]: 18.0
for PR number: 1LD
for PR number: 1LU
Test Mark: ECE R90 APPROVED
Centering Diameter [mm]: 98
Quantity Unit: Piece
Rim Hole Number: 5
Hole Arrangement/Number: 7/5
Minimum thickness [mm]: 34
Processing: High-carbon
Brake Disc Thickness [mm]: 36
Weight [kg]: 13,1
directional:
Height [mm]: 68

reference numbers - for comparison

BREMBO - 09.E899.11 / 09E89911
PORSCHE - 971 615 301 F / 971615301F
PORSCHE - 971 615 301 F / 971615301F
PORSCHE - 971 615 301 L / 971615301L
PORSCHE - 971 615 301 L / 971615301L
SHW Performance - PFL39741
ZIMMERMANN - 4250238776482
ZIMMERMANN - 460.4506.20 / 460450620
ZIMMERMANN - 460.4506.52 / 460450652

item specifications

Bolt Hole Circle Ø [mm]: 130
Outer Diameter [mm]: 360
Surface: Coated
Component: Braking System
Brake Disc Type: internally vented
Brake Disc Type: slotted
Brake Caliper Colour: silver
Fitting Position: Front Axle Right
Rim Size [inch]: 18.0
for PR number: 1LU
for PR number: 1LD
Test Mark: ECE R90 APPROVED
Centering Diameter [mm]: 98
Quantity Unit: Piece
Rim Hole Number: 5
Hole Arrangement/Number: 7/5
Minimum thickness [mm]: 34
Processing: High-carbon
Brake Disc Thickness [mm]: 36
Weight [kg]: 13,1
directional:
Height [mm]: 68

reference numbers - for comparison

BREMBO - 09.E900.11 / 09E90011
PORSCHE - 971 615 302 F / 971615302F
PORSCHE - 971 615 302 F / 971615302F
PORSCHE - 971 615 302 L / 971615302L
PORSCHE - 971 615 302 L / 971615302L
SHW Performance - PFR39742
ZIMMERMANN - 4250238776499
ZIMMERMANN - 460.4507.20 / 460450720
ZIMMERMANN - 460.4507.52 / 460450752

item specifications

Component: Braking System
Width [mm]: 210
Fitting Position: Front Axle
Test Mark: ECE R90 APPROVED
WVA Number: 25007
Quantity Unit: Set
Supplementary Article/Supplementary Info: Photo corresponds to scope of supply
Thickness [mm]: 17
Height [mm]: 94
Brake System: BREMBO
Wear Warning Contact: prepared for wear warning indicator

reference numbers - for comparison

ATE - 13.0460-4852.2 / 13046048522
BREMBO - P 65 021 / P65021
BREMBO - P 65 021 / P65021
DELPHI - LP2117
HELLA PAGID - 8DB 355 015-801 / 8DB355015801
PORSCHE - 7P5 698 151 D / 7P5698151D
PORSCHE - 95B 698 151 AE / 95B698151AE
PORSCHE - 95B 698 151 AL / 95B698151AL
PORSCHE - 970 351 949 01 / 97035194901
PORSCHE - 970 351 949 04 / 97035194904
PORSCHE - 971 698 151 D / 971698151D
PORSCHE - 971 698 151 E / 971698151E
PORSCHE - 971 698 151 F / 971698151F
PORSCHE - 971 698 151 T / 971698151T
TEXTAR - 2500701
TRW - GDB2052
ZIMMERMANN - 25007
ZIMMERMANN - 25007.168.1 / 250071681
ZIMMERMANN - 25007.968.1 / 250079681
ZIMMERMANN - 4250238756804

item specifications

Component: Braking System
Fitting Position: Front Axle
Application: Lining Wear
Quantity Unit: Piece

reference numbers - for comparison

Name:

OTTO ZIMMERMANN GMBH

Website:

www.otto-zimmermann.de

E-Mail:

info@otto-zimmermann.de

Phone:

0049(0)7261 94514-0

Street, House no:

Am Leitzelbach 8

ZIP / City:

74889 Sinsheim - Duehren

Country:

Germany
