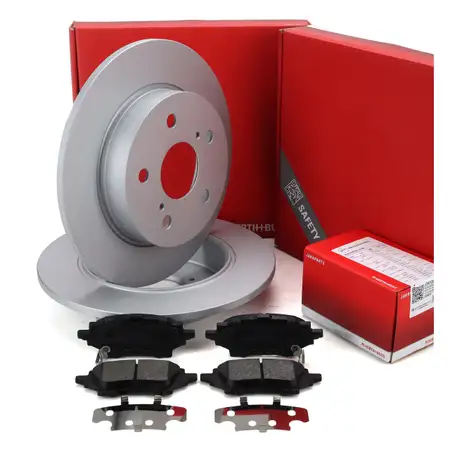

HERTH+BUSS Brake Discs + Brake Pads for TOYOTA Corolla E21 and SUZUKI Swace (Rear)

HERTH+BUSS Brake Discs + Brake Pads for TOYOTA Corolla E21 and SUZUKI Swace (Rear)

Item No.: PKT652W907
Manufacturer: HERTH+BUSS JAKOPARTS
part number: J3312082, J3612047

Items included:

2x Brake Disc Piece - HERTH+BUSS JAKOPARTS
1x Brake Pad Set, disc brake Set - HERTH+BUSS JAKOPARTS

item specifications

Surface: Coated
Bolt Hole Circle Ø [mm]: 114,3
Outer Diameter [mm]: 274
Component: Braking System
Number of Holes: 5
Brake Disc Type: solid
Wheel Hub Diameter [mm]: 62
Fitting Position: Rear Axle
Registration Type: ECE approved
Quantity Unit: Piece
Minimum thickness [mm]: 8,5
Brake Disc Thickness [mm]: 10
Height [mm]: 47,2
Required quantity: 2

reference numbers - for comparison

ATE - 24.0110-0425.1 / 24011004251
BLUE PRINT - ADBP430147
BOSCH - 0 986 479 H62 / 0986479H62
BOSCH - 0 986 479 H73 / 0986479H73
BREMBO - 08.E523.11 / 08E52311
DELPHI - BG5052C
FERODO - DDF3028C
HERTH+BUSS JAKOPARTS - J3312082
JURID - 563671JC
JURID - 563671JC-1 / 563671JC1
LEXUS - 42431-02320 / 4243102320
MAGNETI MARELLI - 360406210501
MEYLE - 30-15 523 0116/PD / 30155230116PD
OPTIMAL - BS-9994C / BS9994C
PAGID - 56211
RAICAM - RD01597
SUZUKI - T4243-10232 / T424310232
SUZUKI - T4243-10232 / T424310232
SUZUKI - T4243-10232-000 / T424310232000
SUZUKI - T4243-10232-000 / T424310232000
TEXTAR - 92321103
TOYOTA - 42431-02320 / 4243102320
TRW - DF6773
VALEO - 673678
ZIMMERMANN - 590.2856.20 / 590285620
febi bilstein - 180025

item specifications

Component: Braking System
Width 1 [mm]: 118,1
Fitting Position: Rear Axle
Registration Type: ECE approved
WVA Number: 26153
WVA Number: 26154
WVA Number: 26155
Quantity Unit: Set
Thickness [mm]: 15,7
Height 2 [mm]: 48,7
Width 2 [mm]: 118,1
Wear Warning Contact: with acoustic wear warning
Height 1 [mm]: 51

reference numbers - for comparison

ATE - 13.0460-5531.2 / 13046055312
ATE - 13.0470-5531.2 / 13047055312
BLUE PRINT - ADBP420098
BOSCH - 0 986 424 911 / 0986424911
BREMBO - P 83 178 / P83178
BREMBO - P 83 178 / P83178
BREMBO - P83178N
BREMBO - P83178N
DELPHI - LP3608
DELPHI - LP3876
DELPHI - LX0732
FERODO - FDB5293
FTE - 9005397
FTE - 9011273
HELLA - 8DB 355 040-221 / 8DB355040221
HELLA PAGID - 8DB 355 040-221 / 8DB355040221
HERTH+BUSS JAKOPARTS - 4029416440848
HERTH+BUSS JAKOPARTS - 4029416441012
HERTH+BUSS JAKOPARTS - J3612047
HERTH+BUSS JAKOPARTS - J3662052
HERTH+BUSS JAKOPARTS - J3662052
HERTH+BUSS JAKOPARTS - J3662056
HERTH+BUSS JAKOPARTS - J3662056
JURID - 574043J
LEXUS - 04466-02400 / 0446602400
LEXUS - 04466-02401 / 0446602401
LEXUS - 04466-F4010 / 04466F4010
LEXUS - 04466-K0000 / 04466K0000
LEXUS - 04466-K0001 / 04466K0001
MAGNETI MARELLI - 363916061216
MAZDA - 1M00-26-28Z / 1M002628Z
MEYLE - 025 224 3415 / 0252243415
OPTIMAL - BP-12833 / BP12833
PAGID - T2853
PAGID - T2853
QUICK BRAKE - 109-0084 / 1090084
QUICK BRAKE - 109-0156 / 1090156
RAICAM - RA.1252.0 / RA12520
SKF - VKBP 91441 A / VKBP91441A
SUZUKI - T0446-60240 / T044660240
SUZUKI - T0446-60240 / T044660240
SUZUKI - T0446-60240-000 / T044660240000
SUZUKI - T0446-60240-000 / T044660240000
SUZUKI - T0446-60240-100 / T044660240100
SUZUKI - T0446-60240-100 / T044660240100
TEXTAR - 2615301
TEXTAR - 82015200
TEXTAR - 82555200
TOYOTA - 04466-02400 / 0446602400
TOYOTA - 04466-02401 / 0446602401
TOYOTA - 04466-F4010 / 04466F4010
TOYOTA - 04466-K0000 / 04466K0000
TOYOTA - 04466-K0001 / 04466K0001
TRW - GDB2344
VALEO - 302536
VALEO - 601854
VALEO - 610477
VALEO - 671716
VALEO - 672146
ZIMMERMANN - 26153.160.2 / 261531602
febi bilstein - 180129
