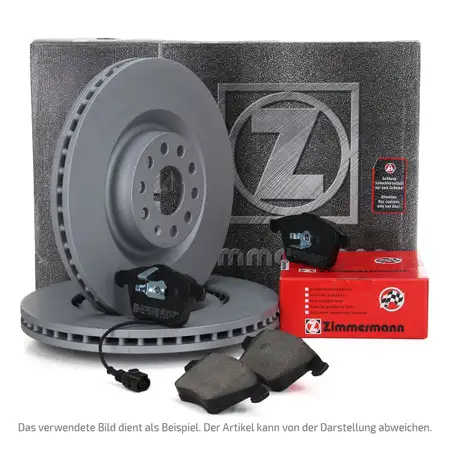

ZIMMERMANN Brake Discs + Pads (Wako) for CITROEN Jumper, FIAT Ducato, and PEUGEOT 16t (Front)

ZIMMERMANN Brake Discs + Pads (Wako) for CITROEN Jumper, FIAT Ducato, and PEUGEOT 16t (Front)

ZIMMERMANN Brake Discs + Pads (Wako) for CITROEN Jumper, FIAT Ducato, and PEUGEOT 16t (Front)

ZIMMERMANN Brake Discs + Pads (Wako) for CITROEN Jumper, FIAT Ducato, and PEUGEOT 16t (Front)

ZIMMERMANN Brake Discs + Pads (Wako) for CITROEN Jumper, FIAT Ducato, and PEUGEOT 16t (Front)

ZIMMERMANN Brake Discs + Pads (Wako) for CITROEN Jumper, FIAT Ducato, and PEUGEOT 16t (Front)

ZIMMERMANN Brake Discs + Pads (Wako) for CITROEN Jumper, FIAT Ducato, and PEUGEOT 16t (Front)

ZIMMERMANN Brake Discs + Pads (Wako) for CITROEN Jumper, FIAT Ducato, and PEUGEOT 16t (Front)

ZIMMERMANN

Item No.: PKT462W829
Manufacturer: ZIMMERMANN
part number: 180.3011.20, 24466.190.1

Items included:

2x Brake Disc Piece - ZIMMERMANN 180.3011.20
1x Brake Pad Set, disc brake Set - ZIMMERMANN 24466.190.1

item specifications

Component: Braking System
Quantity Unit: Piece
Brake Disc Type: internally vented
Fitting Position: Front Axle
Outer Diameter [mm]: 300
Hole Arrangement/Number: 7/5
Surface: Coated
Bolt Hole Circle Ø [mm]: 130
Height [mm]: 66
Brake Disc Thickness [mm]: 24
Minimum thickness [mm]: 21,9
Weight [kg]: 8,24
Centering Diameter [mm]: 80
Rim Hole Number: 5
Test Mark: ECE R90 APPROVED
Registration Type: permitted for vehicles of class M2/N2

reference numbers - for comparison

ATE - 24.0124-0138.1 / 24012401381
BOSCH - 0 986 478 842 / 0986478842
BREMBO - 09.5906.14 / 09590614
BREMBO - 09.8932.10 / 09893210
CITROEN / PEUGEOT - 1307356080
CITROEN / PEUGEOT - 1607872280
CITROEN / PEUGEOT - 4246.K2 / 4246K2
CITROEN / PEUGEOT - 4246.K3 / 4246K3
CITROEN / PEUGEOT - 4246.Y3 / 4246Y3
CITROEN / PEUGEOT - 4246.Y5 / 4246Y5
CITROEN / PEUGEOT - 4249.35 / 424935
CITROEN / PEUGEOT - 4249.36 / 424936
CITROEN / PEUGEOT - 4249.A0 / 4249A0
CITROEN / PEUGEOT - 4249.G5 / 4249G5
CITROEN / PEUGEOT - 4249.H2 / 4249H2
CITROEN / PEUGEOT - 4249.H9 / 4249H9
ECORA - 4250238762225
FERODO - DDF1171C
FIAT - 468 06 234 / 46806234
FIAT - 50290476
FIAT - 517 28 378 / 51728378
FIAT - 517 40 247 / 51740247
FIAT - 518 58 363 / 51858363
FIAT - 717 39 637 / 71739637
HELLA PAGID - 8DD 355 109-021 / 8DD355109021
HELLA PAGID - 8DD 355 127-821 / 8DD355127821
JURID - 561969JC
JURID - 563021J
RAICAM - RD00125
RAICAM - RD01069
TEXTAR - 92116703
TRW - DF2722
ZIMMERMANN - 180.3011.20 / 180301120
ZIMMERMANN - 180.3011.52 / 180301152

item specifications

Component: Braking System
Quantity Unit: Set
WVA Number: 24466
Fitting Position: Front Axle
Wear Warning Contact: incl. wear warning contact
Supplementary Article/Supplementary Info: Photo corresponds to scope of supply
Supplementary Article/Supplementary Info 2: with bolts/screws
Thickness [mm]: 19
Width [mm]: 170
Height [mm]: 69
Brake System: BREMBO
Test Mark: ECE R90 APPROVED
Number of wear indicators [per axle]: 2

reference numbers - for comparison

ATE - 13.0460-4810.2 / 13046048102
ATE - 13.0460-4811.2 / 13046048112
BOSCH - 0 986 494 109 / 0986494109
BREMBO - P 61 093 / P61093
BREMBO - P 61 093 / P61093
BREMBO - P 61 094 / P61094
BREMBO - P 61 094 / P61094
CITROEN / PEUGEOT - 16 124 336 80 / 1612433680
CITROEN / PEUGEOT - 16 124 337 80 / 1612433780
CITROEN / PEUGEOT - 16 172 845 80 / 1617284580
CITROEN / PEUGEOT - 16 736 035 80 / 1673603580
CITROEN / PEUGEOT - 16 736 036 80 / 1673603680
CITROEN / PEUGEOT - 16 736 037 80 / 1673603780
CITROEN / PEUGEOT - 16 759 897 80 / 1675989780
CITROEN / PEUGEOT - 425373
CITROEN / PEUGEOT - 425374
CITROEN / PEUGEOT - 425375
CITROEN / PEUGEOT - 425376
CITROEN / PEUGEOT - 425463
CITROEN / PEUGEOT - 425464
ECORA - 4250238740599
FERODO - FSL1925
FERODO - FVR1926
FIAT - 77364015
FIAT - 77364161
FIAT - 77364318
FIAT - 77364319
FIAT - 77366021
FIAT - 77366023
FIAT - 77366024
FIAT - 77367090
FIAT - 77367093
HELLA PAGID - 8DB 355 019-901 / 8DB355019901
JURID - 573261J
JURID - 573849J
RAICAM - 886.0 / 8860
TEXTAR - 2446701
TEXTAR - 2446703
TRW - GDB1703
ZIMMERMANN - 24466
ZIMMERMANN - 24466.190.1 / 244661901
ZIMMERMANN - 24467

manufacturer	model	type	power	capacity	constr. date	kba	limitations
