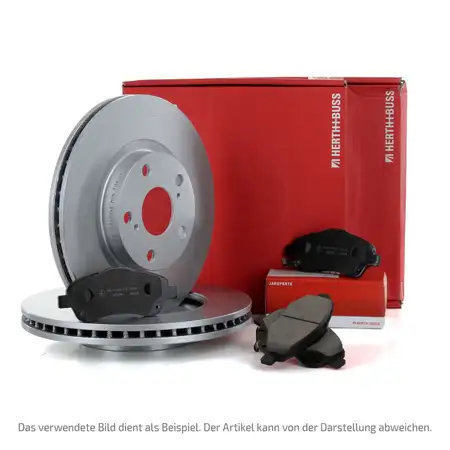

HERTH+BUSS JAKPOARTS Brake Discs + Brake Pads for MITSUBISHI i HA_ MiEV (Front)

Item No.: PKT572W464

HERTH+BUSS JAKPOARTS Brake Discs + Brake Pads for MITSUBISHI i HA_ MiEV (Front)

Item No.: PKT572W464

Items included:

2x Brake Disc Piece - HERTH+BUSS JAKOPARTS
1x Brake Pad Set, disc brake Set - HERTH+BUSS JAKOPARTS
1x Accessory Kit, disc brake pad Set - HERTH+BUSS JAKOPARTS

Brake Disc

item specifications

Surface: Coated
Bolt Hole Circle Ø [mm]: 100
Outer Diameter [mm]: 257
No. of holes 1: 2
Component: Braking System
Number of Holes: 4
Brake Disc Type: internally vented
Fitting Position: Front Axle
Registration Type: ECE approved
Quantity Unit: Piece
Brake Disc Thickness [mm]: 17
Hub Diameter [mm]: 64
Height [mm]: 38,4
Inner Diameter [mm]: 123,4
Required quantity: 2

reference numbers - for comparison

ATE - 24.0117-0110.1 / 24011701101
ATE - 417110
BLUE PRINT - ADC443128
BOSCH - 0 986 AB5 315 / 0986AB5315
BREMBO - 09.C175.10 / 09C17510
BREMBO - 09.C175.11 / 09C17511
BREMBO - 09.D151.11 / 09D15111
CITROEN - 16 120 907 80 / 1612090780
CITROEN - 4249 L5 / 4249L5
CITROEN / PEUGEOT - 16 120 907 80 / 1612090780
CITROEN / PEUGEOT - 4249 L5 / 4249L5
DELPHI - BG4299
DELPHI - BG4820C
EUROREPAR - 1681169680
FERODO - DDF2815C
HELLA - 8DD 355 125-241 / 8DD355125241
HELLA PAGID - 8DD 355 125-241 / 8DD355125241
HERTH+BUSS JAKOPARTS - 4029416350215
HERTH+BUSS JAKOPARTS - J3305004
JURID - 563312JC
MITSUBISHI - 4615A093
MITSUBISHI - 4615A219
MITSUBISHI - MN113684
OPTIMAL - BS-9742C / BS9742C
PAGID - 55825
PEUGEOT - 16 120 907 80 / 1612090780
PEUGEOT - 4249 L5 / 4249L5
TEXTAR - 92282503
TRW - DF6561
TRW - DF8040
VALEO - 672707
ZIMMERMANN - 440.3136.20 / 440313620
febi bilstein - 170600

Brake Pad Set, disc brake

item specifications

Component: Braking System
Width [mm]: 108,2
Thickness [mm]: 14,5
Fitting Position: Front Axle
Height [mm]: 45,2
Registration Type: ECE approved
WVA Number: 24423
Quantity Unit: Set

reference numbers - for comparison

ATE - 13.0460-5621.2 / 13046056212
ATE - 605621
BLUE PRINT - ADK84229
BOSCH - 0 986 494 700 / 0986494700
BOSCH - 0 986 AB2 768 / 0986AB2768
BOSCH - 0 986 AB4 410 / 0986AB4410
BOSCH - 0 986 TB2 930 / 0986TB2930
BREMBO - P 54 049 / P54049
BREMBO - P 54 049 / P54049
BREMBO - P 61 108 / P61108
BREMBO - P 61 108 / P61108
BREMBO - P54049N
BREMBO - P54049N
BREMBO - P61108N
BREMBO - P61108N
CHAMPION - 572611CH
CITROEN - 16 062 256 80 / 1606225680
CITROEN - 16 102 756 80 / 1610275680
DELPHI - LP2258
DELPHI - LP5010EV
EUROREPAR - 1619790180
FERODO - FDB1812
FERODO - FSL1812
FTE - 9001692
FTE - 9001700
FTE - BL1842A2
FTE - BL2540A1
FTE - BL2540B1
HELLA - 8DB 355 015-731 / 8DB355015731
HELLA - 8DB 355 016-111 / 8DB355016111
HELLA - 8DB 355 039-681 / 8DB355039681
HELLA - 8DB 355 039-691 / 8DB355039691
HELLA PAGID - 8DB 355 015-731 / 8DB355015731
HELLA PAGID - 8DB 355 016-111 / 8DB355016111
HELLA PAGID - 8DB 355 039-681 / 8DB355039681
HELLA PAGID - 8DB 355 039-691 / 8DB355039691
HERTH+BUSS JAKOPARTS - J3608032
JURID - 572471J
JURID - 572611J
MAGNETI MARELLI - 363700202104
MAGNETI MARELLI - 363700454049
MAGNETI MARELLI - 363700461108
MAGNETI MARELLI - 363802161035
MAGNETI MARELLI - 363916061119
MAGNETI MARELLI - 363916061169
MAGNETI MARELLI - 600000099500
MAGNETI MARELLI - J3608032
MAGNETI MARELLI - J3608032
MAGNETI MARELLI - P54049MM
MAGNETI MARELLI - P54049MM
MAGNETI MARELLI - P61108MM
MAGNETI MARELLI - P61108MM
MAGNETI MARELLI - PF1119
MAGNETI MARELLI - PF1169
METZGER - 1170771
METZGER - 119900
MITSUBISHI - 4605A340
MITSUBISHI - 4605A953
MITSUBISHI - 4605A954
MITSUBISHI - 4605B215
MITSUBISHI - 4605B216
OPTIMAL - 12415
OPTIMAL - BP-12415 / BP12415
PAGID - T2046
PAGID - T2046
PAGID - T2104
PAGID - T2104
PEUGEOT - 16 062 256 80 / 1606225680
PEUGEOT - 16 102 756 80 / 1610275680
RAICAM - RA.1041.1 / RA10411
RAICAM - RA10410
SUZUKI - 55210-76G01-000 / 5521076G01000
SUZUKI - 55210M79F00
SUZUKI - 55810-46G10 / 5581046G10
SUZUKI - 55810-76G01 / 5581076G01
SUZUKI - 55810-76G01-000 / 5581076G01000
SUZUKI - 55810-76G02 / 5581076G02
SUZUKI - 55810-76G02-000 / 5581076G02000
SUZUKI - 55810-76G03 / 5581076G03
SUZUKI - 55810-76G03-000 / 5581076G03000
SUZUKI - 55810-76G10 / 5581076G10
SUZUKI - 55810-76G10-000 / 5581076G10000
SUZUKI - 55810-76G10-PPS / 5581076G10PPS
SUZUKI - 55810-76G50 / 5581076G50
SUZUKI - 55810-76G50-000 / 5581076G50000
SUZUKI - 55810-76G50-L00 / 5581076G50L00
SUZUKI - 55810M76G01
SUZUKI - 55810M76G01-000 / 55810M76G01000
SUZUKI - 55810M79F10
SUZUKI - 55810M79F10-000 / 55810M79F10000
TEXTAR - 24423 147 0 4 / 2442314704
TEXTAR - 24423 147 0 5 / 2442314705
TEXTAR - 2442301
TEXTAR - 2442302
TRW - GDB1940
TRW - GDB1940BTE
TRW - GDB3411
TRW - GDB7128
VALEO - 601323
VALEO - 606866
VALEO - 671289
VALEO - 671323
ZIMMERMANN - 24423.150.1 / 244231501
febi bilstein - 16740

Accessory Kit, disc brake pad

item specifications

Component: Braking System
Fitting Position: Front Axle
Quantity: 4
Application: Disc Brake Pad
Quantity Unit: Set

reference numbers - for comparison

HERTH+BUSS JAKOPARTS - 4029416220105
HERTH+BUSS JAKOPARTS - J3668009
METZGER - Z1677
METZGER - Z1677
QUICK BRAKE - 109-1677 / 1091677
TEXTAR - 82076700
TRW - PFK532
