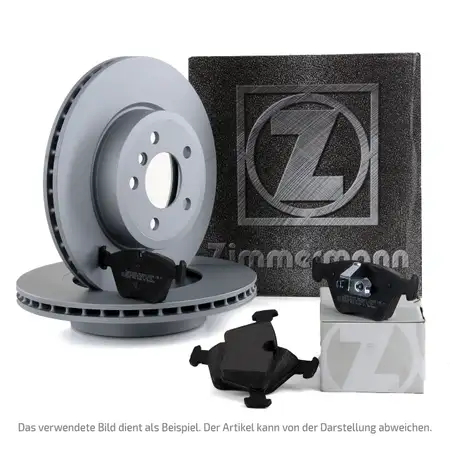

ZIMMERMANN Brake Discs + pb:z Brake Pads for PORSCHE 928 4.7, 5.0, 944 2.5 Turbo (Front)

ZIMMERMANN Brake Discs + pb:z Brake Pads for PORSCHE 928 4.7, 5.0, 944 2.5 Turbo (Front)

Item No.: PKT162W529
Manufacturer: ZIMMERMANN
part number: 460.1513.20, 460.1514.20, 20953.175.9

Items included:

1x Brake Disc Piece - ZIMMERMANN
1x Brake Disc Piece - ZIMMERMANN
1x Brake Pad Set, disc brake Set - ZIMMERMANN

item specifications

Bolt Hole Circle Ø [mm]: 130
Outer Diameter [mm]: 304
Surface: Coated
Component: Braking System
Brake Disc Type: internally vented
Fitting Position: Front Axle Left
Centering Diameter [mm]: 103
Quantity Unit: Piece
Rim Hole Number: 5
Hole Arrangement/Number: 9/5
Minimum thickness [mm]: 30
Brake Disc Thickness [mm]: 32
Weight [kg]: 8,1
Height [mm]: 77

reference numbers - for comparison

ATE - 24013201511
ATE - 432151
AUDI - 8A0615301B
AUDI - 92835104303
AUDI - 92835104304
AUDI - 92835104360
BOSCH - 0986478408
BOSCH - BD339
HELLA - 355101551
HELLA - 8DD355101551
HELLA PAGID - 355101551
HELLA PAGID - 8DD355101551
JURID - 561755J
JURID - 8290339
OPTIMAL - BS8890
OPTIMAL - BS8890C
PAGID - 52614
PORSCHE - 8A0615301B
PORSCHE - 928 351 043 60 / 92835104360
PORSCHE - 928 351 043 61 / 92835104361
PORSCHE - 92835104303
PORSCHE - 92835104304
PORSCHE - 92835104360
SEAT - 8A0615301B
SEBRO - 5199
SKODA - 8A0615301B
TEXTAR - 98200039901
VOLKSWAGEN - 8A0615301B
ZIMMERMANN - 4250238745259
ZIMMERMANN - 460.1513.20 / 460151320
ZIMMERMANN - 460151300
ZIMMERMANN - 460151320
ZIMMERMANN - 460151352
ZIMMERMANN - 460151370
ZIMMERMANN - 460151372
ZIMMERMANN - 460151375

item specifications

Bolt Hole Circle Ø [mm]: 130
Outer Diameter [mm]: 304
Surface: Coated
Component: Braking System
Brake Disc Type: internally vented
Fitting Position: Front Axle Right
Centering Diameter [mm]: 103
Quantity Unit: Piece
Rim Hole Number: 5
Hole Arrangement/Number: 9/5
Minimum thickness [mm]: 30
Brake Disc Thickness [mm]: 32
Weight [kg]: 8,1
Height [mm]: 77

reference numbers - for comparison

ATE - 24013201501
ATE - 432150
AUDI - 8A0615302B
AUDI - 92835104403
AUDI - 92835104404
AUDI - 92835104460
BOSCH - 0986478409
BOSCH - BD340
HELLA - 355101541
HELLA - 8DD355101541
HELLA PAGID - 355101541
HELLA PAGID - 8DD355101541
JURID - 561756J
JURID - 8290339
OPTIMAL - BS8888
OPTIMAL - BS8888C
PAGID - 52615
PORSCHE - 8A0615302B
PORSCHE - 928 351 044 60 / 92835104460
PORSCHE - 92835104403
PORSCHE - 92835104404
PORSCHE - 92835104460
SEAT - 8A0615302B
SEBRO - 5198
SKODA - 8A0615302B
TEXTAR - 98200039801
VOLKSWAGEN - 8A0615302B
ZIMMERMANN - 4250238745327
ZIMMERMANN - 460.1514.20 / 460151420
ZIMMERMANN - 460151400
ZIMMERMANN - 460151420
ZIMMERMANN - 460151452
ZIMMERMANN - 460151470
ZIMMERMANN - 460151472
ZIMMERMANN - 460151475

item specifications

Component: Braking System
Width [mm]: 132
Fitting Position: Front and Rear
Test Mark: ECE R90 APPROVED
WVA Number: 20953
Quantity Unit: Set
Supplementary Article/Supplementary Info: Photo corresponds to scope of supply
Supplementary Article/Supplementary Info 2: with anti-squeak plate
Version: pb:z
Thickness [mm]: 18
Height [mm]: 71
Wear Warning Contact: prepared for wear warning indicator

reference numbers - for comparison

ATE - 13046040172
ATE - 604017
AUDI - 8A0615115F
AUDI - 8A0698151D
AUDI - 8A0698151E
AUDI - 8A0698151F
BOSCH - 0986424119
BOSCH - 60253
BOSCH - BP051
BOSCH - DB439UL
BREMBO - 07B31412
BREMBO - P65005
BREMBO - P65005
BREMBO - P65005N
BREMBO - P65005N
FERODO - FDB560
FTE - BL1188A2
HELLA - 355007701
HELLA - 8DB355007701
HELLA PAGID - 355007701
HELLA PAGID - 8DB355007701
JURID - 571534J
MAGNETI MARELLI - 363700201074
MAGNETI MARELLI - 363700465005
MAGNETI MARELLI - T1074MM
MAGNETI MARELLI - T1074MM
PAGID - T1074
PAGID - T1074
PAGID - T1074N
PAGID - T1074N
PORSCHE - 8A0615115F
PORSCHE - 8A0698151D
PORSCHE - 8A0698151E
PORSCHE - 8A0698151F
PORSCHE - 92835139304
PORSCHE - 92835193005
PORSCHE - 92835193006
PORSCHE - 92835193016
PORSCHE - 92835193900
PORSCHE - 92835193901
PORSCHE - 92835193902
PORSCHE - 92835193903
PORSCHE - 92835193904
PORSCHE - 94435193902
PORSCHE - 959 351 949 03 / 95935194903
PORSCHE - 95935194901
PORSCHE - 95935194903
PORSCHE - 965 351 939 02 / 96535193902
PORSCHE - 965 351 939 03 / 96535193903
PORSCHE - 96535193000
PORSCHE - 96535193003
PORSCHE - 96535193004
PORSCHE - 96535193900
PORSCHE - 96535193901
PORSCHE - 96535193902
PORSCHE - 96535193903
PORSCHE - 96535193904
PORSCHE - 993 351 939 01 / 99335193901
PORSCHE - 993 351 939 05 / 99335193905
PORSCHE - 993 351 949 05 / 99335194905
PORSCHE - 99309435161
PORSCHE - 99309435161F
PORSCHE - 99309435166
PORSCHE - 99335193001
PORSCHE - 99335193060
PORSCHE - 99335193901
PORSCHE - 99335193904
PORSCHE - 99335193905
PORSCHE - 99335293004
SEAT - 8A0615115F
SEAT - 8A0698151D
SEAT - 8A0698151E
SEAT - 8A0698151F
SKODA - 8A0615115F
SKODA - 8A0698151D
SKODA - 8A0698151E
SKODA - 8A0698151F
TRW - GDB7701
TRW - GDB966
VOLKSWAGEN - 8A0615115F
VOLKSWAGEN - 8A0698151D
VOLKSWAGEN - 8A0698151E
VOLKSWAGEN - 8A0698151F
ZIMMERMANN - 20953
ZIMMERMANN - 20953 175 0 4 / 2095317504
ZIMMERMANN - 20953.175.9 / 209531759
ZIMMERMANN - 4250238747888
ZIMMERMANN - 7262D372
ZIMMERMANN - 7327D447
febi bilstein - 16518

Name:

OTTO ZIMMERMANN GMBH

Website:

www.otto-zimmermann.de

E-Mail:

info@otto-zimmermann.de

Phone:

0049(0)7261 94514-0

Street, House no:

Am Leitzelbach 8

ZIP / City:

74889 Sinsheim - Duehren

Country:

Germany
