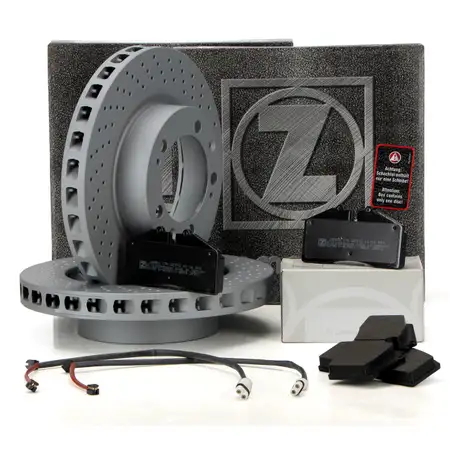

ZIMMERMANN brake discs + pb:z pads + Wako for PORSCHE 993 3.6/3.8 Carrera (front)

ZIMMERMANN brake discs + pb:z pads + Wako for PORSCHE 993 3.6/3.8 Carrera (front)

Item No.: PKT062W682
Manufacturer: ZIMMERMANN, CARIPAR
part number: 460.1520.20, 460.1521.20, 20953.175.9, GBK 718

Items included:

1x Brake Disc Piece - ZIMMERMANN
1x Brake Disc Piece - ZIMMERMANN
1x Brake Pad Set, disc brake Set - ZIMMERMANN
2x Warning Contact, brake pad wear Piece - CARIPAR

item specifications

Bolt Hole Circle Ø [mm]: 130
Outer Diameter [mm]: 304
Surface: Coated
Component: Braking System
Brake Disc Type: internally vented
Brake Disc Type: Perforated
Fitting Position: Front Axle Left
Centering Diameter [mm]: 103
Quantity Unit: Piece
Rim Hole Number: 5
Hole Arrangement/Number: 9/5
Minimum thickness [mm]: 30
Brake Disc Thickness [mm]: 32
Weight [kg]: 8,4
Height [mm]: 72

reference numbers - for comparison

ATE - 24013201421
ATE - 432142
BOSCH - 0986478599
BOSCH - BD519
BREMBO - 09842010
BREMBO - 09842011
BREMBO - 09842014
FERODO - DDF1592
FERODO - DDF15921
FERODO - DDF1592LC1
HELLA - 355104731
HELLA - 355126112
HELLA - 8DD355104731
HELLA - 8DD355126112
HELLA PAGID - 355104731
HELLA PAGID - 355126112
HELLA PAGID - 8DD355104731
HELLA PAGID - 8DD355126112
JP Group - 1663101270
JURID - 563009JC1
MEYLE - 4835210009PD
MEYLE - MBD2143PD
OPTIMAL - BS8542
OPTIMAL - BS8542C
PAGID - 50208
PORSCHE - 993 351 043 01 / 99335104301
PORSCHE - 99335104301
TEXTAR - 92076005
TEXTAR - 98200076001
TRW - DF6466S
ZIMMERMANN - 4250238745266
ZIMMERMANN - 460.1520.20 / 460152020
ZIMMERMANN - 460152000
ZIMMERMANN - 460152020
ZIMMERMANN - 460152070
ZIMMERMANN - 460152072
ZIMMERMANN - 460152075

item specifications

Bolt Hole Circle Ø [mm]: 130
Outer Diameter [mm]: 304
Surface: Coated
Component: Braking System
Brake Disc Type: internally vented
Brake Disc Type: Perforated
Fitting Position: Front Axle Right
Centering Diameter [mm]: 103
Quantity Unit: Piece
Rim Hole Number: 5
Hole Arrangement/Number: 9/5
Minimum thickness [mm]: 30
Brake Disc Thickness [mm]: 32
Weight [kg]: 8,4
Height [mm]: 72

reference numbers - for comparison

ATE - 24013201431
ATE - 432143
BOSCH - 0986478597
BOSCH - BD517
BREMBO - 09842110
BREMBO - 09842111
BREMBO - 09842114
FERODO - DDF15921
FERODO - DDF1592RC1
HELLA - 355104741
HELLA - 355126122
HELLA - 8DD355104741
HELLA - 8DD355126122
HELLA PAGID - 355104741
HELLA PAGID - 355126122
HELLA PAGID - 8DD355104741
HELLA PAGID - 8DD355126122
JP Group - 1663101280
JURID - 563010JC1
MEYLE - 4835210010PD
MEYLE - MBD2144PD
OPTIMAL - BS8540
OPTIMAL - BS8540C
PAGID - 50209
PORSCHE - 993 351 044 01 / 99335104401
PORSCHE - 99335104401
TEXTAR - 92076105
TEXTAR - 98200076101
TRW - DF6466S
TRW - DF6467S
ZIMMERMANN - 4250238745334
ZIMMERMANN - 460.1521.20 / 460152120
ZIMMERMANN - 460152100
ZIMMERMANN - 460152120
ZIMMERMANN - 460152170
ZIMMERMANN - 460152172
ZIMMERMANN - 460152175

item specifications

Component: Braking System
Width [mm]: 132
Fitting Position: Front and Rear
Test Mark: ECE R90 APPROVED
WVA Number: 20953
Quantity Unit: Set
Supplementary Article/Supplementary Info: Photo corresponds to scope of supply
Supplementary Article/Supplementary Info 2: with anti-squeak plate
Version: pb:z
Thickness [mm]: 18
Height [mm]: 71
Wear Warning Contact: prepared for wear warning indicator

reference numbers - for comparison

ATE - 13046040172
ATE - 604017
AUDI - 8A0615115F
AUDI - 8A0698151D
AUDI - 8A0698151E
AUDI - 8A0698151F
BOSCH - 0986424119
BOSCH - 60253
BOSCH - BP051
BOSCH - DB439UL
BREMBO - 07B31412
BREMBO - P65005
BREMBO - P65005
BREMBO - P65005N
BREMBO - P65005N
FERODO - FDB560
FTE - BL1188A2
HELLA - 355007701
HELLA - 8DB355007701
HELLA PAGID - 355007701
HELLA PAGID - 8DB355007701
JURID - 571534J
MAGNETI MARELLI - 363700201074
MAGNETI MARELLI - 363700465005
MAGNETI MARELLI - T1074MM
MAGNETI MARELLI - T1074MM
PAGID - T1074
PAGID - T1074
PAGID - T1074N
PAGID - T1074N
PORSCHE - 8A0615115F
PORSCHE - 8A0698151D
PORSCHE - 8A0698151E
PORSCHE - 8A0698151F
PORSCHE - 92835139304
PORSCHE - 92835193005
PORSCHE - 92835193006
PORSCHE - 92835193016
PORSCHE - 92835193900
PORSCHE - 92835193901
PORSCHE - 92835193902
PORSCHE - 92835193903
PORSCHE - 92835193904
PORSCHE - 94435193902
PORSCHE - 959 351 949 03 / 95935194903
PORSCHE - 95935194901
PORSCHE - 95935194903
PORSCHE - 965 351 939 02 / 96535193902
PORSCHE - 965 351 939 03 / 96535193903
PORSCHE - 96535193000
PORSCHE - 96535193003
PORSCHE - 96535193004
PORSCHE - 96535193900
PORSCHE - 96535193901
PORSCHE - 96535193902
PORSCHE - 96535193903
PORSCHE - 96535193904
PORSCHE - 993 351 939 01 / 99335193901
PORSCHE - 993 351 939 05 / 99335193905
PORSCHE - 993 351 949 05 / 99335194905
PORSCHE - 99309435161
PORSCHE - 99309435161F
PORSCHE - 99309435166
PORSCHE - 99335193001
PORSCHE - 99335193060
PORSCHE - 99335193901
PORSCHE - 99335193904
PORSCHE - 99335193905
PORSCHE - 99335293004
SEAT - 8A0615115F
SEAT - 8A0698151D
SEAT - 8A0698151E
SEAT - 8A0698151F
SKODA - 8A0615115F
SKODA - 8A0698151D
SKODA - 8A0698151E
SKODA - 8A0698151F
TRW - GDB7701
TRW - GDB966
VOLKSWAGEN - 8A0615115F
VOLKSWAGEN - 8A0698151D
VOLKSWAGEN - 8A0698151E
VOLKSWAGEN - 8A0698151F
ZIMMERMANN - 20953
ZIMMERMANN - 20953 175 0 4 / 2095317504
ZIMMERMANN - 20953.175.9 / 209531759
ZIMMERMANN - 4250238747888
ZIMMERMANN - 7262D372
ZIMMERMANN - 7327D447
febi bilstein - 16518

item specifications

Component: Braking System
Fitting Position: Front Axle
Application: Lining Wear
Warning Contact Length [mm]: 515
Quantity Unit: Piece

reference numbers - for comparison

ATE - 24.8190-0917.2 / 24819009172
ATE - 24819009172
ATE - 620917
BOSCH - 1987474991
BREMBO - A 00 328 / A00328
BREMBO - A 00 328 / A00328
BREMBO - A00328
BREMBO - A00328
Caripar - GBK 718 / GBK718
DELPHI - LZ0410
FERODO - FWI341
FERODO - FWI341
FTE - BZ1086WSET
HELLA - 355250311
HELLA - 8DK355250311
HELLA PAGID - 355250311
HELLA PAGID - 8DK 355 250-311 / 8DK355250311
HELLA PAGID - 8DK355250311
JURID - 581325
JURID - 581325
MAGNETI MARELLI - 363700168028
MAGNETI MARELLI - 363700400328
MAGNETI MARELLI - P8028MM
MAGNETI MARELLI - P8028MM
METZGER - 1190016
OPTIMAL - WKT50178K
PAGID - P8028
PAGID - P8028
PAGID - P8028N
PAGID - P8028N
PORSCHE - 964 612 363 01 / 96461236301
PORSCHE - 964 612 363 02 / 96461236302
PORSCHE - 96461221100
PORSCHE - 96461236300
PORSCHE - 96461236301
PORSCHE - 96461236302
QUICK BRAKE - WS0338A
TEXTAR - 98014400
TEXTAR - 98014410
TRW - GIC260
TRW - GIC260
febi bilstein - 34073
