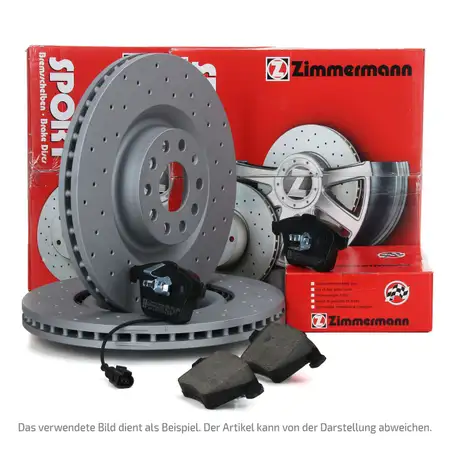

Zimmermann SPORT brake discs + pads + Wako for AUDI A3 8P, VW Golf 5, 6, 7 (front)

Zimmermann SPORT brake discs + pads + Wako for AUDI A3 8P, VW Golf 5, 6, 7 (front)

Item No.: PKT062W107
Manufacturer: ZIMMERMANN
part number: 100.3300.52, 23587.200.1

Items included:

2x Brake Disc Piece - ZIMMERMANN 100.3300.52
1x Brake Pad Set, disc brake Set - ZIMMERMANN 23587.200.1

item specifications

Component: Braking System
Quantity Unit: Piece
Brake Disc Type: internally vented
Brake Disc Type: Perforated
Fitting Position: Front Axle
Outer Diameter [mm]: 312
Hole Arrangement/Number: 10/5
Surface: Coated
Version: Sport
Bolt Hole Circle Ø [mm]: 112
Height [mm]: 50
Brake Disc Thickness [mm]: 25
Minimum thickness [mm]: 22
Machining: High-carbon
Weight [kg]: 8,3
Centering Diameter [mm]: 65
Rim Hole Number: 5
Test Mark: ECE R90 APPROVED

reference numbers - for comparison

ATE - 24.0125-0158.1 / 24012501581
ATE - 24.0325-0158.1 / 24032501581
BOSCH - 0 986 479 058 / 0986479058
BOSCH - 0 986 479 932 / 0986479932
BOSCH - 0 986 479 C29 / 0986479C29
BREMBO - 09.9772.11 / 09977211
BREMBO - 09.9772.1S / 0997721S
BREMBO - 09.9772.1X / 0997721X
BREMBO - 09.9772.75 / 09977275
BREMBO - 59.E114.37 / 59E11437
ECORA - 4250238748465
FERODO - DDF1305C
FORD - 2 631 432 / 2631432
FORD - N3CZ-1125-C / N3CZ1125C
FORD - N3CZ-1125-C / N3CZ1125C
HELLA PAGID - 8DD 355 109-521 / 8DD355109521
HELLA PAGID - 8DD 355 127-971 / 8DD355127971
HERTH+BUSS JAKOPARTS - J3300810
HERTH+BUSS JAKOPARTS - J3300810
JURID - 562387JC-1 / 562387JC1
RAICAM - RD01121
TEXTAR - 92120505
TRW - DF4464S
VAG - 1K0 615 301 AA / 1K0615301AA
VAG - 1KD 615 301 D / 1KD615301D
VAG - 3CD 615 301 / 3CD615301
VAG - 561 615 301 / 561615301
VAG - 561 615 301 A / 561615301A
VAG - 561 615 301 B / 561615301B
VAG - 5C0 615 301 B / 5C0615301B
VAG - 5C0 615 301 E / 5C0615301E
VAG - 5Q0 615 301 F / 5Q0615301F
VAG - 5QM 615 301 A / 5QM615301A
VAG - JZW 615 301 H / JZW615301H
VAG - L1KD 615 301 D / L1KD615301D
VAG - L1KD 615 301 D / L1KD615301D
VAG - L3CD 615 301 / L3CD615301
VAG - L3CD 615 301 / L3CD615301
ZIMMERMANN - 100.3300.20 / 100330020
ZIMMERMANN - 100.3300.52 / 100330052
ZIMMERMANN - 100.3300.53 / 100330053

item specifications

Component: Braking System
Quantity Unit: Set
WVA Number: 23587
Fitting Position: Front Axle
Wear Warning Contact: incl. wear warning contact
Supplementary Article/Supplementary Info: Photo corresponds to scope of supply
Thickness [mm]: 20
Width 1 [mm]: 155
Width 2 [mm]: 156
Height 1 [mm]: 66
Height 2 [mm]: 71
Brake System: ATE
Test Mark: ECE R90 APPROVED
Number of wear indicators [per axle]: 1

reference numbers - for comparison

ATE - 13.0460-7184.2 / 13046071842
ATE - 13.0470-7184.2 / 13047071842
ATE - 607184
AUDI - 1K0 698 151 / 1K0698151
AUDI - 1K0 698 151 E / 1K0698151E
AUDI - 3C0 698 151 C / 3C0698151C
AUDI - 3C0 698 151 D / 3C0698151D
AUDI - 3C0 698 151 J / 3C0698151J
AUDI - 3C0 698 151 K / 3C0698151K
AUDI - 5K0 698 151 / 5K0698151
BOSCH - 0 986 424 797 / 0986424797
BOSCH - 0 986 495 412 / 0986495412
BREMBO - P 61 076 / P61076
BREMBO - P 61 076 / P61076
BREMBO - P 61 076X / P61076X
BREMBO - P 61 076X / P61076X
BREMBO - P 85 075 / P85075
BREMBO - P 85 075 / P85075
BREMBO - P 85 075X / P85075X
BREMBO - P 85 075X / P85075X
BREMBO - P 85 146 / P85146
BREMBO - P 85 146 / P85146
BREMBO - P 85 146X / P85146X
BREMBO - P 85 146X / P85146X
ECORA - 4250238738862
FERODO - FDB1641
HELLA PAGID - 8DB 355 010-581 / 8DB355010581
HELLA PAGID - 8DB 355 023-161 / 8DB355023161
HERTH+BUSS JAKOPARTS - J3600821
HERTH+BUSS JAKOPARTS - J3600821
JURID - 573128J
JURID - 573128JC
RAICAM - RA.0817.0 / RA08170
RAICAM - RA.0817.1 / RA08171
RAICAM - RA.0919.1 / RA09191
TEXTAR - 2358701
TEXTAR - 2469602
TRW - GDB1550
TRW - GDB1550DTE
VAG - 1K0 698 151 / 1K0698151
VAG - 1K0 698 151 C / 1K0698151C
VAG - 1K0 698 151 E / 1K0698151E
VAG - 3C0 698 151 / 3C0698151
VAG - 3C0 698 151 A / 3C0698151A
VAG - 3C0 698 151 B / 3C0698151B
VAG - 3C0 698 151 C / 3C0698151C
VAG - 3C0 698 151 D / 3C0698151D
VAG - 3C0 698 151 J / 3C0698151J
VAG - 3C0 698 151 K / 3C0698151K
VAG - 3C0 698 151 P / 3C0698151P
VAG - 5K0 698 151 / 5K0698151
VAG - 5K0 698 151 A / 5K0698151A
VAG - 5K0 698 151 B / 5K0698151B
VAG - JZW 698 151 B / JZW698151B
VOLKSWAGEN - 1K0 698 151 C / 1K0698151C
VOLKSWAGEN - 1K0 698 151 E / 1K0698151E
VOLKSWAGEN - 1KD 698 151 G / 1KD698151G
VOLKSWAGEN - 3C0 698 151 / 3C0698151
VOLKSWAGEN - 3C0 698 151 A / 3C0698151A
VOLKSWAGEN - 3C0 698 151 B / 3C0698151B
VOLKSWAGEN - 3C0 698 151 C / 3C0698151C
VOLKSWAGEN - 3C0 698 151 D / 3C0698151D
VOLKSWAGEN - 3C0 698 151 J / 3C0698151J
VOLKSWAGEN - 3C0 698 151 K / 3C0698151K
VOLKSWAGEN - 5K0 698 151 / 5K0698151
VOLKSWAGEN - 8J0 698 151 P / 8J0698151P
VOLKSWAGEN - JZW 698 151 B / JZW698151B
ZIMMERMANN - 23587.200.1 / 235872001
ZIMMERMANN - 23587.900.1 / 235879001
ZIMMERMANN - 23588
ZIMMERMANN - 23589
ZIMMERMANN - 24696
ZIMMERMANN - D1107-8212 / D11078212
ZIMMERMANN - D1107-8212 / D11078212
ZIMMERMANN - D1319-8212 / D13198212
ZIMMERMANN - D1319-8212 / D13198212
