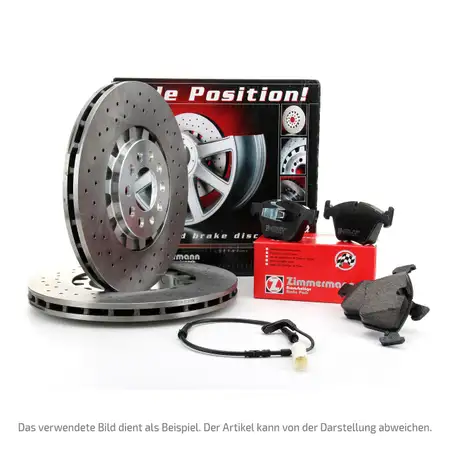

Zimmermann FORMULA Z Brake Discs + Pads for PORSCHE 991 3.0 Carrera GTS (Front)

Zimmermann FORMULA Z Brake Discs + Pads for PORSCHE 991 3.0 Carrera GTS (Front)

Zimmermann FORMULA Z Brake Discs + Pads for PORSCHE 991 3.0 Carrera GTS (Front)

Zimmermann FORMULA Z Brake Discs + Pads for PORSCHE 991 3.0 Carrera GTS (Front)

Zimmermann FORMULA Z Brake Discs + Pads for PORSCHE 991 3.0 Carrera GTS (Front)

Zimmermann FORMULA Z Brake Discs + Pads for PORSCHE 991 3.0 Carrera GTS (Front)

Zimmermann FORMULA Z Brake Discs + Pads for PORSCHE 991 3.0 Carrera GTS (Front)

Zimmermann FORMULA Z Brake Discs + Pads for PORSCHE 991 3.0 Carrera GTS (Front)

ZIMMERMANN

CARIPAR

Item No.: PKT852W540
Manufacturer: ZIMMERMANN, CARIPAR
part number: 460.4510.70, 460.4511.70, 25983.180.1, GBK 817

Items included:

1x Brake Disc Piece - ZIMMERMANN 460.4510.70
1x Brake Disc Piece - ZIMMERMANN 460.4511.70
1x Brake Pad Set, disc brake Set - ZIMMERMANN 25983.180.1
2x Warning Contact, brake pad wear Piece - CARIPAR GBK 817

item specifications

Component: Braking System
Quantity Unit: Piece
Brake Disc Type: Vented
Brake Disc Type: Perforated
Brake Disc Type: two-piece brake disc
Brake Disc Type: floating brake disc
Brake Disc Type: Aluminium Brake Disc Hub
Fitting Position: Front Axle
Fitting Position: Front Axle Left
Outer Diameter [mm]: 350
Hole Arrangement/Number: 7/5
Surface: Coated
directional:
Bolt Hole Circle Ø [mm]: 130
Height [mm]: 69
Brake Disc Thickness [mm]: 34
Minimum thickness [mm]: 32
Weight [kg]: 11,3
Centering Diameter [mm]: 98
Rim Size [inch]: 17.0
Rim Hole Number: 5
Test Mark: ECE R90 APPROVED

reference numbers - for comparison

ECORA - 4250238777793
PORSCHE - 9P1 615 301 / 9P1615301
PORSCHE - 9P1 615 301 J / 9P1615301J
SHW Performance - PFL49925
ZIMMERMANN - 460.4510.70 / 460451070

item specifications

Component: Braking System
Quantity Unit: Piece
Brake Disc Type: Vented
Brake Disc Type: Perforated
Brake Disc Type: two-piece brake disc
Brake Disc Type: floating brake disc
Brake Disc Type: Aluminium Brake Disc Hub
Fitting Position: Front Axle
Fitting Position: Front Axle Right
Outer Diameter [mm]: 350
Hole Arrangement/Number: 7/5
Surface: Coated
directional:
Bolt Hole Circle Ø [mm]: 130
Height [mm]: 69
Brake Disc Thickness [mm]: 34
Minimum thickness [mm]: 32
Weight [kg]: 11,3
Centering Diameter [mm]: 98
Rim Size [inch]: 17.0
Rim Hole Number: 5
Test Mark: ECE R90 APPROVED

reference numbers - for comparison

ECORA - 4250238777809
PORSCHE - 9P1 615 302 / 9P1615302
PORSCHE - 9P1 615 302 J / 9P1615302J
SHW Performance - PFR49926
ZIMMERMANN - 460.4511.70 / 460451170

item specifications

Component: Braking System
Quantity Unit: Set
WVA Number: 25983
Fitting Position: Front Axle
Wear Warning Contact: prepared for wear warning indicator
Supplementary Article/Supplementary Info: Photo corresponds to scope of supply
Thickness [mm]: 18
Width [mm]: 200
Height [mm]: 80
Test Mark: ECE R90 APPROVED

reference numbers - for comparison

ATE - 13.0460-4724.2 / 13046047242
BOSCH - 0 986 424 847 / 0986424847
BREMBO - P 65 041 / P65041
BREMBO - P 65 041 / P65041
ECORA - 4250238784692
FERODO - FDB5280
HELLA PAGID - 8DB 355 025-601 / 8DB355025601
JURID - 574021J
PORSCHE - 992 698 075 F / 992698075F
PORSCHE - 992 698 151 G / 992698151G
PORSCHE - 9P1 698 151 A / 9P1698151A
PORSCHE - 9P1 698 151 B / 9P1698151B
PORSCHE - 9P1 698 151 C / 9P1698151C
RAICAM - RA.1369.0 / RA13690
TEXTAR - 2598301
ZIMMERMANN - 25983
ZIMMERMANN - 25983.180.1 / 259831801

item specifications

Component: Braking System
Application: Lining Wear
Quantity Unit: Piece
Fitting Position: Front Axle
Warning Contact Length [mm]: 340

reference numbers - for comparison

ATE - 24819008422
ATE - 620842
BOSCH - 1987473605
Caripar - GBK 817 / GBK817
DELPHI - LZ0362
HELLA - 355252951
HELLA - 8DK355252951
HELLA PAGID - 355252951
HELLA PAGID - 8DK355252951
HELLA PAGID - P8762
HELLA PAGID - P8762
METZGER - 1190297
PAGID - P8762N
PAGID - P8762N
PORSCHE - 991 609 165 00 / 99160916500
TEXTAR - 98062200
TEXTAR - 98062210

Name:

OTTO ZIMMERMANN GMBH

Website:

www.otto-zimmermann.de

E-Mail:

info@otto-zimmermann.de

Phone:

0049(0)7261 94514-0

Street, House no:

Am Leitzelbach 8

ZIP / City:

74889 Sinsheim - Duehren

Country:

Germany
