ZIMMERMANN Brake Discs + Pads + Wako for MERCEDES A-Class V177, CLA C118, X118 (Front)

ZIMMERMANN Brake Discs + Pads + Wako for MERCEDES A-Class V177, CLA C118, X118 (Front)

ZIMMERMANN Brake Discs + Pads + Wako for MERCEDES A-Class V177, CLA C118, X118 (Front)

ZIMMERMANN Brake Discs + Pads + Wako for MERCEDES A-Class V177, CLA C118, X118 (Front)

ZIMMERMANN Brake Discs + Pads + Wako for MERCEDES A-Class V177, CLA C118, X118 (Front)

ZIMMERMANN Brake Discs + Pads + Wako for MERCEDES A-Class V177, CLA C118, X118 (Front)

ZIMMERMANN Brake Discs + Pads + Wako for MERCEDES A-Class V177, CLA C118, X118 (Front)

ZIMMERMANN

CARIPAR

Item No.: PKT852W548
Manufacturer: ZIMMERMANN, CARIPAR
part number: 400.5538.20, 22988.190.2, GBK 625

Items included:

2x Brake Disc Piece - ZIMMERMANN
1x Brake Pad Set, disc brake Set - ZIMMERMANN
1x Warning Contact, brake pad wear Piece - CARIPAR

item specifications

Bolt Hole Circle Ø [mm]: 112
Outer Diameter [mm]: 305
Surface: Coated
Component: Braking System
Brake Disc Type: internally vented
Fitting Position: Front Axle
Test Mark: ECE R90 APPROVED
Centering Diameter [mm]: 67
Quantity Unit: Piece
Rim Hole Number: 5
Hole Arrangement/Number: 6/5
Minimum thickness [mm]: 25,4
Processing: High-carbon
Brake Disc Thickness [mm]: 28
Weight [kg]: 8
Height [mm]: 51

reference numbers - for comparison

ATE - 24.0128-0327.1 / 24012803271
BREMBO - 09.E022.11 / 09E02211
DELPHI - BG5046C
FERODO - DDF2994C
HELLA PAGID - 8DD 355 133-371 / 8DD355133371
HERTH+BUSS JAKOPARTS - J3300840
HERTH+BUSS JAKOPARTS - J3300840
JURID - 563637JC
MERCEDES-BENZ - 247 421 04 12 / 2474210412
MERCEDES-BENZ - 247 421 0412 / 2474210412
MERCEDES-BENZ - A 247 421 0412 / A2474210412
MERCEDES-BENZ - A 247 421 0412 / A2474210412
TEXTAR - 92323405
TRW - DF6717S
ZIMMERMANN - 400.5538.20 / 400553820
ZIMMERMANN - 400.5538.30 / 400553830
ZIMMERMANN - 400.5538.52 / 400553852
ZIMMERMANN - 4250238780618

item specifications

Component: Braking System
Width [mm]: 134
Fitting Position: Front Axle
Test Mark: ECE R90 APPROVED
WVA Number: 22988
Quantity Unit: Set
Supplementary Article/Supplementary Info: with sliding plate
Supplementary Article/Supplementary Info: with spring
Supplementary Article/Supplementary Info: Photo corresponds to scope of supply
Supplementary Article/Supplementary Info 2: with brake caliper screws
Thickness [mm]: 19
Height 2 [mm]: 72
Brake System: CBI
Wear Warning Contact: prepared for wear warning indicator
Height 1 [mm]: 63

reference numbers - for comparison

ATE - 13.0460-3883.2 / 13046038832
ATE - 13.0470-3883.2 / 13047038832
BOSCH - 0 986 424 887 / 0986424887
BREMBO - P 50 146 / P50146
BREMBO - P 50 146 / P50146
FERODO - FDB5180
HELLA PAGID - 8DB 355 037-961 / 8DB355037961
JURID - 573883J
MERCEDES-BENZ - 000 420 51 03 / 0004205103
MERCEDES-BENZ - 000 420 5103 / 0004205103
MERCEDES-BENZ - 000 420 6902 / 0004206902
MERCEDES-BENZ - 000 420 7000 / 0004207000
MERCEDES-BENZ - A 000 420 5103 / A0004205103
MERCEDES-BENZ - A 000 420 5103 / A0004205103
MERCEDES-BENZ - A 000 420 6902 / A0004206902
MERCEDES-BENZ - A 000 420 6902 / A0004206902
MERCEDES-BENZ - A 000 420 7000 / A0004207000
MERCEDES-BENZ - A 000 420 7000 / A0004207000
TEXTAR - 2298801
TRW - GDB2330
ZIMMERMANN - 22988
ZIMMERMANN - 22988.190.2 / 229881902
ZIMMERMANN - 22989
ZIMMERMANN - 4250238784289

item specifications

Component: Braking System
Fitting Position: Front Axle
Fitting Position: Rear Axle
Application: Lining Wear
Quantity Unit: Piece

reference numbers - for comparison

Name:

OTTO ZIMMERMANN GMBH

Website:

www.otto-zimmermann.de

E-Mail:

info@otto-zimmermann.de

Phone:

0049(0)7261 94514-0

Street, House no:

Am Leitzelbach 8

ZIP / City:

74889 Sinsheim - Duehren

Country:

Germany

manufacturer	model	type	power	capacity	constr. date	kba	limitations

manufacturer:

Customers also bought

20L LIQUI MOLY 3707 TOP TEC 4200 5W30 Engine Oil NEW GEN for VW 504.00 507.00 BMW LL-04

20L LIQUI MOLY 3707 TOP TEC 4200 5W30 Engine Oil NEW GEN for VW 504.00 507.00 BMW LL-04

185.00 EUR

9.25 EUR per 1 l

incl. VAT, excl. shipping costs

add to cart

10L LIQUI MOLY 3707 TOP TEC 4200 5W30 Engine Oil NEW GEN for VW 504.00 507.00 BMW LL-04

10L LIQUI MOLY 3707 TOP TEC 4200 5W30 Engine Oil NEW GEN for VW 504.00 507.00 BMW LL-04

97.00 EUR

9.70 EUR per 1 l

incl. VAT, excl. shipping costs

add to cart

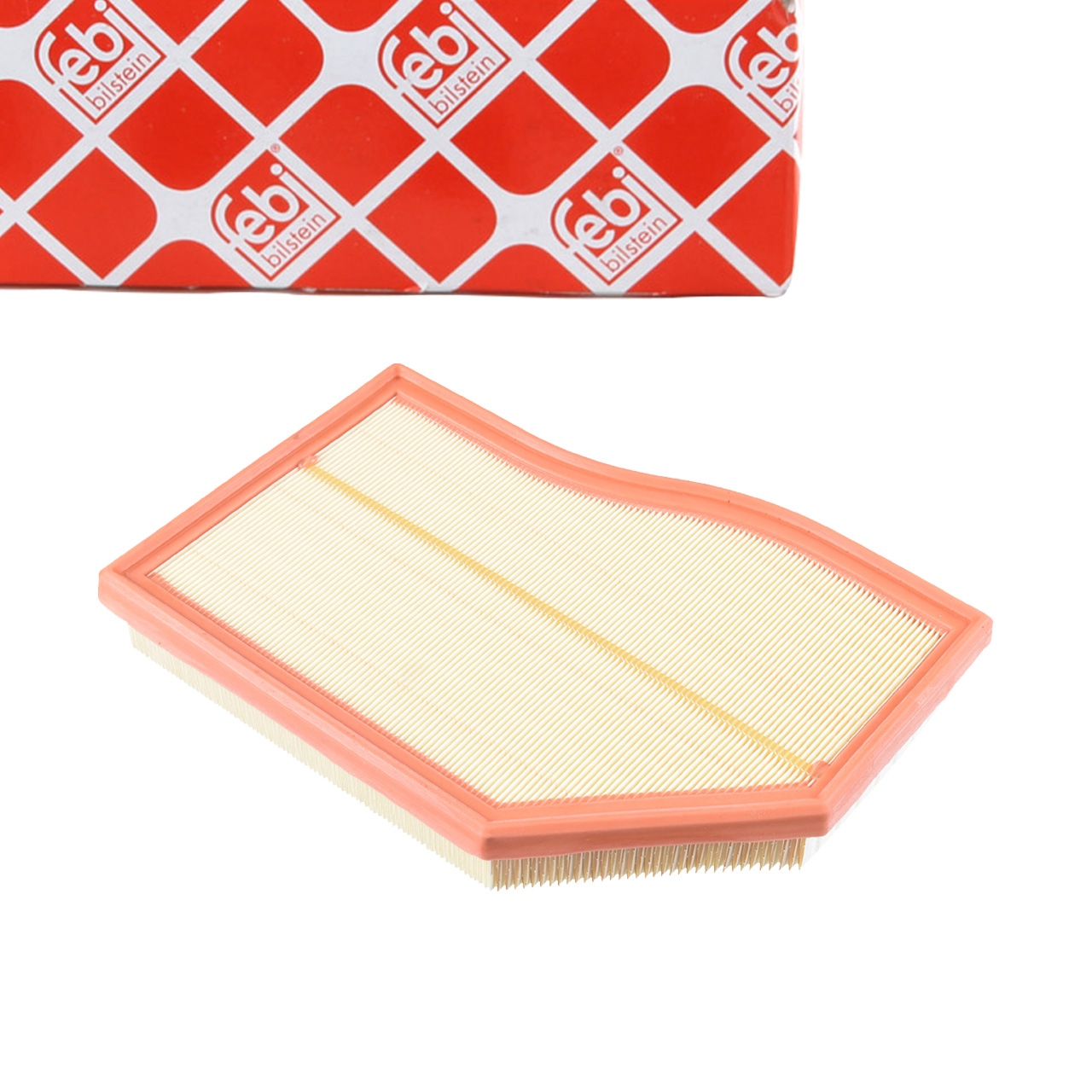

febi 106896 Air Filter for MERCEDES W177, V177, W247, C118, X118, H247, OM608, OM654, 6540940204

febi 106896 Air Filter for MERCEDES W177, V177, W247, C118, X118, H247, OM608, OM654, 6...

22.45 EUR

incl. VAT, excl. shipping costs

add to cart

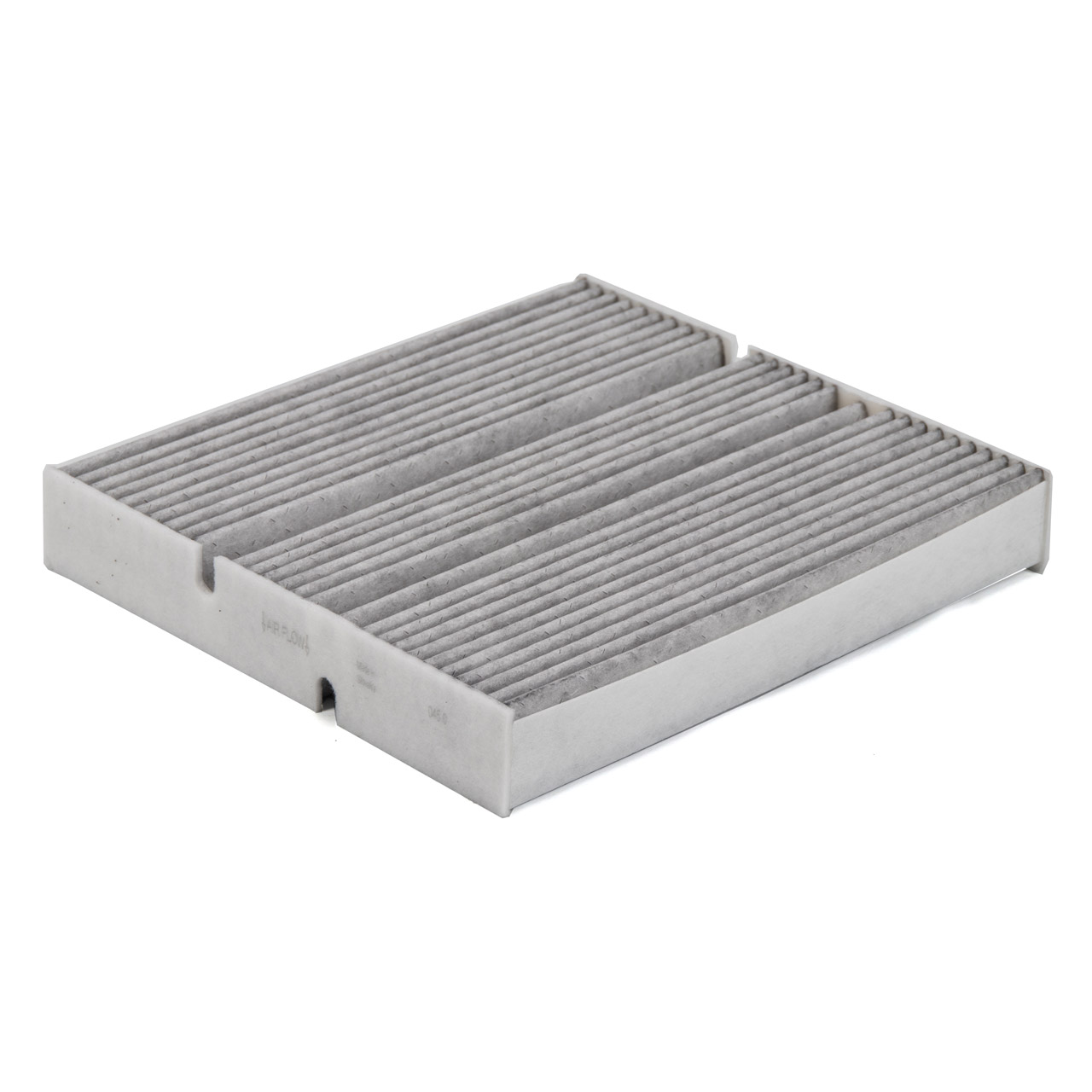

Activated Carbon Cabin Filter for MERCEDES W177, V177, W247, C118, X118, H243, X243, X247 (Part No. 2478307203)
