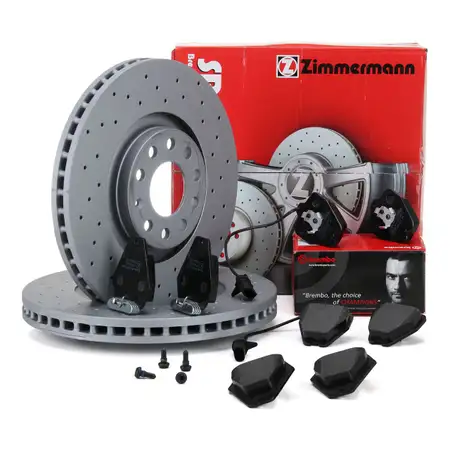

Zimmermann SPORT brake discs + BREMBO pads + Wako for AUDI S4 B5 A6 C5 PR-1LX (front)

Zimmermann SPORT brake discs + BREMBO pads + Wako for AUDI S4 B5 A6 C5 PR-1LX (front)

ZIMMERMANN BREMBO

Item No.: PKT662W007
Manufacturer: ZIMMERMANN, BREMBO
part number: 100.1249.52, P 85 096

Items included:
  • 2x Brake Disc Piece - ZIMMERMANN 100.1249.52
  • 1x Brake Pad Set, disc brake Set - BREMBO P 85 096

Questions about the item?
Chat
Email-Icon
E-Mail
Trusted Badge Rating
item specifications
  • Component: Braking System
  • Quantity Unit: Piece
  • Brake Disc Type: Externally Vented
  • Brake Disc Type: Perforated
  • Fitting Position: Front Axle
  • Outer Diameter [mm]: 320
  • Hole Arrangement/Number: 10/5
  • Surface: Coated
  • Version: Sport
  • Bolt Hole Circle Ø [mm]: 112
  • Height [mm]: 47
  • Brake Disc Thickness [mm]: 30
  • Minimum thickness [mm]: 28
  • Machining: High-carbon
  • Weight [kg]: 9,8
  • Centering Diameter [mm]: 68
  • Rim Hole Number: 5
  • Test Mark: ECE R90 APPROVED
reference numbers - for comparison
  • ATE - 24.0130-0113.1 / 24013001131
  • ATE - 24.0330-0113.1 / 24033001131
  • BOSCH - 0 986 478 985 / 0986478985
  • BREMBO - 09.8689.75 / 09868975
  • BREMBO - 09.8698.11 / 09869811
  • ECORA - 4250238745730
  • FERODO - DDF1166C-1 / DDF1166C1
  • FERODO - DDF1705C-1 / DDF1705C1
  • HELLA PAGID - 8DD 355 107-631 / 8DD355107631
  • HELLA PAGID - 8DD 355 127-591 / 8DD355127591
  • JURID - 562205JC-1 / 562205JC1
  • RAICAM - RD01113
  • TEXTAR - 92106705
  • TRW - DF4258S
  • VAG - 8D0 615 301 K / 8D0615301K
  • VAG - 8D0 615 301 M / 8D0615301M
  • VAG - 8E0 615 301 AD / 8E0615301AD
  • ZIMMERMANN - 100.1249.20 / 100124920
  • ZIMMERMANN - 100.1249.52 / 100124952
  • ZIMMERMANN - 100.1249.53 / 100124953
item specifications
  • Component: Braking System
  • Quantity Unit: Set
  • WVA Number: 21454
  • WVA Number: 21452
  • WVA Number: 23829
  • Fitting Position: Front Axle
  • Wear Warning Contact: incl. wear warning contact
  • Supplementary Article/Supplementary Info: with accessories
  • Supplementary Article/Supplementary Info 2: with brake caliper screws
  • Supplementary Article/Supplementary Info 2: with piston clip
  • Supplementary Article/Supplementary Info 2: with anti-squeak plate
  • Thickness [mm]: 19
  • Width 1 [mm]: 64
  • Width 2 [mm]: 76
  • Height 1 [mm]: 78
  • Height 2 [mm]: 85
  • Brake System: Lucas
  • Number of wear indicators [per axle]: 2
  • Warning Contact Length [mm]: 280
  • Connector Shape: oval
reference numbers - for comparison
  • ATE - 13046027012
  • ATE - 13046027052
  • ATE - 602701
  • ATE - 602705
  • AUDI - 4B0698151AE
  • AUDI - 4B0698151C
  • AUDI - 4D0698151F
  • AUDI - 8D0698151B
  • AUDI - 8D0698151K
  • BLUE PRINT - ADV184288
  • BOSCH - 0986494215
  • BREMBO - 21452
  • BREMBO - 21454
  • BREMBO - 23829
  • BREMBO - D1360 8469 / D13608469
  • BREMBO - D1360 8469 / D13608469
  • BREMBO - P 85 096 / P85096
  • DELPHI - LP1024
  • DELPHI - LP1463
  • DELPHI - LP1760
  • ECORA - 8020584062456
  • FERODO - FDB985
  • FTE - 9001519
  • FTE - 9001632
  • FTE - 9010394
  • FTE - BL1816A2
  • HELLA PAGID - 355010191
  • HELLA PAGID - 8DB355010191
  • JURID - 573337J
  • MEYLE - 0252145418PD
  • OPTIMAL - 50822
  • OPTIMAL - BP50822
  • PAGID - T1328
  • PAGID - T1328
  • SEAT - 4B0698151AE
  • SEAT - 4B0698151C
  • SEAT - 8D0698151B
  • SKODA - 4B0698151AE
  • SKODA - 4B0698151C
  • SKODA - 8D0698151B
  • TEXTAR - 2145401
  • TRW - GDB1323
  • TRW - GDB1451
  • TRW - TRH1360
  • VALEO - 597260
  • VALEO - 670944
  • VALEO - 671204
  • VOLKSWAGEN - 4B0698151AE
  • VOLKSWAGEN - 4B0698151C
  • VOLKSWAGEN - 8D0698151B
  • febi bilstein - 16456
Name:
OTTO ZIMMERMANN GMBH
Website:
www.otto-zimmermann.de
E-Mail:
info@otto-zimmermann.de
Phone:
0049(0)7261 94514-0
Street, House no:
Am Leitzelbach 8
ZIP / City:
74889 Sinsheim - Duehren
Country:
Germany
