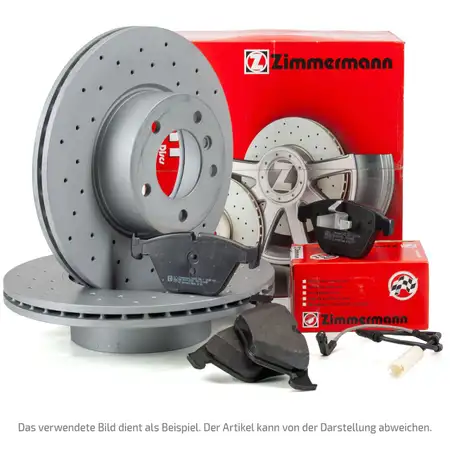

Zimmermann SPORT brake discs + Pads + Wako for BMW E90-92 X1 xDrive (model year 2010 and later) – front

Zimmermann SPORT brake discs + Pads + Wako for BMW E90-92 X1 xDrive (model year 2010 and later) – front

Zimmermann SPORT brake discs + Pads + Wako for BMW E90-92 X1 xDrive (model year 2010 and later) – front

Zimmermann SPORT brake discs + Pads + Wako for BMW E90-92 X1 xDrive (model year 2010 and later) – front

Zimmermann SPORT brake discs + Pads + Wako for BMW E90-92 X1 xDrive (model year 2010 and later) – front

Zimmermann SPORT brake discs + Pads + Wako for BMW E90-92 X1 xDrive (model year 2010 and later) – front

Zimmermann SPORT brake discs + Pads + Wako for BMW E90-92 X1 xDrive (model year 2010 and later) – front

Zimmermann SPORT brake discs + Pads + Wako for BMW E90-92 X1 xDrive (model year 2010 and later) – front

Zimmermann SPORT brake discs + Pads + Wako for BMW E90-92 X1 xDrive (model year 2010 and later) – front

ZIMMERMANN

CARIPAR

Item No.: PKT162W939
Manufacturer: ZIMMERMANN, CARIPAR
part number: 150.3428.52, 23794.200.1, GBK 643

Items included:

2x Brake Disc Piece - ZIMMERMANN 150.3428.52
1x Brake Pad Set, disc brake Set - ZIMMERMANN 23794.200.1
1x Warning Contact, brake pad wear Piece - CARIPAR GBK 643

item specifications

Component: Braking System
Quantity Unit: Piece
Brake Disc Type: internally vented
Brake Disc Type: Perforated
Fitting Position: Front Axle
Outer Diameter [mm]: 330
Hole Arrangement/Number: 6/5
Surface: Coated
Version: Sport
Bolt Hole Circle Ø [mm]: 120
Height [mm]: 73
Brake Disc Thickness [mm]: 24
Minimum thickness [mm]: 22,4
Machining: High-carbon
Weight [kg]: 9,1
Power to [kW]: 160
Centering Diameter [mm]: 79
Rim Hole Number: 5
Test Mark: ECE R90 APPROVED

reference numbers - for comparison

ATE - 24.0124-0200.1 / 24012402001
ATE - 24.0324-0200.1 / 24032402001
BMW - 3411 6 764 645 / 34116764645
BMW - 3411 6 854 999 / 34116854999
BOSCH - 0 986 479 215 / 0986479215
BREMBO - 09.A259.10 / 09A25910
BREMBO - 09.A259.11 / 09A25911
BREMBO - 09.A259.1X / 09A2591X
DELPHI - BG3959
ECORA - 4250238749202
FERODO - DDF1535C-1 / DDF1535C1
HELLA PAGID - 8DD 355 111-941 / 8DD355111941
HELLA PAGID - 8DD 355 128-431 / 8DD355128431
JURID - 562395JC-1 / 562395JC1
RAICAM - RD00090
TEXTAR - 92137805
TRW - DF4460S
VALEO - 197073
VALEO - 672744
ZIMMERMANN - 150.3428.20 / 150342820
ZIMMERMANN - 150.3428.52 / 150342852
ZIMMERMANN - 150.3428.54 / 150342854
ZIMMERMANN - 150.3428.55 / 150342855

item specifications

Component: Braking System
Quantity Unit: Set
WVA Number: 23794
Fitting Position: Front Axle
Wear Warning Contact: prepared for wear warning indicator
Supplementary Article/Supplementary Info: Photo corresponds to scope of supply
Thickness [mm]: 20
Width [mm]: 155
Height [mm]: 64
Brake System: ATE
Test Mark: ECE R90 APPROVED

reference numbers - for comparison

ATE - 13.0460-7216.2 / 13046072162
ATE - 13.0470-7216.2 / 13047072162
BMW - 3411 2 288 875 / 34112288875
BMW - 3411 2 288 876 / 34112288876
BMW - 3411 2 288 878 / 34112288878
BMW - 3411 2 288 879 / 34112288879
BMW - 3411 2 288 880 / 34112288880
BMW - 3411 6 769 099 / 34116769099
BMW - 3411 6 769 100 / 34116769100
BMW - 3411 6 771 868 / 34116771868
BMW - 3411 6 799 166 / 34116799166
BOSCH - 0 986 424 621 / 0986424621
BREMBO - P 06 036 / P06036
BREMBO - P 06 036 / P06036
BREMBO - P 06 036X / P06036X
BREMBO - P 06 036X / P06036X
ECORA - 4250238739616
FERODO - FDB1773
HELLA PAGID - 8DB 355 011-321 / 8DB355011321
JURID - 573151J
RAICAM - RA.0632.7 / RA06327
TEXTAR - 2379401
TRW - GDB1559
TRW - GDB1559DTE
ZIMMERMANN - 23794
ZIMMERMANN - 23794.200.1 / 237942001
ZIMMERMANN - 23968
ZIMMERMANN - 24096
ZIMMERMANN - D1061-7967 / D10617967
ZIMMERMANN - D1061-7967 / D10617967

item specifications

Component: Braking System
Application: Lining Wear
Quantity Unit: Piece
Fitting Position: Front Axle

reference numbers - for comparison

ATE - 24.8190-0286.2 / 24819002862
ATE - 620286
BMW - 34 35 6 792 561 / 34356792561
BREMBO - A 00 441 / A00441
BREMBO - A 00 441 / A00441
Caripar - GBK 643 / GBK643
DELPHI - LZ0192
FERODO - FWI362
HELLA - 8DK 355 251-821 / 8DK355251821
HELLA PAGID - 8DK 355 251-821 / 8DK355251821
JURID - 581489
PAGID - P8593
PAGID - P8593
TEXTAR - 98044300
febi bilstein - 37665

Name:

OTTO ZIMMERMANN GMBH

Website:

www.otto-zimmermann.de

E-Mail:

info@otto-zimmermann.de

Phone:

0049(0)7261 94514-0

Street, House no:

Am Leitzelbach 8

ZIP / City:

74889 Sinsheim - Duehren

Country:

Germany
