TEXTAR Brake Discs + Brake Pads for RENAULT Clio 4, Kangoo, and MERCEDES Citan (Front)

TEXTAR Brake Discs + Brake Pads for RENAULT Clio 4, Kangoo, and MERCEDES Citan (Front)

Item No.: PKT462W349
Manufacturer: TEXTAR
part number: 92241503, 2397301

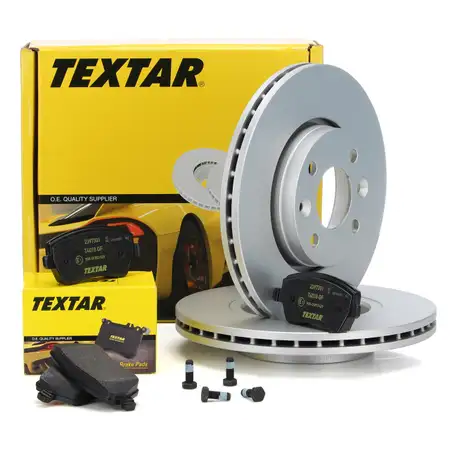

Items included:

2x Brake Disc Piece - TEXTAR 92241503
1x Brake Pad Set, disc brake Set - TEXTAR 2397301

item specifications

Component: Braking System
Quantity Unit: Piece
Brake Disc Type: Externally Vented
Fitting Position: Front Axle
Outer Diameter [mm]: 258
Hole Arrangement/Number: 04/06
Surface: Coated
Supplementary Article/Supplementary Info 2: without wheel hub
Supplementary Article/Supplementary Info 2: without wheel bearing
Supplementary Article/Supplementary Info 2: without wheel studs
Bolt Hole Circle Ø [mm]: 100
Height [mm]: 43,9
Brake Disc Thickness [mm]: 22
Minimum thickness [mm]: 19,8
Inner Diameter [mm]: 125,1
Weight [kg]: 5,5
Centering Diameter [mm]: 61
Wheel Bolt Bore Diameter [mm]: 13,5
Packaging length [cm]: 27,8
Packaging width [cm]: 27,8
Packaging height [cm]: 12,2

reference numbers - for comparison

ATE - 24.0122-0270.1 / 24012202701
ATE - 24.0122-0289.1 / 24012202891
BLUE PRINT - ADR164307
BOSCH - 0 986 479 556 / 0986479556
BOSCH - 0 986 479 A86 / 0986479A86
BOSCH - 0 986 479 S90 / 0986479S90
BREMBO - 09.9078.20 / 09907820
BREMBO - 09.9078.21 / 09907821
BREMBO - 09.9078.2X / 0990782X
BREMBO - 09.9078.76 / 09907876
DACIA - 402061200R
DACIA - 402061858R
DACIA - 402067016R
DACIA - 8660001231
DELPHI - BG4459
DELPHI - BG4459C
ECORA - 4019722448447
FERODO - DDF1978
JURID - 562636JC
MERCEDES-BENZ - 415 420 01 01 / 4154200101
MERCEDES-BENZ - A4154200101
MERCEDES-BENZ - A4154200101
METZGER - 6110681
MEYLE - 16-15 521 0027 / 16155210027
MEYLE - 16-15 521 0034 / 16155210034
MEYLE - 16-15 521 0034/PD / 16155210034PD
NISSAN - 4020600Q1E
NISSAN - 4020600Q2E
PAGID - 55415
PAGID - 55415NC
PAGID - 55415PRO
RENAULT - 402061200R
RENAULT - 402061841R
RENAULT - 402061858R
RENAULT - 402063166R
RENAULT - 402067016R
RENAULT - 402067501R
RENAULT - 7701210081
RENAULT - 8660001231
SMART - 4534200100
TEXTAR - 92241503
TRW - DF6186
VALEO - 197508
ZIMMERMANN - 470.2441.20 / 470244120
febi bilstein - 39477

item specifications

Component: Braking System
Quantity Unit: Set
WVA Number: 23973
Fitting Position: Front Axle
Wear Warning Contact: not prepared for wear warning indicator
Supplementary Article/Supplementary Info 2: with brake caliper screws
Thickness [mm]: 17,3
Width [mm]: 116,5
Height [mm]: 52,2
Brake System: Lucas
Weight [kg]: 1,163
Rim Size [inch]: 14.0
Packaging length [cm]: 12,5
Packaging width [cm]: 8,1
Packaging height [cm]: 8

reference numbers - for comparison

ATE - 13046027092
ATE - 13046058012
ATE - 13047027092
ATE - 13047058012
ATE - 602709
ATE - 605801
ATE - LD2709
ATE - LD5801
BLUE PRINT - ADN142117
BOSCH - 0986424795
BOSCH - 0986494592
BOSCH - 0986494856
BOSCH - 0986495414
BOSCH - 0986495452
BOSCH - 098650A198
BOSCH - 0986BB0902
BOSCH - 0986BB0983
BOSCH - 0986TB2448
BOSCH - 0986TB3159
BOSCH - BP936
BREMBO - P68033
BREMBO - P68033
BREMBO - P68033E
BREMBO - P68033E
BREMBO - P68033N
BREMBO - P68033N
BREMBO - P68033X
BREMBO - P68033X
CHAMPION - 573125CH
DACIA - 410601817R
DACIA - 410604775R
DACIA - 410608481R
DACIA - 7701209164
DELPHI - LP1865
DELPHI - LP3551
DELPHI - LP5005EV
ECORA - 4019722269431
EUROREPAR - 1617266380
EUROREPAR - 1636485680
EUROREPAR - 1639376680
EUROREPAR - 1682313280
FERODO - FDB1617
FERODO - FDB4647QS
FERODO - FSL1617
FTE - 9001008
FTE - 9010460
FTE - 9010462
FTE - BL1876A3
FTE - BL1876B3
HELLA - 355010851
HELLA - 355030531
HELLA - 355045111
HELLA - 530032784
HELLA - 8DB355010851
HELLA - 8DB355030531
HELLA - 8DB355045111
HELLA PAGID - 355010851
HELLA PAGID - 355030531
HELLA PAGID - 355045111
HELLA PAGID - 8DB355010851
HELLA PAGID - 8DB355030531
HELLA PAGID - 8DB355045111
HERTH+BUSS JAKOPARTS - J3601085
HERTH+BUSS JAKOPARTS - J3601085
JP Group - 4363601910
JURID - 573125J
JURID - HQJ2297
MAGNETI MARELLI - 323700001900
MAGNETI MARELLI - 363700201399
MAGNETI MARELLI - 363700468033
MAGNETI MARELLI - T1399MM
MAGNETI MARELLI - T1399MM
MERCEDES-BENZ - 415 421 05 10 / 4154210510
MERCEDES-BENZ - A4154210510
MERCEDES-BENZ - A4154210510
METZGER - 098700
METZGER - 1170029
MEYLE - 0252397317
MEYLE - 0252397317PD
MEYLE - MBP0489
MEYLE - MBP0489PD
NISSAN - 4106000Q0K
NISSAN - 41060AX601
NISSAN - 41060AX625
NISSAN - 41060AZ625
NISSAN - D1060AX60A
NISSAN - D1060AX60A
NISSAN - D1060AX61A
NISSAN - D1060AX61A
NISSAN - D1060AX61F
NISSAN - D1060AX61F
NISSAN - D1060BH40A
NISSAN - D1060BH40A
OPTIMAL - 12131
OPTIMAL - BP12131
PAGID - T1399
PAGID - T1399
PAGID - T1399N
PAGID - T1399N
RAICAM - 8050
RAICAM - RA08050
RENAULT - 410601817R
RENAULT - 410604076R
RENAULT - 410608481R
RENAULT - 7701208422
RENAULT - 7701209164
RENAULT - 7711946170
RENAULT - 8660004726
TEXTAR - 23973 173 1 4 / 2397317314
TEXTAR - 2397301
TEXTAR - 2397301SC
TEXTAR - 8553D1435
TRW - GDB1614
TRW - GDB2017
TRW - GDB3332
TRW - GDB3332BTE
TRW - GDB3332DTE
TRW - GDB3637MA
TRW - GDB90017
TRW - RCPT13870
VAICO - V400651
VAICO - V400651
VAICO - V460157
VAICO - V460157
VALEO - 301641
VALEO - 301641A
VALEO - 598641
VALEO - 601116
VALEO - 601641
VALEO - 610320
VALEO - 670641
VALEO - 672441
VALEO - 872973
ZIMMERMANN - 239731751
ZIMMERMANN - 239739751
febi bilstein - 116180
febi bilstein - 16523
