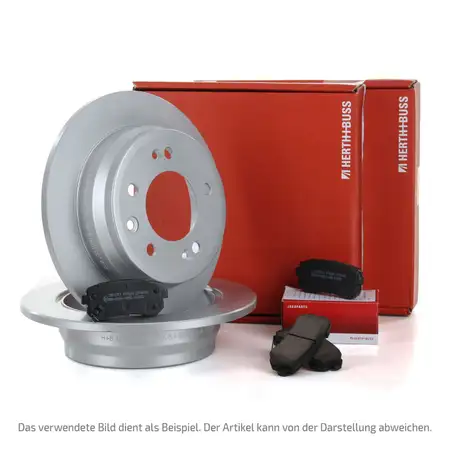

HERTH+BUSS Brake Discs + Brake Pads for CHEVROLET Aveo/Kalos, Cruze, Trax (Rear)

HERTH+BUSS Brake Discs + Brake Pads for CHEVROLET Aveo/Kalos, Cruze, Trax (Rear)

Item No.: PKT572W106
Manufacturer: HERTH+BUSS JAKOPARTS
part number: J3310900, J3610904, J3660907

Items included:

2x Brake Disc Piece - HERTH+BUSS JAKOPARTS
1x Brake Pad Set, disc brake Set - HERTH+BUSS JAKOPARTS
1x Accessory Kit, disc brake pad Set - HERTH+BUSS JAKOPARTS

item specifications

Surface: Coated
Bolt Hole Circle Ø [mm]: 105
Outer Diameter [mm]: 268
No. of holes 1: 1
Component: Braking System
Number of Holes: 5
Brake Disc Type: solid
Fitting Position: Rear Axle
Registration Type: ECE approved
Quantity Unit: Piece
Minimum thickness [mm]: 10
Brake Disc Thickness [mm]: 12
Hub Diameter [mm]: 60
Height [mm]: 44,8
Inner Diameter [mm]: 147
Required quantity: 2

reference numbers - for comparison

ATE - 24.0112-0188.1 / 24011201881
ATE - 24.0312-0188.1 / 24031201881
ATE - 412188
ATE - 512188
BLUE PRINT - ADG043164
BLUE PRINT - ADW194306
BOSCH - 0 986 479 645 / 0986479645
BOSCH - 0 986 479 C57 / 0986479C57
BREMBO - 08.B357.10 / 08B35710
BREMBO - 08.B357.11 / 08B35711
BREMBO - 08.B357.1X / 08B3571X
CHEVROLET - 13502134
CHEVROLET - 13502135
CHEVROLET - 13502136
CHEVROLET - 13502864
DELPHI - BG4199
DELPHI - BG4199C
EUROREPAR - 1636920780
EUROREPAR - 1642773780
EUROREPAR - 1674255880
EUROREPAR - 1686325480
EUROREPAR - 1686721280
EUROREPAR - A221010127
EUROREPAR - A221010127
FERODO - DDF1872
FERODO - DDF1872-1 / DDF18721
FERODO - DDF1872C
FERODO - DDF1872P-D / DDF1872PD
FTE - 9072145
FTE - 9082038
FTE - BS7268
FTE - BS7268B
HELLA - 8DD 355 116-581 / 8DD355116581
HELLA PAGID - 8DD 355 116-581 / 8DD355116581
HERTH+BUSS JAKOPARTS - J3310900
JP Group - 1263106800
JURID - 562651JC
JURID - 562651JC-1 / 562651JC1
MAGNETI MARELLI - 360406110400
MAGNETI MARELLI - 360406224201
MAGNETI MARELLI - 360704008200
MAGNETI MARELLI - 361302040363
MAGNETI MARELLI - 600000090040
MAGNETI MARELLI - DF1104
MAGNETI MARELLI - J3310900
MAGNETI MARELLI - J3310900
MAGNETI MARELLI - MBD0363
METZGER - 6110130
METZGER - 61316.00 / 6131600
MEYLE - 615 523 0009/PD / 6155230009PD
OPEL - 05 69 072 / 0569072
OPEL - 05 69 074 / 0569074
OPEL - 13502134
OPEL - 13502135
OPEL - 1686721280
OPEL - 5 69 072 / 569072
OPEL - 5 69 074 / 569074
OPEL - 95527032
OPTIMAL - BS-8314 / BS8314
OPTIMAL - BS-8314C / BS8314C
PAGID - 55055
RAICAM - RD01263
SKF - VKBD 90298 S2 / VKBD90298S2
TEXTAR - 92205500
TEXTAR - 92205503
TEXTAR - 98200 2055 0 1 PRO / 98200205501PRO
TOPRAN - 208 309 / 208309
TRW - DF6340
VAICO - V40-40019 / V4040019
VAICO - V40-40019 / V4040019
VALEO - 197521
VALEO - 496064
VALEO - 672938
ZIMMERMANN - 430.2622.20 / 430262220
febi bilstein - 39185

item specifications

Component: Braking System
Width 1 [mm]: 116,6
Fitting Position: Rear Axle
Registration Type: ECE approved
WVA Number: 25096
Quantity Unit: Set
Thickness 1 [mm]: 16,2
Wear Warning Contact: with acoustic wear warning
Height 1 [mm]: 42,8

reference numbers - for comparison

ATE - 13.0460-7264.2 / 13046072642
ATE - 13.0460-7309.2 / 13046073092
ATE - 13.0470-7264.2 / 13047072642
ATE - 13.0470-7309.2 / 13047073092
ATE - 607264
ATE - 607309
ATE - LD7264
ATE - LD7309
BLUE PRINT - ADG042123
BLUE PRINT - ADG042143
BLUE PRINT - ADW194205
BOSCH - 0 986 494 435 / 0986494435
BOSCH - 0 986 494 634 / 0986494634
BOSCH - 0 986 494 666 / 0986494666
BOSCH - 0 986 AB1 043 / 0986AB1043
BOSCH - 0 986 AB1 288 / 0986AB1288
BOSCH - 0 986 AB3 103 / 0986AB3103
BOSCH - 0 986 TB3 105 / 0986TB3105
BOSCH - 0986495259
BREMBO - P 59 078 / P59078
BREMBO - P 59 078 / P59078
BREMBO - P 59 080 / P59080
BREMBO - P 59 080 / P59080
BREMBO - P 59 080X / P59080X
BREMBO - P 59 080X / P59080X
BREMBO - P 59 087 / P59087
BREMBO - P 59 087 / P59087
BREMBO - P59080N
BREMBO - P59080N
BREMBO - P59087N
BREMBO - P59087N
CHAMPION - 573335CH
CHEVROLET - 13300867
CHEVROLET - 13319294
CHEVROLET - 13408579
CHEVROLET - 13411380
CHEVROLET - 13411383
CHEVROLET - 13473427
CHEVROLET - 13473428
CHEVROLET - 1680880080
DELPHI - LP2167
DELPHI - LP2466IN
EUROREPAR - 1617287080
EUROREPAR - 1686264080
FERODO - FDB4263
FERODO - FDB4265
FERODO - FSL4263
FERODO - FSL4265
FTE - 9005015
FTE - 9010862
FTE - BL2614A1
HELLA - 8DB 355 007-021 / 8DB355007021
HELLA - 8DB 355 015-211 / 8DB355015211
HELLA - 8DB 355 015-221 / 8DB355015221
HELLA - 8DB 355 023-651 / 8DB355023651
HELLA - 8DB 355 024-861 / 8DB355024861
HELLA - 8DB 355 028-841 / 8DB355028841
HELLA - 8DB 355 032-431 / 8DB355032431
HELLA - 8DB 355 032-441 / 8DB355032441
HELLA PAGID - 8DB 355 015-211 / 8DB355015211
HELLA PAGID - 8DB 355 015-221 / 8DB355015221
HELLA PAGID - 8DB 355 023-651 / 8DB355023651
HELLA PAGID - 8DB 355 024-861 / 8DB355024861
HELLA PAGID - 8DB 355 028-841 / 8DB355028841
HELLA PAGID - 8DB 355 032-431 / 8DB355032431
HELLA PAGID - 8DB 355 032-441 / 8DB355032441
HERTH+BUSS JAKOPARTS - J3610904
JP Group - 1263701510
JP Group - 1263701519
JURID - 573335J
JURID - 573335JC
LEMFÖRDER - 13344 04 / 1334404
MAGNETI MARELLI - 323700009000
MAGNETI MARELLI - 323700050200
MAGNETI MARELLI - 363700201956
MAGNETI MARELLI - 363700201957
MAGNETI MARELLI - 363700459080
MAGNETI MARELLI - 363700459087
MAGNETI MARELLI - 363700559080
MAGNETI MARELLI - 363802161137
MAGNETI MARELLI - 363916060433
MAGNETI MARELLI - P59080MM
MAGNETI MARELLI - P59080MM
MAGNETI MARELLI - P59087MM
MAGNETI MARELLI - P59087MM
MAGNETI MARELLI - PF0433
MAGNETI MARELLI - T1956MM
MAGNETI MARELLI - T1956MM
METZGER - 1170164
METZGER - 1432.02 / 143202
MEYLE - 025 250 9616 / 0252509616
MEYLE - 025 250 9616/PD / 0252509616PD
MEYLE - 025 250 9616/W / 0252509616W
MEYLE - 252509616
OPEL - 05 42 039 / 0542039
OPEL - 05 42 040 / 0542040
OPEL - 13300867
OPEL - 13319293
OPEL - 13319294
OPEL - 13404405
OPEL - 13411380
OPEL - 13411383
OPEL - 13417473
OPEL - 13473427
OPEL - 13473428
OPEL - 13473429
OPEL - 16 05 140 / 1605140
OPEL - 16 05 168 / 1605168
OPEL - 16 05 170 / 1605170
OPEL - 16 05 176 / 1605176
OPEL - 16 05 180 / 1605180
OPEL - 16 05 262 / 1605262
OPEL - 16 05 294 / 1605294
OPEL - 16 05 295 / 1605295
OPEL - 16 05 296 / 1605296
OPEL - 1680880080
OPEL - 1684934380
OPEL - 5 42 040 / 542040
OPEL - 95516192
OPEL - 95516196
OPEL - 95530021
OPEL - 95530022
OPTIMAL - 12398
OPTIMAL - BP-12398 / BP12398
OPTIMAL - BP-12935 / BP12935
PAGID - T1956
PAGID - T1956
PAGID - T1957
PAGID - T1957
PAGID - T2298
PAGID - T2298
RAICAM - 973.0 / 9730
RAICAM - RA.0973.0 / RA09730
RAICAM - RA.0973.0K1 / RA09730K1
RUVILLE - D14688668
RUVILLE - D14688668
SKF - VKBP 90033 A / VKBP90033A
TEXTAR - 25096 162 1 5 / 2509616215
TEXTAR - 25096 162 9 5 / 2509616295
TEXTAR - 2509601
TEXTAR - 2509602
TEXTAR - 2509602SC
TEXTAR - 2509603
TEXTAR - 2509606
TEXTAR - 2509681
TOPRAN - 208 005 / 208005
TRW - GDB1844
TRW - GDB1927
TRW - GDB95024
VAICO - V40-0682 / V400682
VAICO - V40-0682 / V400682
VAICO - V40-0682-1 / V4006821
VAICO - V40-0682-1 / V4006821
VALEO - 301055
VALEO - 601055
VALEO - 606469
VALEO - 670032
ZIMMERMANN - 25096.165.1 / 250961651
ZIMMERMANN - 25096.165.2 / 250961652
ZIMMERMANN - 25096.165.3 / 250961653
febi bilstein - 16893
febi bilstein - 16894

item specifications

Component: Braking System
Fitting Position: Rear Axle
Quantity: 8
Application: Disc Brake Pad
Quantity Unit: Set

reference numbers - for comparison

BOSCH - 1987474747
HERTH+BUSS JAKOPARTS - 4029416271343
HERTH+BUSS JAKOPARTS - J3660907
QUICK BRAKE - 109-1818 / 1091818
TEXTAR - 82516700
TRW - PFK654
