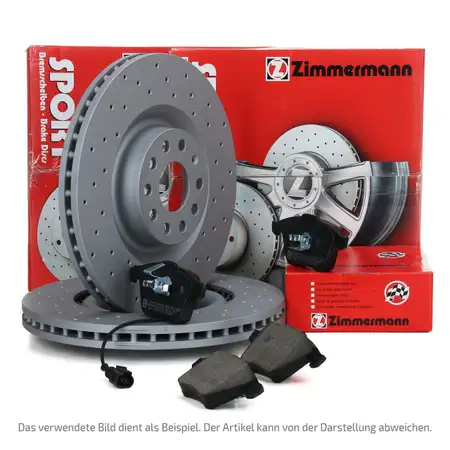

Zimmermann SPORT brake discs and pads (Wako) for CITROEN Jumper, FIAT Ducato, and PEUGEOT (Front)

ZIMMERMANN

Item No.: PKT262W860
Manufacturer: ZIMMERMANN
part number: 180.3013.52, 23917.195.1

Items included:
  • 2x Brake Disc Piece - ZIMMERMANN 180.3013.52
  • 1x Brake Pad Set, disc brake Set - ZIMMERMANN 23917.195.1

Free lightning shipping in DE from 90€
Prioritized ordering possible
questions about this product?
Email-Icon
E-Mail
Trusted Badge Rating
item specifications
  • Component: Braking System
  • Quantity Unit: Piece
  • Brake Disc Type: internally vented
  • Brake Disc Type: Perforated
  • Fitting Position: Front Axle
  • Outer Diameter [mm]: 280
  • Hole Arrangement/Number: 7/5
  • Surface: Coated
  • Version: Sport
  • Bolt Hole Circle Ø [mm]: 118
  • Height [mm]: 68
  • Brake Disc Thickness [mm]: 24
  • Minimum thickness [mm]: 21,9
  • Weight [kg]: 7,22
  • Centering Diameter [mm]: 73
  • Rim Hole Number: 5
  • Test Mark: KBA 60872
reference numbers - for comparison
  • ATE - 24.0124-0127.1 / 24012401271
  • BOSCH - 0 986 479 B96 / 0986479B96
  • BREMBO - 09.8931.21 / 09893121
  • CITROEN / PEUGEOT - 13 005 010 80 / 1300501080
  • CITROEN / PEUGEOT - 16 078 720 80 / 1607872080
  • CITROEN / PEUGEOT - 16 188 782 80 / 1618878280
  • CITROEN / PEUGEOT - 16 877 731 80 / 1687773180
  • CITROEN / PEUGEOT - 4246.L2 / 4246L2
  • CITROEN / PEUGEOT - 4246.L3 / 4246L3
  • CITROEN / PEUGEOT - 4246.L4 / 4246L4
  • CITROEN / PEUGEOT - 4246.X9 / 4246X9
  • CITROEN / PEUGEOT - 4246.Y1 / 4246Y1
  • CITROEN / PEUGEOT - 4249.26 / 424926
  • CITROEN / PEUGEOT - 4249.27 / 424927
  • CITROEN / PEUGEOT - 4249.99 / 424999
  • CITROEN / PEUGEOT - 4249.E2 / 4249E2
  • CITROEN / PEUGEOT - 4249.H8 / 4249H8
  • CITROEN / PEUGEOT - 4249.K3 / 4249K3
  • ECORA - 4250238750888
  • FERODO - DDF1809
  • FERODO - DDF1809C
  • FIAT - 1341044080
  • FIAT - 46 806 233 / 46806233
  • FIAT - 517 28 377 / 51728377
  • FIAT - 517 40 244 / 51740244
  • FIAT - 518 48 618 / 51848618
  • FIAT - 518 48 619 / 51848619
  • FIAT - 717 38 905 / 71738905
  • HELLA PAGID - 8DD 355 122-701 / 8DD355122701
  • HELLA PAGID - 8DD 355 127-811 / 8DD355127811
  • HERTH+BUSS JAKOPARTS - J3302238
  • HERTH+BUSS JAKOPARTS - J3302238
  • JURID - 563026J
  • TEXTAR - 92275105
  • TRW - DF2721
  • ZIMMERMANN - 180.3013.20 / 180301320
  • ZIMMERMANN - 180.3013.52 / 180301352
item specifications
  • Component: Braking System
  • Quantity Unit: Set
  • WVA Number: 23917
  • Fitting Position: Front Axle
  • Wear Warning Contact: incl. wear warning contact
  • Supplementary Article/Supplementary Info: Photo corresponds to scope of supply
  • Thickness [mm]: 20
  • Width [mm]: 141
  • Height [mm]: 66
  • Brake System: BREMBO
  • Test Mark: ECE R90 APPROVED
  • Number of wear indicators [per axle]: 1
reference numbers - for comparison
  • ATE - 13.0460-4978.2 / 13046049782
  • ATE - 604978
  • CITROEN / PEUGEOT - 425242
  • CITROEN / PEUGEOT - 425243
  • CITROEN / PEUGEOT - 425458
  • ECORA - 4250238739883
  • FERODO - FDB1478
  • FERODO - FVR1478
  • FIAT - 77362219
  • FIAT - 9949409
  • FIAT - 9949482
  • FIAT - 9949516
  • JURID - 573113
  • ZIMMERMANN - 23917
  • ZIMMERMANN - 23917.195.1 / 239171951
  • ZIMMERMANN - 23918
manufacturer model type power capacity constr. date kba limitations
