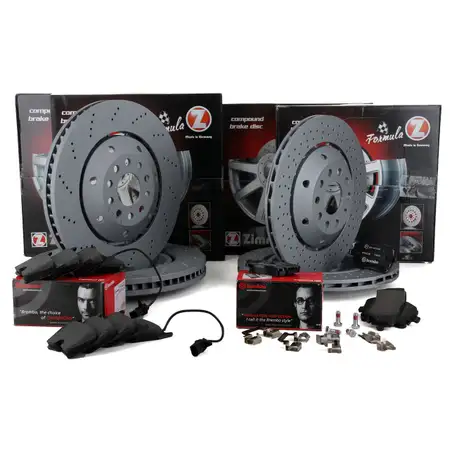

Zimmermann FORMULA Z brake discs + BREMBO brake pads for AUDI RS6 C5 (Front + Rear)

Zimmermann FORMULA Z brake discs + BREMBO brake pads for AUDI RS6 C5 (Front + Rear)

Item No.: PKT472W740
Manufacturer: ZIMMERMANN, BREMBO
part number: 100.3339.70, 100.3340.70, 100.3341.70, 100.3342.70, P 85 078, P 85 076

Items included:

1x Brake Disc Piece - ZIMMERMANN 100.3339.70
1x Brake Disc Piece - ZIMMERMANN 100.3340.70
1x Brake Disc Piece - ZIMMERMANN 100.3341.70
1x Brake Disc Piece - ZIMMERMANN 100.3342.70
1x Brake Pad Set, disc brake Set - BREMBO P 85 078
1x Brake Pad Set, disc brake Set - BREMBO P 85 076

item specifications

Component: Braking System
Quantity Unit: Piece
Brake Disc Type: Vented
Brake Disc Type: Perforated
Brake Disc Type: two-piece brake disc
Brake Disc Type: floating brake disc
Brake Disc Type: Aluminium Brake Disc Hub
Fitting Position: Front Axle Left
Outer Diameter [mm]: 365
Hole Arrangement/Number: 10/5
Surface: Coated
Version: Sport
Version: Formula Z
directional:
Bolt Hole Circle Ø [mm]: 112
Height [mm]: 53
Brake Disc Thickness [mm]: 34
Minimum thickness [mm]: 32,4
Machining: Alloyed/High-carbon
Weight [kg]: 12,20
Centering Diameter [mm]: 68
Rim Hole Number: 5
Test Mark: ECE R90 APPROVED

reference numbers - for comparison

AUDI - 4B3 615 301 E / 4B3615301E
ECORA - 4250238745891
SHW Performance - AFL46411
VAG - 4B3 615 301 E / 4B3615301E
ZIMMERMANN - 100.3339.70 / 100333970

item specifications

Component: Braking System
Quantity Unit: Piece
Brake Disc Type: Vented
Brake Disc Type: Perforated
Brake Disc Type: two-piece brake disc
Brake Disc Type: floating brake disc
Brake Disc Type: Aluminium Brake Disc Hub
Fitting Position: Front Axle Right
Outer Diameter [mm]: 365
Hole Arrangement/Number: 10/5
Surface: Coated
Version: Sport
Version: Formula Z
directional:
Bolt Hole Circle Ø [mm]: 112
Height [mm]: 53
Brake Disc Thickness [mm]: 34
Minimum thickness [mm]: 32,4
Machining: Alloyed/High-carbon
Weight [kg]: 12,30
Centering Diameter [mm]: 68
Rim Hole Number: 5
Test Mark: ECE R90 APPROVED

reference numbers - for comparison

AUDI - 4B3 615 302 A / 4B3615302A
ECORA - 4250238745907
SHW Performance - AFR46412
VAG - 4B3 615 302 A / 4B3615302A
ZIMMERMANN - 100.3340.70 / 100334070

item specifications

Component: Braking System
Quantity Unit: Piece
Brake Disc Type: Vented
Brake Disc Type: Perforated
Brake Disc Type: two-piece brake disc
Brake Disc Type: floating brake disc
Brake Disc Type: Aluminium Brake Disc Hub
Fitting Position: Rear Axle Left
Outer Diameter [mm]: 335
Hole Arrangement/Number: 10/5
Surface: Coated
Version: Formula Z
Version: Sport
directional:
Bolt Hole Circle Ø [mm]: 112
Height [mm]: 48
Brake Disc Thickness [mm]: 22
Minimum thickness [mm]: 20,4
Machining: Alloyed/High-carbon
Weight [kg]: 6,50
Centering Diameter [mm]: 68
Rim Hole Number: 5

reference numbers - for comparison

AUDI - 4B3 615 601 C / 4B3615601C
ECORA - 4250238745921
SHW Performance - ARL46413
VAG - 4B3 615 601 C / 4B3615601C
ZIMMERMANN - 100.3341.70 / 100334170

item specifications

Component: Braking System
Quantity Unit: Piece
Brake Disc Type: Vented
Brake Disc Type: Perforated
Brake Disc Type: two-piece brake disc
Brake Disc Type: floating brake disc
Brake Disc Type: Aluminium Brake Disc Hub
Fitting Position: Rear Axle Right
Outer Diameter [mm]: 335
Hole Arrangement/Number: 10/5
Surface: Coated
Version: Sport
Version: Formula Z
directional:
Bolt Hole Circle Ø [mm]: 112
Height [mm]: 48
Brake Disc Thickness [mm]: 22
Minimum thickness [mm]: 20,4
Machining: Alloyed/High-carbon
Weight [kg]: 6,50
Centering Diameter [mm]: 68
Rim Hole Number: 5

reference numbers - for comparison

AUDI - 4B3 615 602 A / 4B3615602A
ECORA - 4250238745938
SHW Performance - ARR46414
VAG - 4B3 615 602 A / 4B3615602A
ZIMMERMANN - 100.3342.70 / 100334270

item specifications

Component: Braking System
Quantity Unit: Set
WVA Number: 23751
WVA Number: 23764
WVA Number: 23765
Fitting Position: Front Axle
Wear Warning Contact: incl. wear warning contact
Supplementary Article/Supplementary Info: without accessories
Supplementary Article/Supplementary Info 2: with anti-squeak plate
Thickness [mm]: 17
Width [mm]: 97
Height [mm]: 74
Brake System: Brembo
Number of wear indicators [per axle]: 2
Warning Contact Length [mm]: 252

reference numbers - for comparison

ATE - 13046048002
ATE - 604800
AUDI - 3D0698151A
AUDI - 420698151E
AUDI - 420698151G
AUDI - 4B3698151A
AUDI - 4B3698151KJ
AUDI - 4S0698151C
AUDI - 8E0 698 151 Q / 8E0698151Q
AUDI - 8E0698151H
AUDI - 8E0698151P
AUDI - 8T0698151B
AUDI - 8T0698151D
BOSCH - 0986494216
BREMBO - 23751
BREMBO - 23764
BREMBO - 23765
BREMBO - D1029 7934 / D10297934
BREMBO - D1029 7934 / D10297934
BREMBO - P 85 078 / P85078
DELPHI - LP1856
DELPHI - LP1856N18B1
DELPHI - LP1856ND19B1
DELPHI - LP2089
ECORA - 8020584058817
FERODO - FDB1664
FERODO - FDB4165
FTE - 9001790
FTE - 9010966
FTE - BL2758A1
HELLA PAGID - 355009191
HELLA PAGID - 8DB355009191
JURID - 573195J
JURID - 573195JAS
JURID - 573195JC
OPTIMAL - 12517
OPTIMAL - BP12517
PAGID - T1222
PAGID - T1222
PAGID - T1222N
PAGID - T1222N
SEAT - 3D0698151A
SEAT - 4B3698151A
SEAT - 8E0 698 151 Q / 8E0698151Q
SEAT - 8E0698151H
SKODA - 3D0698151A
SKODA - 4B3698151A
SKODA - 8E0 698 151 Q / 8E0698151Q
SKODA - 8E0698151H
TEXTAR - 2375101
TEXTAR - 2488801
TRW - GDB1507
TRW - GDB1688
VALEO - 601758
VALEO - 671513
VOLKSWAGEN - 3D0698151
VOLKSWAGEN - 3D0698151A
VOLKSWAGEN - 4B3698151A
VOLKSWAGEN - 8E0 698 151 Q / 8E0698151Q
VOLKSWAGEN - 8E0698151H
ZIMMERMANN - 248881702

item specifications

Component: Braking System
Quantity Unit: Set
WVA Number: 23326
Fitting Position: Rear Axle
Wear Warning Contact: excl. wear warning contact
Supplementary Article/Supplementary Info: with accessories
Supplementary Article/Supplementary Info 2: with brake caliper screws
Supplementary Article/Supplementary Info 2: with anti-squeak plate
Thickness [mm]: 18
Width [mm]: 117
Height [mm]: 59
Brake System: Lucas

reference numbers - for comparison

ATE - 13046028882
ATE - 13046028892
ATE - 13046028902
ATE - 602888
ATE - 602889
ATE - 602890
AUDI - 4B3698451
AUDI - 4B3698451A
AUDI - 4E0698451
AUDI - 4E4698451
AUDI - 4E4698451A
AUDI - 4F0698451
AUDI - 4F0698451C
AUDI - 4F0698451F
AUDI - 4F0698451H
AUDI - 7H0698451A
AUDI - 8E0698451C
AUDI - 8E0698451H
AUDI - 8E0698451N
AUDI - 8E0698451P
AUDI - JZW698451L
BLUE PRINT - ADV184228
BOSCH - 0986494119
BOSCH - 0986494303
BOSCH - 0986TB2425
BREMBO - 23326
BREMBO - D1018 7921 / D10187921
BREMBO - D1018 7921 / D10187921
BREMBO - P 85 076 / P85076
CHAMPION - 573219CH
CHAMPION - 573220CH
DELPHI - LP1860N18B1
DELPHI - LP1920
DELPHI - LP192017B1
DELPHI - LP1920N18B1
DELPHI - LP1920ND19B1
ECORA - 8020584058794
EUROREPAR - 1635138180
EUROREPAR - 1639377180
EUROREPAR - 1681232080
FERODO - FDB1655
FERODO - FDB1655D
FERODO - FDB1655S
FERODO - FDB5107
FERODO - FSL1655
FTE - 9005018
FTE - 9010452
FTE - BL1872A3
HELLA PAGID - 8DB355010971
HELLA PAGID - 8DB355023481
HERTH+BUSS JAKOPARTS - J3610829
HERTH+BUSS JAKOPARTS - J3610829
JURID - 573219J
JURID - 573220J
JURID - 573220JC
JURID - 573846J
MEYLE - 0252332617
MEYLE - 0252332617PD
OPTIMAL - 12242
OPTIMAL - BP12242
PAGID - T1410
PAGID - T1410
PAGID - T1410N
PAGID - T1410N
RAICAM - RA08191
SEAT - 4B3698451
SEAT - 4B3698451A
SEAT - 4F0698451
SEAT - 4F0698451F
SEAT - 4F0698451H
SEAT - 7H0698451A
SEAT - 8E0698451C
SEAT - 8E0698451H
SEAT - 8E0698451N
SEAT - 8E0698451P
SEAT - JZW698451L
SKODA - 4B3698451
SKODA - 4B3698451A
SKODA - 4F0698451
SKODA - 4F0698451F
SKODA - 4F0698451H
SKODA - 7H0698451A
SKODA - 8E0698451C
SKODA - 8E0698451H
SKODA - 8E0698451N
SKODA - 8E0698451P
SKODA - JZW698451L
TEXTAR - 2332601
TEXTAR - 2332608
TEXTAR - 2332681
TRW - GDB1516
TRW - GDB1661
TRW - GDB1769
VALEO - 208142
VALEO - 301004A
VALEO - 302673A
VALEO - 598752
VALEO - 598769
VALEO - 601004
VALEO - 601747
VALEO - 604063
VALEO - 670004
VOLKSWAGEN - 4B3698451
VOLKSWAGEN - 4B3698451A
VOLKSWAGEN - 4F0698451
VOLKSWAGEN - 4F0698451F
VOLKSWAGEN - 4F0698451H
VOLKSWAGEN - 7H0698451A
VOLKSWAGEN - 8E0698451C
VOLKSWAGEN - 8E0698451H
VOLKSWAGEN - 8E0698451N
VOLKSWAGEN - 8E0698451P
VOLKSWAGEN - JZW698451L
ZIMMERMANN - 238821751
febi bilstein - 16476
febi bilstein - 16588
