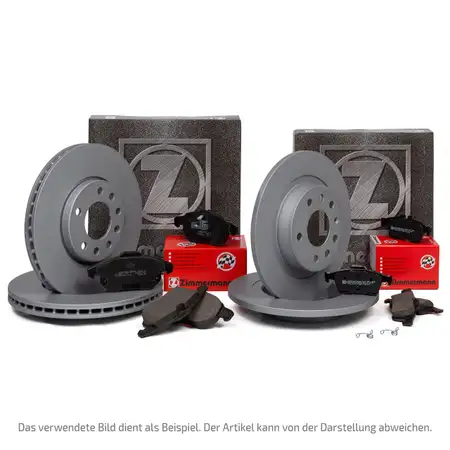

ZIMMERMANN Brake Discs + Pads for OPEL Astra J Zafira Tourer C 16-inch Front + Rear

ZIMMERMANN Brake Discs + Pads for OPEL Astra J Zafira Tourer C 16-inch Front + Rear

ZIMMERMANN

Item No.: PKT562W059
Manufacturer: ZIMMERMANN
part number: 430.2623.20, 25034.185.1, 430.2624.20, 25096.165.1

Items included:
  • 2x Brake Disc Piece - ZIMMERMANN
  • 1x Brake Pad Set, disc brake Set - ZIMMERMANN
  • 2x Brake Disc Piece - ZIMMERMANN
  • 1x Brake Pad Set, disc brake Set - ZIMMERMANN

Free lightning shipping in DE from 90€
Prioritized ordering possible
Questions about the item?
Chat
Email-Icon
E-Mail
Trusted Badge Rating
item specifications
  • Bolt Hole Circle Ø [mm]: 115
  • Outer Diameter [mm]: 300
  • Surface: Coated
  • Component: Braking System
  • Brake Disc Type: internally vented
  • Fitting Position: Front Axle
  • Test Mark: ECE R90 APPROVED
  • Centering Diameter [mm]: 71
  • Quantity Unit: Piece
  • Rim Hole Number: 5
  • Hole Arrangement/Number: 6/5
  • Minimum thickness [mm]: 23
  • Processing: High-carbon
  • Brake Disc Thickness [mm]: 26
  • Weight [kg]: 8,5
  • Height [mm]: 46
reference numbers - for comparison
  • ATE - 24012601661
  • ATE - 24012601911
  • ATE - 24032601661
  • ATE - 426166
  • ATE - 426191
  • ATE - 526166
  • BLUE PRINT - ADG043166
  • BLUE PRINT - ADW194309
  • BOSCH - 0986479644
  • BOSCH - 0986479C56
  • BOSCH - 0986T15210
  • BOSCH - 0986T16664
  • BREMBO - 09B35610
  • BREMBO - 09B35611
  • BREMBO - 09B3561X
  • BREMBO - 09B35631
  • BREMBO - 09B35675
  • CHAMPION - 562631CH
  • CHEVROLET - 13502053
  • CHEVROLET - 23118275
  • DELPHI - BG4278
  • DELPHI - BG4278C
  • DELPHI - BG4278C18B1
  • DELPHI - BG4967C
  • DELPHI - BG4967C18B1
  • EUROREPAR - 1636920680
  • EUROREPAR - 1642762580
  • EUROREPAR - 1674255780
  • EUROREPAR - 1684256880
  • EUROREPAR - 1686335180
  • EUROREPAR - 1686717880
  • FERODO - DDF1870
  • FERODO - DDF18701
  • FERODO - DDF1870C
  • FERODO - DDF1870C1
  • FERODO - DDF1870CD
  • FERODO - DDF1870X
  • FERODO - DDF2811C
  • FTE - 9071212
  • FTE - 9081030
  • FTE - BS7280
  • FTE - BS7280B
  • HELLA - 355116591
  • HELLA - 355129171
  • HELLA - 8DD355116591
  • HELLA - 8DD355129171
  • HELLA PAGID - 355116591
  • HELLA PAGID - 355129171
  • HELLA PAGID - 8DD355116591
  • HELLA PAGID - 8DD355129171
  • HERTH+BUSS JAKOPARTS - J3300902
  • HERTH+BUSS JAKOPARTS - J3300902
  • JP Group - 1263107000
  • JP Group - 1263107500
  • JURID - 562631JC
  • JURID - 562631JC1
  • JURID - 563310JC
  • JURID - 563447JC1
  • MAGNETI MARELLI - 360406166101
  • MAGNETI MARELLI - 360406232005
  • METZGER - 6110583
  • MEYLE - 6155210002PD
  • MEYLE - 6155210006PD
  • MEYLE - MBD2037PD
  • OPEL - 13502051
  • OPEL - 13502051
  • OPEL - 13502052
  • OPEL - 13502052
  • OPEL - 13503988
  • OPEL - 13517846
  • OPEL - 13521004
  • OPEL - 23118060
  • OPEL - 5 69 070 / 569070
  • OPEL - 5 69 076 / 569076
  • OPEL - 569070
  • OPEL - 569076
  • OPEL - 569082
  • OPEL - 569098
  • OPEL - 95527031
  • OPEL - 95527031
  • OPTIMAL - BS8316
  • OPTIMAL - BS8316BS
  • OPTIMAL - BS8316C
  • OPTIMAL - BS8316HC
  • OPTIMAL - BS9514HC
  • PAGID - 55056
  • PAGID - 55056NHC
  • PAGID - 55056PRO
  • TEXTAR - 92205600
  • TEXTAR - 92205603
  • TEXTAR - 98200205601
  • TRW - DF7923
  • TRW - DF7923S
  • VAICO - V4080009
  • VAICO - V4080009
  • VALEO - 196003
  • VALEO - 197815
  • VALEO - 497017
  • VALEO - 672581
  • ZIMMERMANN - 4250238746966
  • ZIMMERMANN - 430.2623.20 / 430262320
  • ZIMMERMANN - 430262320
  • ZIMMERMANN - 430262352
  • ZIMMERMANN - 430262370
  • ZIMMERMANN - 430262372
  • ZIMMERMANN - 430262375
  • ZIMMERMANN - 430264520
  • ZIMMERMANN - 430264552
  • febi bilstein - 39190
item specifications
  • Component: Braking System
  • Width [mm]: 148
  • Fitting Position: Front Axle
  • Number of wear indicators [per axle]: 2
  • Test Mark: ECE R90 APPROVED
  • WVA Number: 25034
  • Quantity Unit: Set
  • Supplementary Article/Supplementary Info: Photo corresponds to scope of supply
  • Thickness [mm]: 18
  • Height [mm]: 61
  • Brake System: BOSCH
  • Wear Warning Contact: with acoustic wear warning
reference numbers - for comparison
  • ATE - 13.0460-7263.2 / 13046072632
  • ATE - 13.0470-7263.2 / 13047072632
  • BOSCH - 0 986 494 434 / 0986494434
  • BOSCH - 0 986 494 657 / 0986494657
  • BREMBO - P 59 077 / P59077
  • BREMBO - P 59 077 / P59077
  • BREMBO - P 59 077X / P59077X
  • BREMBO - P 59 077X / P59077X
  • FERODO - FDB4264
  • FERODO - FDB4264G
  • GENERAL MOTORS - 13301234
  • GENERAL MOTORS - 13412810
  • GENERAL MOTORS - 22799077
  • GENERAL MOTORS - 95516193
  • HELLA PAGID - 8DB 355 015-241 / 8DB355015241
  • HERTH+BUSS JAKOPARTS - J3600914
  • HERTH+BUSS JAKOPARTS - J3600914
  • JURID - 573325J
  • JURID - 573325JC
  • OPEL - 1605178
  • OPEL - 1605263
  • OPEL - 1680880380
  • OPEL - 542115
  • OPEL - 605135
  • RAICAM - RA.0968.0 / RA09680
  • TEXTAR - 2503401
  • TRW - GDB1847
  • ZIMMERMANN - 25034
  • ZIMMERMANN - 25034.185.1 / 250341851
  • ZIMMERMANN - 25035
  • ZIMMERMANN - 25036
  • ZIMMERMANN - 4250238750123
  • ZIMMERMANN - D1467-8667 / D14678667
  • ZIMMERMANN - D1467-8667 / D14678667
item specifications
  • Bolt Hole Circle Ø [mm]: 115
  • Outer Diameter [mm]: 292
  • Surface: Coated
  • Component: Braking System
  • Brake Disc Type: solid
  • Fitting Position: Rear Axle
  • Test Mark: ECE R90 APPROVED
  • Centering Diameter [mm]: 71
  • Quantity Unit: Piece
  • Rim Hole Number: 5
  • Hole Arrangement/Number: 6/5
  • Minimum thickness [mm]: 10
  • Brake Disc Thickness [mm]: 12
  • Weight [kg]: 5,3
  • Height [mm]: 45
reference numbers - for comparison
  • ATE - 24011201891
  • ATE - 24031201891
  • ATE - 412189
  • ATE - 512189
  • BLUE PRINT - ADG043160
  • BLUE PRINT - ADW194307
  • BOSCH - 0986479646
  • BOSCH - 0986479C58
  • BOSCH - 0986T15211
  • BOSCH - 0986T16665
  • BREMBO - 08B35110
  • BREMBO - 08B35111
  • BREMBO - 08B3511X
  • CHAMPION - 562640CH
  • CHEVROLET - 13502139
  • CHEVROLET - 23118061
  • CHEVROLET - 23118282
  • DELPHI - BG4279
  • DELPHI - BG4279C
  • DELPHI - BG4279C18B1
  • EUROREPAR - 1636920880
  • EUROREPAR - 1642775080
  • EUROREPAR - 1674255980
  • EUROREPAR - 1684281780
  • EUROREPAR - 1687775980
  • EUROREPAR - 1690938280
  • FERODO - DDF1871
  • FERODO - DDF18711
  • FERODO - DDF1871C
  • FERODO - DDF1871CD
  • FTE - 9072098
  • FTE - 9082248
  • FTE - BS7258
  • FTE - BS7258B
  • HELLA - 355116601
  • HELLA - 8DD355116601
  • HELLA PAGID - 355116601
  • HELLA PAGID - 8DD355116601
  • HERTH+BUSS JAKOPARTS - J3310901
  • HERTH+BUSS JAKOPARTS - J3310901
  • JP Group - 1263204200
  • JURID - 562640JC
  • JURID - 562640JC1
  • MAGNETI MARELLI - 360406179602
  • METZGER - 6110247
  • MEYLE - 6155230006PD
  • MEYLE - 6155230010PD
  • MEYLE - MBD2050PD
  • OPEL - 13502137
  • OPEL - 13502138
  • OPEL - 13504280
  • OPEL - 23118061
  • OPEL - 569071
  • OPEL - 569075
  • OPEL - 569085
  • OPEL - 569099
  • OPEL - 95527033
  • OPTIMAL - BS8318
  • OPTIMAL - BS8318C
  • PAGID - 55057
  • PAGID - 55057NC
  • PAGID - 55057PRO
  • TEXTAR - 92205700
  • TEXTAR - 98200205701
  • TOPRAN - 208310
  • TRW - DF6363
  • TRW - DF6370
  • TRW - DF7929
  • VAICO - V4040020
  • VAICO - V4040020
  • VALEO - 196004
  • VALEO - 496066
  • VALEO - 672674
  • ZIMMERMANN - 4250238746973
  • ZIMMERMANN - 430.2624.20 / 430262420
  • ZIMMERMANN - 430262420
  • febi bilstein - 39189
item specifications
  • Component: Braking System
  • Width [mm]: 116
  • Fitting Position: Rear Axle
  • Number of wear indicators [per axle]: 2
  • Test Mark: ECE R90 APPROVED
  • WVA Number: 25096
  • Quantity Unit: Set
  • Supplementary Article/Supplementary Info: Photo corresponds to scope of supply
  • Thickness [mm]: 16
  • Height [mm]: 43
  • Brake System: BOSCH
  • Wear Warning Contact: with acoustic wear warning
reference numbers - for comparison
  • ATE - 13.0460-7264.2 / 13046072642
  • ATE - 13.0460-7309.2 / 13046073092
  • ATE - 13.0470-7264.2 / 13047072642
  • ATE - 13.0470-7309.2 / 13047073092
  • BOSCH - 0 986 494 634 / 0986494634
  • BOSCH - 0 986 494 666 / 0986494666
  • BREMBO - P 59 080 / P59080
  • BREMBO - P 59 080 / P59080
  • BREMBO - P 59 080X / P59080X
  • BREMBO - P 59 080X / P59080X
  • BREMBO - P 59 087 / P59087
  • BREMBO - P 59 087 / P59087
  • FERODO - FDB4265
  • GENERAL MOTORS - 13319294
  • GENERAL MOTORS - 13411380
  • GENERAL MOTORS - 13411383
  • GENERAL MOTORS - 13417473
  • GENERAL MOTORS - 13473427
  • GENERAL MOTORS - 95516192
  • GENERAL MOTORS - 95516196
  • HELLA PAGID - 8DB 355 015-221 / 8DB355015221
  • HELLA PAGID - 8DB 355 024-861 / 8DB355024861
  • HERTH+BUSS JAKOPARTS - J3610904
  • HERTH+BUSS JAKOPARTS - J3610904
  • JURID - 573335J
  • JURID - 573335JC
  • OPEL - 13404405
  • OPEL - 13473428
  • OPEL - 16 172 870 80 / 1617287080
  • OPEL - 1605170
  • OPEL - 1605176
  • OPEL - 1605180
  • OPEL - 1605262
  • OPEL - 1605266
  • OPEL - 1605294
  • OPEL - 1605296
  • OPEL - 542 039 / 542039
  • OPEL - 542 040 / 542040
  • RAICAM - 973.0 / 9730
  • TEXTAR - 2509602
  • TEXTAR - 2509606
  • TRW - GDB1844
  • ZIMMERMANN - 25096
  • ZIMMERMANN - 25096.165.1 / 250961651
  • ZIMMERMANN - 25096.165.2 / 250961652
  • ZIMMERMANN - 25096.165.3 / 250961653
  • ZIMMERMANN - 25097
  • ZIMMERMANN - 25098
  • ZIMMERMANN - 4250238750130
  • ZIMMERMANN - D1468-8668 / D14688668
  • ZIMMERMANN - D1468-8668 / D14688668
Name:
OTTO ZIMMERMANN GMBH
Website:
www.otto-zimmermann.de
E-Mail:
info@otto-zimmermann.de
Phone:
0049(0)7261 94514-0
Street, House no:
Am Leitzelbach 8
ZIP / City:
74889 Sinsheim - Duehren
Country:
Germany
