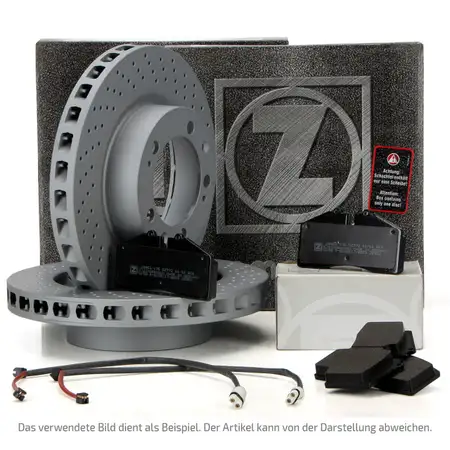

ZIMMERMANN Wako brake discs and pads for PORSCHE 997 3.6 Carrera 325 hp (models up to December 2004) – front

ZIMMERMANN Wako brake discs and pads for PORSCHE 997 3.6 Carrera 325 hp (models up to December 2004) – front

ZIMMERMANN Wako brake discs and pads for PORSCHE 997 3.6 Carrera 325 hp (models up to December 2004) – front

ZIMMERMANN Wako brake discs and pads for PORSCHE 997 3.6 Carrera 325 hp (models up to December 2004) – front

ZIMMERMANN Wako brake discs and pads for PORSCHE 997 3.6 Carrera 325 hp (models up to December 2004) – front

ZIMMERMANN Wako brake discs and pads for PORSCHE 997 3.6 Carrera 325 hp (models up to December 2004) – front

ZIMMERMANN Wako brake discs and pads for PORSCHE 997 3.6 Carrera 325 hp (models up to December 2004) – front

ZIMMERMANN Wako brake discs and pads for PORSCHE 997 3.6 Carrera 325 hp (models up to December 2004) – front

ZIMMERMANN Wako brake discs and pads for PORSCHE 997 3.6 Carrera 325 hp (models up to December 2004) – front

ZIMMERMANN

CARIPAR

Item No.: PKT662W456
Manufacturer: ZIMMERMANN, CARIPAR
part number: 460.1525.20, 460.1526.20, 24049.170.9, GBK 830, GBK 743

Items included:

1x Brake Disc Piece - ZIMMERMANN
1x Brake Disc Piece - ZIMMERMANN
1x Brake Pad Set, disc brake Set - ZIMMERMANN
1x Warning Contact, brake pad wear Piece - CARIPAR
1x Warning Contact, brake pad wear Piece - CARIPAR

item specifications

Bolt Hole Circle Ø [mm]: 130
Outer Diameter [mm]: 318
Surface: Coated
Component: Braking System
Brake Disc Type: internally vented
Brake Disc Type: Perforated
Fitting Position: Front Axle Left
Test Mark: ECE R90 APPROVED
Centering Diameter [mm]: 98
Quantity Unit: Piece
Rim Hole Number: 5
Hole Arrangement/Number: 9/5
Minimum thickness [mm]: 26
Brake Disc Thickness [mm]: 28
Weight [kg]: 8,62
directional:
Height [mm]: 67

reference numbers - for comparison

item specifications

Bolt Hole Circle Ø [mm]: 130
Outer Diameter [mm]: 318
Surface: Coated
Component: Braking System
Brake Disc Type: internally vented
Brake Disc Type: Perforated
Fitting Position: Front Axle Right
Test Mark: ECE R90 APPROVED
Centering Diameter [mm]: 98
Quantity Unit: Piece
Rim Hole Number: 5
Hole Arrangement/Number: 9/5
Minimum thickness [mm]: 26
Brake Disc Thickness [mm]: 28
Weight [kg]: 8,62
directional:
Height [mm]: 67

reference numbers - for comparison

item specifications

Component: Braking System
Width [mm]: 121
Fitting Position: Front and Rear
Test Mark: ECE R90 APPROVED
WVA Number: 24049
Quantity Unit: Set
Supplementary Article/Supplementary Info: with counterweights
Supplementary Article/Supplementary Info: Photo corresponds to scope of supply
Version: pb:z
Thickness [mm]: 17
Height [mm]: 86
Brake System: BREMBO
Wear Warning Contact: prepared for wear warning indicator

reference numbers - for comparison

item specifications

Component: Braking System
Fitting Position: Front Axle Right
Application: Lining Wear
Warning Contact Length [mm]: 375
Quantity Unit: Piece

reference numbers - for comparison

BOSCH - 1 987 473 024 / 1987473024
BREMBO - A 00 335 / A00335
BREMBO - A 00 335 / A00335
BREMBO - A 00 406 / A00406
BREMBO - A 00 406 / A00406
Caripar - 620024
Caripar - GBK 830 / GBK830
HELLA - 8DK 355 251-141 / 8DK355251141
HELLA - 8DK 355 251-171 / 8DK355251171
HELLA PAGID - 8DK 355 251-141 / 8DK355251141
HELLA PAGID - 8DK 355 251-171 / 8DK355251171
PAGID - P8122
PAGID - P8122
PAGID - P8125
PAGID - P8125
PORSCHE - 997 612 759 00 / 99761275900
PORSCHE - 997 612 759 00 / 99761275900
PORSCHE - 997 612 759 01 / 99761275901
TEXTAR - 98037200
TEXTAR - 98037500
TRW - GIC316
febi bilstein - 33402

item specifications

Component: Braking System
Fitting Position: Front Axle Left
Application: Lining Wear
Warning Contact Length [mm]: 355
Quantity Unit: Piece

reference numbers - for comparison

ATE - 24.8190-0025.2 / 24819000252
BOSCH - 1 987 473 023 / 1987473023
BREMBO - A 00 334 / A00334
BREMBO - A 00 334 / A00334
BREMBO - A 00 406 / A00406
BREMBO - A 00 406 / A00406
BREMBO - A00334
BREMBO - A00334
Caripar - 620025
Caripar - GBK 743 / GBK743
FERODO - FWI385
HELLA - 8DK 355 251-141 / 8DK355251141
HELLA - 8DK 355 251-161 / 8DK355251161
HELLA PAGID - 8DK 355 251-141 / 8DK355251141
HELLA PAGID - 8DK 355 251-141 / 8DK355251141
HELLA PAGID - 8DK 355 251-161 / 8DK355251161
JURID - 581457
PAGID - P8122
PAGID - P8122
PAGID - P8124
PAGID - P8124
PORSCHE - 997 612 756 00 / 99761275600
PORSCHE - 997 612 756 00 / 99761275600
PORSCHE - 997 612 756 01 / 99761275601
TEXTAR - 98037200
TEXTAR - 98037200
TEXTAR - 98037400
TRW - GIC315
febi bilstein - 34072

Name:

OTTO ZIMMERMANN GMBH

Website:

www.otto-zimmermann.de

E-Mail:

info@otto-zimmermann.de

Phone:

0049(0)7261 94514-0

Street, House no:

Am Leitzelbach 8

ZIP / City:

74889 Sinsheim - Duehren

Country:

Germany
