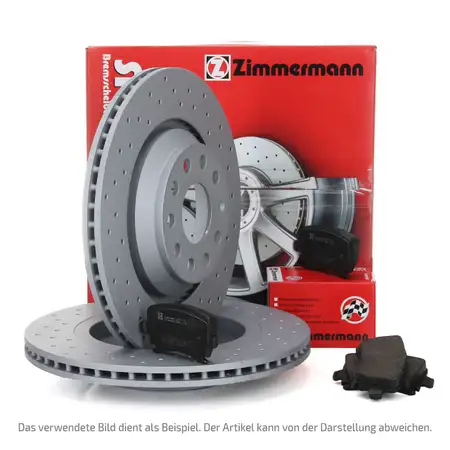

Zimmermann SPORT Brake Discs + Brake Pads for AUDI 80 B4 Convertible B3 (Front)

Zimmermann SPORT Brake Discs + Brake Pads for AUDI 80 B4 Convertible B3 (Front)

ZIMMERMANN

Item No.: PKT262W870
Manufacturer: ZIMMERMANN
part number: 100.1222.52, 20778.196.1

Items included:
  • 2x Brake Disc Piece - ZIMMERMANN 100.1222.52
  • 1x Brake Pad Set, disc brake Set - ZIMMERMANN 20778.196.1

questions about this product?
Share
Email-Icon
E-Mail
Trusted Badge Rating
item specifications
  • Component: Braking System
  • Quantity Unit: Piece
  • Brake Disc Type: Externally Vented
  • Brake Disc Type: Perforated
  • Fitting Position: Front Axle
  • Outer Diameter [mm]: 280
  • Hole Arrangement/Number: 4/4
  • Surface: Coated
  • Version: Sport
  • Bolt Hole Circle Ø [mm]: 108
  • Height [mm]: 57
  • Brake Disc Thickness [mm]: 22
  • Minimum thickness [mm]: 20
  • Machining: High-carbon
  • Weight [kg]: 6,10
  • Centering Diameter [mm]: 68
  • Rim Hole Number: 4
  • Test Mark: KBA 60872
reference numbers - for comparison
  • ATE - 24012201391
  • ATE - 24032201391
  • ATE - 422139
  • AUDI - 8A0615301A
  • AUDI - 8A0615301E
  • BLUE PRINT - ADV184387
  • BOSCH - 0986478128
  • BOSCH - BD112
  • BREMBO - 09782110
  • BREMBO - 09782111
  • BREMBO - 09782114
  • DELPHI - BG2784
  • ECORA - 4250238749561
  • FERODO - DDF517
  • FERODO - DDF5171
  • FERODO - DDF517C
  • FERODO - DDF517C1
  • FTE - 9072280
  • FTE - BS3933
  • HELLA - 355103091
  • HELLA - 355127131
  • HELLA - 8DD355103091
  • HELLA - 8DD355127131
  • HELLA PAGID - 355103091
  • HELLA PAGID - 355127131
  • HELLA PAGID - 8DD355103091
  • HELLA PAGID - 8DD355127131
  • JP Group - 1163112200
  • JURID - 561689J
  • JURID - 561689J1
  • JURID - 561689JC
  • METZGER - 6110305
  • MEYLE - 1155211110
  • MEYLE - MBD0236
  • OPTIMAL - BS2950
  • OPTIMAL - BS2950C
  • PAGID - 53940
  • PAGID - 53940N
  • RAICAM - RD00867
  • SEAT - 8A0615301A
  • SEAT - 8A0615301E
  • SEBRO - 2382
  • SKODA - 8A0615301A
  • SKODA - 8A0615301E
  • TEXTAR - 92060600
  • TEXTAR - 98200060601
  • TRW - DF2601
  • TRW - DF2601S
  • TRW - RCDI01810
  • VAICO - V1080051
  • VAICO - V1080051
  • VALEO - 186291
  • VALEO - 673272
  • VOLKSWAGEN - 8A0615301A
  • VOLKSWAGEN - 8A0615301E
  • WÜRTH - 980820139
  • ZIMMERMANN - 100.1222.52 / 100122252
  • ZIMMERMANN - 100122200
  • ZIMMERMANN - 100122220
  • ZIMMERMANN - 100122270
  • ZIMMERMANN - 100122272
  • ZIMMERMANN - 100122275
  • febi bilstein - 08573
  • febi bilstein - 8573
item specifications
  • Component: Braking System
  • Quantity Unit: Set
  • WVA Number: 20778
  • Fitting Position: Front Axle
  • Supplementary Article/Supplementary Info: Photo corresponds to scope of supply
  • Thickness [mm]: 19
  • Width [mm]: 119
  • Height [mm]: 70
  • Brake System: LUCAS-GIRLING
  • Test Mark: ECE R90 APPROVED
reference numbers - for comparison
  • ATE - 13.0460-2934.2 / 13046029342
  • BOSCH - 0 986 466 700 / 0986466700
  • BREMBO - P 85 092 / P85092
  • BREMBO - P 85 092 / P85092
  • ECORA - 4250238741824
  • FERODO - FDB775
  • HELLA PAGID - 8DB 355 017-701 / 8DB355017701
  • JURID - 571357J
  • RAICAM - RA.0310.1 / RA03101
  • RAICAM - RA.0813.1 / RA08131
  • TEXTAR - 2066921
  • TRW - GDB826
  • VAG - 437 698 151 / 437698151
  • VAG - 440 615 116 A / 440615116A
  • VAG - 440 698 151 A / 440698151A
  • VAG - 443 698 151 E / 443698151E
  • VAG - 8A0 615 115 D / 8A0615115D
  • VAG - 8A0 698 151 A / 8A0698151A
  • VAG - 8D0 698 151 L / 8D0698151L
  • ZIMMERMANN - 20669
  • ZIMMERMANN - 20778
  • ZIMMERMANN - 20778.196.1 / 207781961
Name:
OTTO ZIMMERMANN GMBH
Website:
www.otto-zimmermann.de
E-Mail:
info@otto-zimmermann.de
Phone:
0049(0)7261 94514-0
Street, House no:
Am Leitzelbach 8
ZIP / City:
74889 Sinsheim - Duehren
Country:
Germany
