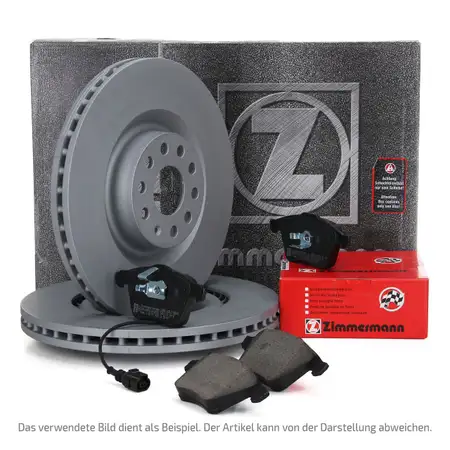

ZIMMERMANN Brake Discs + Pads (Wako) for CITROEN C8 Jumpy and PEUGEOT 807 Expert (Front)

ZIMMERMANN Brake Discs + Pads (Wako) for CITROEN C8 Jumpy and PEUGEOT 807 Expert (Front)

ZIMMERMANN Brake Discs + Pads (Wako) for CITROEN C8 Jumpy and PEUGEOT 807 Expert (Front)

ZIMMERMANN Brake Discs + Pads (Wako) for CITROEN C8 Jumpy and PEUGEOT 807 Expert (Front)

ZIMMERMANN Brake Discs + Pads (Wako) for CITROEN C8 Jumpy and PEUGEOT 807 Expert (Front)

ZIMMERMANN Brake Discs + Pads (Wako) for CITROEN C8 Jumpy and PEUGEOT 807 Expert (Front)

ZIMMERMANN Brake Discs + Pads (Wako) for CITROEN C8 Jumpy and PEUGEOT 807 Expert (Front)

ZIMMERMANN Brake Discs + Pads (Wako) for CITROEN C8 Jumpy and PEUGEOT 807 Expert (Front)

ZIMMERMANN

Item No.: PKT662W043
Manufacturer: ZIMMERMANN
part number: 180.3017.20, 20261.190.1

Items included:

2x Brake Disc Piece - ZIMMERMANN 180.3017.20
1x Brake Pad Set, disc brake Set - ZIMMERMANN 20261.190.1

item specifications

Component: Braking System
Quantity Unit: Piece
Brake Disc Type: internally vented
Fitting Position: Front Axle
Outer Diameter [mm]: 285
Hole Arrangement/Number: 6/5
Surface: Coated
Bolt Hole Circle Ø [mm]: 98
Height [mm]: 44
Brake Disc Thickness [mm]: 28
Minimum thickness [mm]: 26
Weight [kg]: 7,96
Centering Diameter [mm]: 59
Rim Hole Number: 5
Test Mark: ECE R90 APPROVED

reference numbers - for comparison

ATE - 24.0128-0136.1 / 24012801361
ATE - 24.0328-0136.1 / 24032801361
BOSCH - 0 986 479 114 / 0986479114
BOSCH - 0 986 479 S62 / 0986479S62
BREMBO - 09.8003.10 / 09800310
CITROEN / PEUGEOT - 1606309280
CITROEN / PEUGEOT - 4246.P1 / 4246P1
CITROEN / PEUGEOT - 4246.P2 / 4246P2
CITROEN / PEUGEOT - 4249.E1 / 4249E1
CITROEN / PEUGEOT - 4249.H7 / 4249H7
ECORA - 4250238761884
FERODO - DDF1165C-1 / DDF1165C1
FIAT - 1325772080
HELLA PAGID - 8DD 355 108-761 / 8DD355108761
JURID - 562224JC
RAICAM - RD00119
TEXTAR - 92115003
TRW - DF4257
ZIMMERMANN - 180.3017.20 / 180301720
ZIMMERMANN - 180.3017.52 / 180301752

item specifications

Component: Braking System
Quantity Unit: Set
WVA Number: 20261
Fitting Position: Front Axle
Wear Warning Contact: incl. wear warning contact
Supplementary Article/Supplementary Info: Photo corresponds to scope of supply
Thickness [mm]: 19
Width [mm]: 147
Height [mm]: 60
Brake System: LUCAS-GIRLING
Test Mark: ECE R90 APPROVED
Number of wear indicators [per axle]: 2

reference numbers - for comparison

ATE - 13.0460-2863.2 / 13046028632
ATE - 602863
BOSCH - 0 986 424 789 / 0986424789
BREMBO - P 23 090 / P23090
BREMBO - P 23 090 / P23090
CITROEN / PEUGEOT - 4252 20 / 425220
CITROEN / PEUGEOT - 4252 31 / 425231
CITROEN / PEUGEOT - 4254 57 / 425457
ECORA - 4250238728948
FERODO - FDB1556
FIAT - 77362236
FIAT - 77364447
FIAT - 9949552
HELLA PAGID - 8DB 355 010-501 / 8DB355010501
RAICAM - RA.0796.0 / RA07960
TEXTAR - 2026101
TRW - GDB1503
ZIMMERMANN - 20261.190.1 / 202611901
ZIMMERMANN - 20261.190.2 / 202611902
ZIMMERMANN - 20267

manufacturer	model	type	power	capacity	constr. date	kba	limitations
