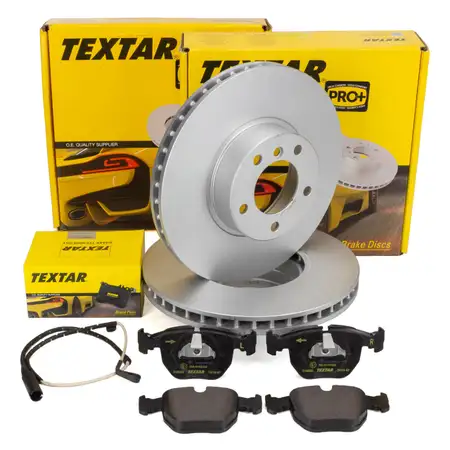

TEXTAR Brake Discs + Pads + Sensor for BMW 5 Series E39 530i, 535i, 540i, 530d (2000 and later) – Front

TEXTAR Brake Discs + Pads + Sensor for BMW 5 Series E39 530i, 535i, 540i, 530d (2000 and later) – Front

Item No.: PKT152W056
Manufacturer: TEXTAR
part number: 92107105, 2148602, 34 35 2 229 018

Items included:

2x Brake Disc Piece - TEXTAR
1x Brake Pad Set, disc brake Set - TEXTAR
1x Warning Contact, brake pad wear Piece

item specifications

Bolt Hole Circle Ø [mm]: 120
Surface: Coated
Outer Diameter [mm]: 324
Component: Braking System
Brake Disc Type: internally vented
Fitting Position: Front Axle
Packaging length [cm]: 35,8
Centering Diameter [mm]: 79
Quantity Unit: Piece
Packaging height [cm]: 10,5
Hole Arrangement/Number: 05/06
Minimum thickness [mm]: 28,4
Packaging width [cm]: 35,8
Processing: High-carbon
Supplementary Article/Supplementary Info 2: without wheel hub
Supplementary Article/Supplementary Info 2: without wheel bearing
Supplementary Article/Supplementary Info 2: without wheel studs
Brake Disc Thickness [mm]: 30
Weight [kg]: 10,6
Height [mm]: 73,8
Inner Diameter [mm]: 148,8
Wheel Bolt Bore Diameter [mm]: 14,7

reference numbers - for comparison

ATE - 24013001071
ATE - 24033001071
ATE - 430107
ATE - 530107
BLUE PRINT - ADB114342
BMW - 0392525
BMW - 1165859
BMW - 34110392525
BMW - 34111165859
BMW - 34116767059
BMW - 6767059
BOSCH - 0986478024
BREMBO - 09896110
BREMBO - 09896111
BREMBO - 09896114
BREMBO - 09896121
BREMBO - 09896176
CHAMPION - 562384CH1
DELPHI - BG9005
EUROREPAR - 1684307980
FERODO - DDF1202
FERODO - DDF12021
FERODO - DDF1202C
FERODO - DDF1202C1
FTE - 9071254
FTE - 9081185
FTE - 9082561
FTE - BS5310
FTE - BS5310B
FTE - BS5310HB
HELLA - 355107701
HELLA - 355107711
HELLA - 355107761
HELLA - 355121031
HELLA - 355122002
HELLA - 355124301
HELLA - 355127621
HELLA - 8DD355107701
HELLA - 8DD355107711
HELLA - 8DD355107761
HELLA - 8DD355121031
HELLA - 8DD355122002
HELLA - 8DD355124301
HELLA - 8DD355127621
HELLA PAGID - 355107701
HELLA PAGID - 355107711
HELLA PAGID - 355107761
HELLA PAGID - 355121031
HELLA PAGID - 355122002
HELLA PAGID - 355124301
HELLA PAGID - 355127621
HELLA PAGID - 8DD355107701
HELLA PAGID - 8DD355107711
HELLA PAGID - 8DD355107761
HELLA PAGID - 8DD355121031
HELLA PAGID - 8DD355122002
HELLA PAGID - 8DD355124301
HELLA PAGID - 8DD355127621
JURID - 562200J
JURID - 562200JC
JURID - 562384J1
JURID - 562384JC
JURID - 562384JC1
METZGER - 6110171
MEYLE - 3155213024
MEYLE - 3155213024PD
MEYLE - 3835213024PD
MEYLE - MBD0743
MEYLE - MBD1578PD
OPTIMAL - BS7590
OPTIMAL - BS7590C
PAGID - 50320
PAGID - 50320HC
PAGID - 50320PRO
PAGID - 54320PRO
PAGID - 65027
TEXTAR - 4019722287343
TEXTAR - 92107100
TEXTAR - 92107103
TEXTAR - 92107105
TEXTAR - 92107110
TEXTAR - 98200107101
TRUCKTEC AUTOMOTIVE - 0834067
TRW - DF4248
TRW - DF4248S
VALEO - 186884
VALEO - 673292
ZIMMERMANN - 150129600
ZIMMERMANN - 150129620
ZIMMERMANN - 150129652
ZIMMERMANN - 150129654
ZIMMERMANN - 150129655
ZIMMERMANN - 150129670
ZIMMERMANN - 150129672
ZIMMERMANN - 150129675
febi bilstein - 18557

item specifications

Component: Braking System
Width [mm]: 156,5
Fitting Position: Front Axle
Packaging length [cm]: 17
Observe assembly information:
WVA Number: 21486
Quantity Unit: Set
Packaging height [cm]: 8,3
Article Number of recommended accessories: 82059100
Packaging width [cm]: 12
Thickness [mm]: 19,3
Weight [kg]: 2
directional:
Height [mm]: 73,6
Brake System: Teves
Wear Warning Contact: prepared for wear warning indicator

reference numbers - for comparison

ATE - 13046070782
ATE - 13047070782
ATE - 607078
ATE - LD7078
BLUE PRINT - ADB114245
BMW - 1163307
BMW - 1165227
BMW - 2157589
BMW - 2180419
BMW - 2229031
BMW - 2282090
BMW - 2282165
BMW - 2282166
BMW - 2282556
BMW - 2357230
BMW - 34 11 6 761 252 / 34116761252
BMW - 34111163307
BMW - 34111165227
BMW - 34112157589
BMW - 34112180419
BMW - 34112229031
BMW - 34112282090
BMW - 34112282165
BMW - 34112282166
BMW - 34112282556
BMW - 34112357230
BMW - 34113427503
BMW - 34116761252
BMW - 3427503
BMW - 6761252
BOSCH - 0986424584
BOSCH - 0986494028
BOSCH - 0986BB0839
BOSCH - 0986TB2292
BOSCH - 0986TB2743
BOSCH - BC1042
BOSCH - BE681
BOSCH - BE681H
BOSCH - BP330
BOSCH - BPBMWF6
BOSCH - F03B050007
BOSCH - F03B050007
BREMBO - P06021
BREMBO - P06021
BREMBO - P06021N
BREMBO - P06021N
BREMBO - P06048
BREMBO - P06048
CHAMPION - 571873CH
DELPHI - LP1003
EUROREPAR - 1617279680
EUROREPAR - 1681276380
EUROREPAR - 1686272880
FERODO - FDB997
FERODO - FSL997
FERODO - HQF2231C
FTE - 9001140
FTE - 9010265
FTE - BL1644A2
HELLA - 355008271
HELLA - 355008281
HELLA - 8DB355008271
HELLA - 8DB355008281
HELLA PAGID - 355008281
HELLA PAGID - 8DB355008271
HELLA PAGID - 8DB355008281
JP Group - 1463600810
JURID - 571873
JURID - 571873J
JURID - 571873JAS
MAGNETI MARELLI - 363700201136
MAGNETI MARELLI - 363700406021
MAGNETI MARELLI - T1136MM
MAGNETI MARELLI - T1136MM
METZGER - 1170238
MEYLE - 0252148619
MEYLE - 0252148619PD
MEYLE - MBP0142
MEYLE - MBP0142PD
OPTIMAL - 10081
OPTIMAL - BP10081
PAGID - T1136
PAGID - T1136
PAGID - T1136N
PAGID - T1136N
RAICAM - 7880
RAICAM - RA07880
TEXTAR - 21486
TEXTAR - 21486 193 0 5 / 2148619305
TEXTAR - 2148602
TEXTAR - 2148604
TEXTAR - 2148681
TEXTAR - 21642
TEXTAR - 4019722211812
TEXTAR - 7560D681
TRW - GDB1261
TRW - GDB1261DTE
TRW - GDB1702
TRW - RCPT08820
TRW - TXC0681
VAICO - V208114
VAICO - V208114
VALEO - 301412
VALEO - 598412
VALEO - 604147
VALEO - 671412
ZIMMERMANN - 214861901
ZIMMERMANN - 214861902
ZIMMERMANN - 214869901
febi bilstein - 16345

item specifications

Component: Braking System
Fitting Position: Front Axle
Application: Lining Wear
Quantity Unit: Piece

reference numbers - for comparison

ATE - 24819002192
ATE - 620219
BMW - 1163065
BMW - 2229018
BMW - 34 35 1 163 065 / 34351163065
BMW - 34 35 2 229 018 / 34352229018
BMW - 34351163065
BMW - 34352229018
BOSCH - 1987474958
BREMBO - A00200
BREMBO - A00200
CHAMPION - FWI252
DELPHI - LZ0136
FERODO - FWI252
FTE - BZ1029WSET
HELLA - 355250271
HELLA - 8DK355250271
HELLA PAGID - 355250271
HELLA PAGID - 8DK355250271
HERTH+BUSS JAKOPARTS - 70608121
JURID - 581380
JURID - FWI252
MAGNETI MARELLI - 363700168024
MAGNETI MARELLI - 363700400200
MAGNETI MARELLI - P8024MM
MAGNETI MARELLI - P8024MM
METZGER - 1190072
MEYLE - 3003435113
MEYLE - MWS0044
OPTIMAL - WKT50278K
PAGID - P8024
PAGID - P8024
PAGID - P8024N
PAGID - P8024N
QUICK BRAKE - WS0163A
TEXTAR - 98020600
TRW - GIC158
TRW - GIC158CN
febi bilstein - 08203
febi bilstein - 223254

Name:

TMD Friction Services GmbH

Website:

www.textar.com

E-Mail:

serviceline@textar.com

Phone:

+49 2171 703 0

Street, House no:

Schlebuscher Strasse 99

ZIP / City:

51381 Leverkusen

Country:

Germany
