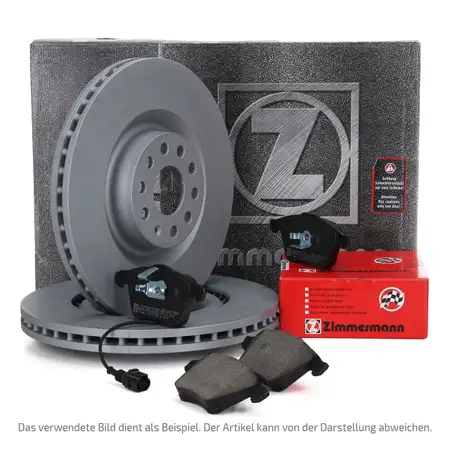

ZIMMERMANN Brake Discs + Pads + Wako for CITROEN Jumper PEUGEOT Boxer 16-inch front

ZIMMERMANN

Item No.: PKT662W047
Manufacturer: ZIMMERMANN
part number: 230.2373.20, 24468.190.1

Items included:
  • 2x Brake Disc Piece - ZIMMERMANN 230.2373.20
  • 1x Brake Pad Set, disc brake Set - ZIMMERMANN 24468.190.1

questions about this product?
Email-Icon
E-Mail
Trusted Badge Rating
item specifications
  • Component: Braking System
  • Quantity Unit: Piece
  • Brake Disc Type: internally vented
  • Fitting Position: Front Axle
  • Outer Diameter [mm]: 280
  • Hole Arrangement/Number: 7/5
  • Surface: Coated
  • Bolt Hole Circle Ø [mm]: 118
  • Height [mm]: 72
  • Brake Disc Thickness [mm]: 28
  • Minimum thickness [mm]: 25,9
  • Weight [kg]: 7,7
  • Centering Diameter [mm]: 73
  • Rim Hole Number: 5
  • Test Mark: ECE R90 APPROVED
reference numbers - for comparison
  • ATE - 24.0128-0213.1 / 24012802131
  • BOSCH - 0 986 479 313 / 0986479313
  • BOSCH - 0 986 479 B99 / 0986479B99
  • BREMBO - 09.A235.20 / 09A23520
  • CITROEN / PEUGEOT - 1607872180
  • CITROEN / PEUGEOT - 4249 K2 / 4249K2
  • CITROEN / PEUGEOT - 4249.28 / 424928
  • CITROEN / PEUGEOT - 4249.29 / 424929
  • CITROEN / PEUGEOT - 4249.98 / 424998
  • ECORA - 4250238762379
  • FERODO - DDF1800C
  • FIAT - 517 05 749 / 51705749
  • FIAT - 517 40 246 / 51740246
  • FIAT - 517 42 246 / 51742246
  • FIAT - 518 48 620 / 51848620
  • FIAT - 518 48 621 / 51848621
  • HELLA PAGID - 8DD 355 113-691 / 8DD355113691
  • JURID - 562468JC
  • RAICAM - RD01399
  • TEXTAR - 92275003
  • TRW - DF4771S
  • ZIMMERMANN - 230.2373.20 / 230237320
  • ZIMMERMANN - 230.2373.52 / 230237352
item specifications
  • Component: Braking System
  • Quantity Unit: Set
  • WVA Number: 24468
  • Fitting Position: Front Axle
  • Wear Warning Contact: incl. wear warning contact
  • Supplementary Article/Supplementary Info: Photo corresponds to scope of supply
  • Thickness [mm]: 19
  • Width [mm]: 169
  • Height [mm]: 62
  • Brake System: BREMBO
  • Test Mark: ECE R90 APPROVED
  • Number of wear indicators [per axle]: 2
reference numbers - for comparison
  • ATE - 13.0460-4807.2 / 13046048072
  • ATE - 13.0460-4809.2 / 13046048092
  • BOSCH - 0 986 494 111 / 0986494111
  • BREMBO - P 23 143 / P23143
  • BREMBO - P 23 143 / P23143
  • BREMBO - P 23 144 / P23144
  • BREMBO - P 23 144 / P23144
  • CITROEN / PEUGEOT - 14 114 573 80 / 1411457380
  • CITROEN / PEUGEOT - 16 114 573 80 / 1611457380
  • CITROEN / PEUGEOT - 16 118 391 80 / 1611839180
  • CITROEN / PEUGEOT - 16 124 338 80 / 1612433880
  • CITROEN / PEUGEOT - 16 124 339 80 / 1612433980
  • CITROEN / PEUGEOT - 16 172 739 80 / 1617273980
  • CITROEN / PEUGEOT - 16 393 743 80 / 1639374380
  • CITROEN / PEUGEOT - 16 478 638 80 / 1647863880
  • CITROEN / PEUGEOT - 16 478 639 80 / 1647863980
  • CITROEN / PEUGEOT - 16 478 640 80 / 1647864080
  • CITROEN / PEUGEOT - 425354
  • CITROEN / PEUGEOT - 425355
  • CITROEN / PEUGEOT - 425356
  • CITROEN / PEUGEOT - 425357
  • CITROEN / PEUGEOT - 425358
  • CITROEN / PEUGEOT - 425461
  • CITROEN / PEUGEOT - 425462
  • ECORA - 4250238740605
  • FERODO - FSL1924
  • FERODO - FVR1924
  • FIAT - 77364014
  • FIAT - 77364160
  • FIAT - 77366017
  • FIAT - 77366018
  • FIAT - 77366019
  • FIAT - 77367091
  • FIAT - 77367092
  • FIAT - 77369120
  • HELLA PAGID - 8DB 355 012-931 / 8DB355012931
  • HERTH+BUSS JAKOPARTS - J3600825
  • HERTH+BUSS JAKOPARTS - J3600825
  • JURID - 573281J
  • RAICAM - 885.0 / 8850
  • TEXTAR - 2446901
  • TRW - GDB1681
  • ZIMMERMANN - 24468
  • ZIMMERMANN - 24468.190.1 / 244681901
  • ZIMMERMANN - 24469
manufacturer model type power capacity constr. date kba limitations
