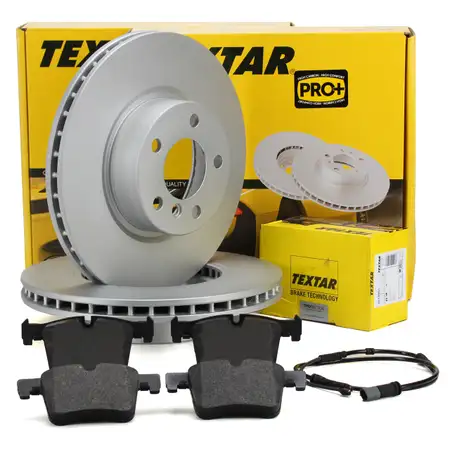

TEXTAR Brake Discs + Brake Pads + Warning Contact Sensor for BMW X3 F25 and X4 F26 (Front)

TEXTAR Brake Discs + Brake Pads + Warning Contact Sensor for BMW X3 F25 and X4 F26 (Front)

Item No.: PKT152W052
Manufacturer: TEXTAR, CARIPAR
part number: 92257105, 2519901, A059077

Items included:

2x Brake Disc Piece - TEXTAR 92257105
1x Brake Pad Set, disc brake Set - TEXTAR 2519901
1x Warning Contact, brake pad wear Piece - CARIPAR GBK 428

item specifications

Component: Braking System
Quantity Unit: Piece
Brake Disc Type: internally vented
Fitting Position: Front Axle
Outer Diameter [mm]: 328
Hole Arrangement/Number: 05/06
Surface: Coated
Supplementary Article/Supplementary Info 2: without wheel hub
Supplementary Article/Supplementary Info 2: without wheel bearing
Supplementary Article/Supplementary Info 2: without wheel studs
Bolt Hole Circle Ø [mm]: 120
Height [mm]: 73
Brake Disc Thickness [mm]: 28
Minimum thickness [mm]: 26,4
Inner Diameter [mm]: 153,8
Machining: High-carbon
Weight [kg]: 10,2
Centering Diameter [mm]: 75
Wheel Bolt Bore Diameter [mm]: 16,5
Packaging length [cm]: 35,8
Packaging width [cm]: 35,8
Packaging height [cm]: 10,5

reference numbers - for comparison

ATE - 24012802541
ATE - 24032802541
ATE - 428254
ATE - 528254
BLUE PRINT - ADB114356
BMW - 34 10 6 879 122 / 34106879122
BMW - 34106787490
BMW - 6787490
BMW - 6879122
BOSCH - 0986479771
BREMBO - 09B57011
BREMBO - 09B5701S
BREMBO - 09B5701X
BREMBO - 59E11450
CHAMPION - 562891CH1
DELPHI - BG9108
DELPHI - BG9108C18B1
DELPHI - BG9108C19B1
ECORA - 4019722475177
EUROREPAR - 1642750280
EUROREPAR - 1671243080
EUROREPAR - 1684265980
FERODO - DDF2314C1
FERODO - DDF2314CD
FERODO - DDF2314DSL1D
FERODO - DDF2314DSR1D
FTE - 9071052
FTE - 9081103
FTE - BS7345
FTE - BS7345B
HELLA - 355119531
HELLA - 355119532
HELLA - 355121561
HELLA - 355123891
HELLA - 355129631
HELLA - 8DD355119531
HELLA - 8DD355119532
HELLA - 8DD355121561
HELLA - 8DD355123891
HELLA - 8DD355129631
HELLA PAGID - 355119531
HELLA PAGID - 355119532
HELLA PAGID - 355121561
HELLA PAGID - 355123891
HELLA PAGID - 355129631
HELLA PAGID - 8DD355119531
HELLA PAGID - 8DD355119532
HELLA PAGID - 8DD355121561
HELLA PAGID - 8DD355123891
HELLA PAGID - 8DD355129631
HERTH+BUSS JAKOPARTS - J3300864
HERTH+BUSS JAKOPARTS - J3300864
JP Group - 1463107200
JURID - 562891JC1
MAGNETI MARELLI - 360406131002
METZGER - 6110718
MEYLE - 3155210012PD
MEYLE - 3835210012PD
MEYLE - MBD1569PD
OPTIMAL - BS9048
OPTIMAL - BS9048C
OPTIMAL - BS9048HC
PAGID - 55571
PAGID - 55571NHC
TEXTAR - 92257103
TEXTAR - 92257105
TEXTAR - 98200257101
TOPRAN - 502121
TRUCKTEC AUTOMOTIVE - 0835191
TRW - DF6220S
TRW - DF6220SL
TRW - DF6220SR
TRW - DF6220XSS
VAICO - V2080092
VAICO - V2080092
VAICO - V2080108
VAICO - V2080108
VALEO - 197575
VALEO - 672776
ZIMMERMANN - 150349420
ZIMMERMANN - 150349452
ZIMMERMANN - 150349454
ZIMMERMANN - 150349455
febi bilstein - 38576

item specifications

Component: Braking System
Quantity Unit: Set
WVA Number: 25199
Fitting Position: Front Axle
Wear Warning Contact: prepared for wear warning indicator
Thickness [mm]: 19,2
Width [mm]: 148,4
Height [mm]: 69,9
Brake System: Bosch
Weight [kg]: 1,92
Observe assembly information:
directional:
Packaging length [cm]: 17
Packaging width [cm]: 12
Packaging height [cm]: 8,3

reference numbers - for comparison

ATE - 13.0460-3857.2 / 13046038572
ATE - 13.0470-3857.2 / 13047038572
BLUE PRINT - ADB114226
BMW - 34 10 6 859 182 / 34106859182
BMW - 34 11 4 073 936 / 34114073936
BMW - 34 11 6 854 126 / 34116854126
BMW - 34 11 6 856 193 / 34116856193
BMW - 34106799801
BMW - 34106859181
BMW - 34112456867
BMW - 34112464194
BMW - 34116798978
BMW - 34118855010
BOSCH - 0 986 494 487 / 0986494487
BOSCH - 0 986 TB3 149 / 0986TB3149
BREMBO - P 06 075 / P06075
BREMBO - P 06 075 / P06075
BREMBO - P 06 075E / P06075E
BREMBO - P 06 075E / P06075E
BREMBO - P 06 075X / P06075X
BREMBO - P 06 075X / P06075X
BREMBO - P06075N
BREMBO - P06075N
CHAMPION - 573432CH
DELPHI - LP2234
ECORA - 4019722434297
FERODO - 25200
FERODO - FDB4394
FTE - BL2672A1
HELLA PAGID - 8DB 355 015-781 / 8DB355015781
HELLA PAGID - 8DB 355 026-371 / 8DB355026371
HELLA PAGID - T2052
HELLA PAGID - T2052
JURID - 573432D
JURID - 573432J
JURID - 573432J-AS / 573432JAS
OPTIMAL - 12546
OPTIMAL - BP-12546 / BP12546
PAGID - T2052
PAGID - T2052
TEXTAR - 2519901
TEXTAR - 2519901CP
TEXTAR - 2519903
TRW - GDB1942
TRW - GDB1942DTE
VALEO - 302138
VALEO - 601288
ZIMMERMANN - 25199.195.1 / 251991951
ZIMMERMANN - 25199.995.1 / 251999951
febi bilstein - 16861

item specifications

Component: Braking System
Application: Lining Wear
Quantity Unit: Piece
Fitting Position: Front Axle

reference numbers - for comparison

ATE - 24.8190-0309.2 / 24819003092
ATE - 620309
BMW - 34 35 6 790 303 / 34356790303
BREMBO - A 00 433 / A00433
BREMBO - A 00 433 / A00433
Caripar - GBK 428 / GBK428
HELLA PAGID - 8DK 355 251-741 / 8DK355251741
JURID - 581500
PAGID - P8585
PAGID - P8585
TEXTAR - 98043500
febi bilstein - 37437
