Is this part compatible with my vehicle?

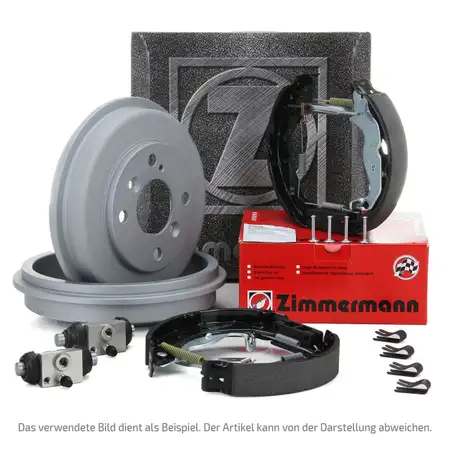

ZIMMERMANN Brake Drums + Brake Shoes + Rear Wheel Brake Cylinders for OPEL Corsa C with ABS

Item No.: PKT562W338

ZIMMERMANN Brake Drums + Brake Shoes + Rear Wheel Brake Cylinders for OPEL Corsa C with ABS

Item No.: PKT562W338
ZIMMERMANN
Items included:
  • 2x Brake Drum Piece - ZIMMERMANN
  • 1x Brake Shoe Set Set - ZIMMERMANN

Free lightning shipping in DE from 90€
Prioritized ordering possible
Questions about the item?
E-Mail-Icon
E-Mail

Brake Drum
item specifications
  • Bolt Hole Circle Ø [mm]: 100
  • Surface: Coated
  • Component: Braking System
  • Inner brake drum diameter [mm]: 200
  • Total brake drum height [mm]: 94
  • Fitting Position: Rear Axle
  • Centering Diameter [mm]: 53
  • Quantity Unit: Piece
  • Rim Hole Number: 4
  • Hole Arrangement/Number: 4/4
  • Minimum thickness [mm]: 201
  • Supplementary Article/Supplementary Info 2: without ABS sensor ring
  • Supplementary Article/Supplementary Info 2: without wheel bearing
  • Weight [kg]: 5,6
  • Outer brake drum diameter [mm]: 228
reference numbers - for comparison
  • ATE - 24.0220-0038.1 / 24022000381
  • BOSCH - 0 986 477 135 / 0986477135
  • ECORA - 4250238776338
  • FERODO - FDR329259
  • GENERAL MOTORS - 9004416
  • GENERAL MOTORS - 9196290
  • HELLA - 8DT 355 300-411 / 8DT355300411
  • JURID - 329259J
  • OPEL - 418 001 / 418001
  • TEXTAR - 94024200
  • TRW - DB4302
  • TRW - DB4302B
  • ZIMMERMANN - 4250238776338
  • ZIMMERMANN - 430.1786.00 / 430178600
  • ZIMMERMANN - 430.1786.20 / 430178620
Brake Shoe Set
item specifications
  • Component: Braking System
  • Width [mm]: 46
  • Inner brake drum diameter [mm]: 200
  • Fitting Position: Rear Axle
  • Piston Diameter [mm]: 19
  • Test Mark: ECE R90 APPROVED
  • Quantity Unit: Set
  • Brake Lining: Standard Size
  • Supplementary Article/Supplementary Info: with wheel brake cylinder
  • Supplementary Article/Supplementary Info: Photo corresponds to scope of supply
  • Mounting Type: pre-assembled
  • Version: Kit Z
reference numbers - for comparison
  • ATE - 03.0520-5219.3 / 03052052193
  • BOSCH - 0 204 114 630 / 0204114630
  • BREMBO - K 59 042 / K59042
  • BREMBO - K 59 042 / K59042
  • ECORA - 4250238732570
  • FERODO - FMK434
  • HELLA - 8DB 355 005-221 / 8DB355005221
  • HERTH+BUSS JAKOPARTS - J3500902
  • HERTH+BUSS JAKOPARTS - J3500902
  • JURID - 381358J
  • OPEL - 1515053
  • OPEL - 1515054
  • RAICAM - 7292RP
  • TEXTAR - 84058200
  • TRW - GSK1624
  • ZIMMERMANN - 20990.119.8 / 209901198
  • ZIMMERMANN - 4250238732570
