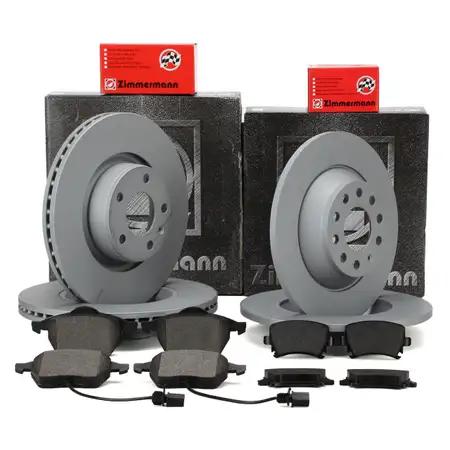

ZIMMERMANN Brake Discs + Brake Pads + Warning Contact Sensor for AUDI A6 4F (Front + Rear)

ZIMMERMANN Brake Discs + Brake Pads + Warning Contact Sensor for AUDI A6 4F (Front + Rear)

ZIMMERMANN Brake Discs + Brake Pads + Warning Contact Sensor for AUDI A6 4F (Front + Rear)

ZIMMERMANN Brake Discs + Brake Pads + Warning Contact Sensor for AUDI A6 4F (Front + Rear)

ZIMMERMANN Brake Discs + Brake Pads + Warning Contact Sensor for AUDI A6 4F (Front + Rear)

ZIMMERMANN Brake Discs + Brake Pads + Warning Contact Sensor for AUDI A6 4F (Front + Rear)

ZIMMERMANN Brake Discs + Brake Pads + Warning Contact Sensor for AUDI A6 4F (Front + Rear)

ZIMMERMANN Brake Discs + Brake Pads + Warning Contact Sensor for AUDI A6 4F (Front + Rear)

ZIMMERMANN

Item No.: PKT472W001
Manufacturer: ZIMMERMANN
part number: 100.3317.20, 21938.200.1, 100.3320.20, 23914.170.1

Items included:

2x Brake Disc Piece - ZIMMERMANN
1x Brake Pad Set, disc brake Set - ZIMMERMANN
2x Brake Disc Piece - ZIMMERMANN
1x Brake Pad Set, disc brake Set - ZIMMERMANN

item specifications

Bolt Hole Circle Ø [mm]: 112
Outer Diameter [mm]: 314
Surface: Coated
Component: Braking System
Brake Disc Type: Externally Vented
Fitting Position: Front Axle
Test Mark: ECE R90 APPROVED
Centering Diameter [mm]: 68
Quantity Unit: Piece
Rim Hole Number: 5
Hole Arrangement/Number: 6/5
Minimum thickness [mm]: 23
Processing: High-carbon
Brake Disc Thickness [mm]: 25
Weight [kg]: 8,76
Height [mm]: 60

reference numbers - for comparison

ATE - 24.0125-0149.1 / 24012501491
ATE - 24.0325-0149.1 / 24032501491
AUDI - 4F0 615 301 D / 4F0615301D
AUDI - L4FD 615 301 / L4FD615301
AUDI - L4FD 615 301 / L4FD615301
BOSCH - 0 986 479 301 / 0986479301
BOSCH - 0 986 479 C70 / 0986479C70
BREMBO - 09.9540.11 / 09954011
FERODO - DDF1291C
HELLA PAGID - 8DD 355 111-121 / 8DD355111121
HELLA PAGID - 8DD 355 128-291 / 8DD355128291
JURID - 562271JC-1 / 562271JC1
RAICAM - RD00924
TEXTAR - 92132205
TRW - DF4470
ZIMMERMANN - 100.3317.20 / 100331720
ZIMMERMANN - 100.3317.52 / 100331752
ZIMMERMANN - 100.3317.53 / 100331753
ZIMMERMANN - 4250238718284

item specifications

Component: Braking System
Width [mm]: 156
Fitting Position: Front Axle
Number of wear indicators [per axle]: 2
Test Mark: ECE R90 APPROVED
WVA Number: 21938
Quantity Unit: Set
Supplementary Article/Supplementary Info: with retaining spring
Supplementary Article/Supplementary Info: Photo corresponds to scope of supply
Supplementary Article/Supplementary Info 2: with anti-squeak plate
Thickness [mm]: 20
Height [mm]: 74
Brake System: ATE
Wear Warning Contact: incl. wear warning contact

reference numbers - for comparison

ATE - 13.0460-7110.2 / 13046071102
ATE - 13.0470-7110.2 / 13047071102
BOSCH - 0 986 424 482 / 0986424482
BOSCH - 0 986 494 050 / 0986494050
BREMBO - P 85 037 / P85037
BREMBO - P 85 037 / P85037
BREMBO - P 85 037X / P85037X
BREMBO - P 85 037X / P85037X
BREMBO - P 85 085 / P85085
BREMBO - P 85 085 / P85085
BREMBO - P 85 085X / P85085X
BREMBO - P 85 085X / P85085X
FERODO - FDB1323
HELLA PAGID - 8DB 355 008-411 / 8DB355008411
JURID - 571982J
RAICAM - RA.0428.0 / RA04280
RAICAM - RA.0429.5 / RA04295
TEXTAR - 2193801
TEXTAR - 2193881
TRW - GDB1307
TRW - GDB1307DTE
VAG - 4B0 615 116 A / 4B0615116A
VAG - 4B0 615 116 A / 4B0615116A
VAG - 4B0 615 116 F / 4B0615116F
VAG - 4B0 615 116 F / 4B0615116F
VAG - 4B0 615 116 G / 4B0615116G
VAG - 4B0 615 116 G / 4B0615116G
VAG - 4B0 698 151 / 4B0698151
VAG - 4B0 698 151 / 4B0698151
VAG - 4B0 698 151 AF / 4B0698151AF
VAG - 4B0 698 151 B / 4B0698151B
VAG - 4B0 698 151 B / 4B0698151B
VAG - 4B0 698 151 H / 4B0698151H
VAG - 4B0 698 151 H / 4B0698151H
VAG - 4B0 698 151 K / 4B0698151K
VAG - 4B0 698 151 K / 4B0698151K
VOLKSWAGEN - 4B0 615 116 A / 4B0615116A
VOLKSWAGEN - 4B0 615 116 F / 4B0615116F
VOLKSWAGEN - 4B0 615 116 G / 4B0615116G
VOLKSWAGEN - 4B0 698 151 / 4B0698151
VOLKSWAGEN - 4B0 698 151 B / 4B0698151B
VOLKSWAGEN - 4B0 698 151 H / 4B0698151H
VOLKSWAGEN - 4B0 698 151 K / 4B0698151K
ZIMMERMANN - 20676
ZIMMERMANN - 21938
ZIMMERMANN - 21938.200.1 / 219382001
ZIMMERMANN - 21939
ZIMMERMANN - 4250238736561

item specifications

Bolt Hole Circle Ø [mm]: 112
Outer Diameter [mm]: 302
Surface: Coated
Component: Braking System
Brake Disc Type: solid
Fitting Position: Rear Axle
Test Mark: ECE R90 APPROVED
Centering Diameter [mm]: 68
Quantity Unit: Piece
Rim Hole Number: 5
Hole Arrangement/Number: 10/5
Minimum thickness [mm]: 10
Brake Disc Thickness [mm]: 12
Weight [kg]: 5,4
Height [mm]: 49

reference numbers - for comparison

ATE - 24.0112-0159.1 / 24011201591
ATE - 24.0312-0159.1 / 24031201591
AUDI - 4F0 615 601 E / 4F0615601E
BOSCH - 0 986 479 257 / 0986479257
BREMBO - 08.8843.21 / 08884321
BREMBO - 08.8843.2X / 0888432X
BREMBO - 59.E114.03 / 59E11403
FERODO - DDF1307
FERODO - DDF1307C
HELLA PAGID - 8DD 355 111-181 / 8DD355111181
JURID - 562438JC
RAICAM - RD01115
TEXTAR - 92132503
TRW - DF4434
ZIMMERMANN - 100.3320.20 / 100332020
ZIMMERMANN - 100.3320.52 / 100332052
ZIMMERMANN - 4250238718314

item specifications

Component: Braking System
Width [mm]: 105
Fitting Position: Rear Axle
Test Mark: ECE R90 APPROVED
WVA Number: 23914
Quantity Unit: Set
Supplementary Article/Supplementary Info: Photo corresponds to scope of supply
Thickness [mm]: 17
Height [mm]: 56
Brake System: LUCAS-GIRLING
Wear Warning Contact: prepared for wear warning indicator

reference numbers - for comparison

ATE - 13.0460-2880.2 / 13046028802
BOSCH - 0 986 494 595 / 0986494595
BREMBO - P 85 073 / P85073
BREMBO - P 85 073 / P85073
FERODO - FDB1636
FERODO - FSL1636
HELLA PAGID - 8DB 355 010-601 / 8DB355010601
JURID - 573158J
JURID - 573158JC
RAICAM - 818.0 / 8180
RAICAM - 818.1 / 8181
TEXTAR - 2391401
TEXTAR - 2391402
TEXTAR - 2391481
TEXTAR - 2391482
TRW - GDB1622
VAG - 1K0 698 451 / 1K0698451
VAG - 1K0 698 451 B / 1K0698451B
VAG - 1K0 698 451 D / 1K0698451D
VAG - 1K0 698 451 E / 1K0698451E
VAG - 1K0 698 451 F / 1K0698451F
VAG - 1K0 698 451 G / 1K0698451G
VAG - 1K0 698 451 H / 1K0698451H
VAG - 1K0 698 451 K / 1K0698451K
VAG - 1K0 698 451 K / 1K0698451K
VAG - 1K0 698 451 S / 1K0698451S
VAG - 1TD 698 451 / 1TD698451
VAG - 3C0 698 451 / 3C0698451
VAG - 3C0 698 451 A / 3C0698451A
VAG - 3C0 698 451 B / 3C0698451B
VAG - 3C0 698 451 C / 3C0698451C
VAG - 4F0 698 451 A / 4F0698451A
VAG - 4F0 698 451 D / 4F0698451D
VAG - 4F0 698 451 E / 4F0698451E
VAG - 4F0 698 451 Q / 4F0698451Q
VAG - 8E0 698 451 F / 8E0698451F
VAG - 8E0 698 451 J / 8E0698451J
VAG - JZW 698 451 D / JZW698451D
VAG - JZW 698 451 M / JZW698451M
VOLKSWAGEN - 1K0 698 451 K / 1K0698451K
ZIMMERMANN - 23914
ZIMMERMANN - 23914.170.1 / 239141701
ZIMMERMANN - 23914.170.2 / 239141702
ZIMMERMANN - 23914.970.1 / 239149701
ZIMMERMANN - 4250238739876
