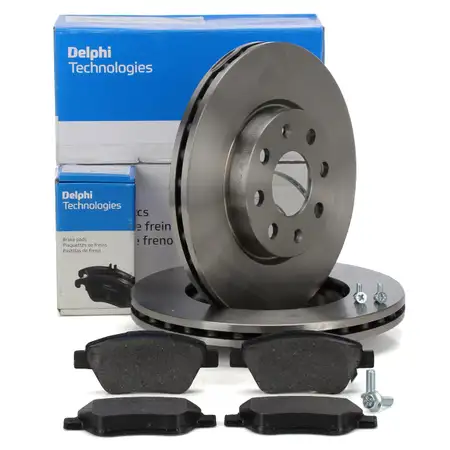

DELPHI Brake Discs + Brake Pads for OPEL Corsa D 1.0–1.4, 1.3 CDTI (Front)

DELPHI Brake Discs + Brake Pads for OPEL Corsa D 1.0–1.4, 1.3 CDTI (Front)

Item No.: PKT152W542
Manufacturer: DELPHI
part number: BG4004, LP1989

Items included:

2x Brake Disc Piece - DELPHI
1x Brake Pad Set, disc brake Set - DELPHI

item specifications

Bolt Hole Circle Ø [mm]: 100
Outer Diameter [mm]: 257
Surface: Oiled
Component: Braking System
Number of Holes: 4
Brake Disc Type: Vented
Fitting Position: Front Axle
Test Mark: R90 Homologated
Centering Diameter [mm]: 60
Quantity Unit: Piece
Minimum thickness [mm]: 20
Brake Disc Thickness [mm]: 22
Height [mm]: 40,6

reference numbers - for comparison

ATE - 24012202311
ATE - 24032202311
ATE - 422231
ATE - 522231
BLUE PRINT - ADL144309
BLUE PRINT - ADZ94332
BOSCH - 0986479223
BOSCH - 0986479963
BOSCH - 0986479B89
BOSCH - F002H28004
BOSCH - F002H28004
BREMBO - 09584330
BREMBO - 09584331
BREMBO - 09584334
BREMBO - 0958433X
BREMBO - 09584377
BREMBO - 59E11529
BREMBO - 9584334
BREMBO - FD170000
CHAMPION - 562304CH
DELPHI - 5012759385845
DELPHI - BG4004
DELPHI - BG4004
DELPHI - BG4004C
DELPHI - BG4004T
EUROREPAR - 1618866180
EUROREPAR - 1686334380
EUROREPAR - 1686717980
FERODO - DDF1304
FERODO - DDF13041
FERODO - DDF1304C
FERODO - DDF1304C1
FERODO - DDF1304X
FIAT - 0000071773404
FIAT - 0006001073179
FIAT - 55700920
FIAT - 55700921
FIAT - 6001073179
FIAT - 6001073181
FIAT - 71773402
FIAT - 71773404
FTE - 9072007
FTE - 9082398
FTE - BS7133
FTE - BS7133B
HELLA - 355112571
HELLA - 355112581
HELLA - 355124941
HELLA - 530032958
HELLA - 8DD355112571
HELLA - 8DD355112581
HELLA - 8DD355124941
HELLA PAGID - 355112571
HELLA PAGID - 355112581
HELLA PAGID - 355124941
HELLA PAGID - 8DD355112571
HELLA PAGID - 8DD355112581
HELLA PAGID - 8DD355124941
HERTH+BUSS JAKOPARTS - J3300804
HERTH+BUSS JAKOPARTS - J3300804
JP Group - 1263106400
JURID - 562304JC
JURID - 562304JC1
MAGNETI MARELLI - 360406099605
MAGNETI MARELLI - 360406221901
METZGER - 6110075
MEYLE - 6155210015
MEYLE - 6155210015PD
MEYLE - MBD2046
MEYLE - MBD2046PD
OPEL - 13317922
OPEL - 569024
OPEL - 569065
OPEL - 93197241
OPTIMAL - BS7664
OPTIMAL - BS7664C
OPTIMAL - BS7664HC
PAGID - 54457
PAGID - 54457NC
PAGID - 54457PRO
TEXTAR - 92145700
TEXTAR - 98200145701
TOPRAN - 207602
TRW - DF4692
TRW - DF4796
TRW - DF4796S
VAICO - V4080015
VAICO - V4080015
VALEO - 197044
VALEO - 297044
VALEO - 672634
ZIMMERMANN - 230236900
ZIMMERMANN - 230236920
ZIMMERMANN - 230236952
ZIMMERMANN - 230236970
ZIMMERMANN - 230236972
ZIMMERMANN - 230236975
febi bilstein - 28177

item specifications

Component: Braking System
Width 1 [mm]: 123,1
Fitting Position: Front Axle
Test Mark: R90 Homologated
Test Mark: E1 90R-01881/1180
WVA Number: 24288
WVA Number: 23982
Quantity Unit: Set
Thickness 2 [mm]: 17,8
Friction Lining Material: Low-Metallic
Supplementary Article/Supplementary Info: with accessories
Supplementary Article/Supplementary Info 2: with anti-squeak plate
Height 2 [mm]: 53,2
Width 2 [mm]: 123,1
Brake System: Bosch
Thickness 1 [mm]: 17,8
Height 1 [mm]: 53,2
Wear Warning Contact: with acoustic wear warning
FMSI Code: D1967-9192

reference numbers - for comparison

ATE - 13.0460-3839.2 / 13046038392
ATE - 13.0470-3839.2 / 13047038392
BLUE PRINT - ADZ94233
BOSCH - 0 986 494 092 / 0986494092
BOSCH - 0 986 495 237 / 0986495237
BREMBO - P 59 051 / P59051
BREMBO - P 59 051 / P59051
BREMBO - P 59 051X / P59051X
BREMBO - P 59 051X / P59051X
BREMBO - P 66 001 / P66001
BREMBO - P 66 001 / P66001
DELPHI - 5012759398821
DELPHI - LP1989
FERODO - FDB1920
FERODO - FDB1920W
FERODO - FSL1920
FIAT - 71770082
JURID - 573164J
JURID - 573204D
JURID - 573204J
METZGER - 1170057
MEYLE - 025 239 8217/W / 0252398217W
OPEL - 1605153
OPEL - 1605226
OPEL - 1605258
OPEL - 1605353
OPEL - 1605357
OPEL - 1605359
OPEL - 1680880580
OPEL - 93167073
OPEL - 93169174
OPEL - 93169254
OPEL - 93189815
OPEL - 93191697
OPEL - 93191698
OPEL - 95521571
PAGID - T1647
PAGID - T1647
PAGID - T1647N
PAGID - T1647N
PAGID - T1995
PAGID - T1995
TEXTAR - 23982 178 1 5 / 2398217815
TEXTAR - 2398202
TEXTAR - 2428801
TEXTAR - 2509501
TRW - GDB1700
VAICO - V40-8039 / V408039
VAICO - V40-8039 / V408039
VALEO - 598825
ZIMMERMANN - 23982.980.1 / 239829801
febi bilstein - 16627

Name:

Delphi Phinia Deutschland GmbH

Website:

delphiautoparts.com

E-Mail:

customerservice.de@phinia.com

Street, House no:

Fichtenstraße 55

ZIP / City:

40233 Düsseldorf

Country:

Germany
