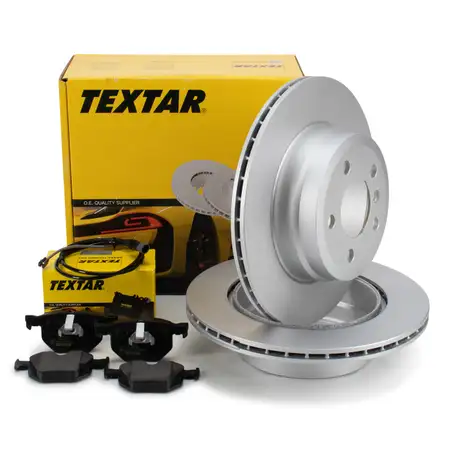

TEXTAR Brake Discs + Brake Pads + Sensor for BMW X5 E70, F15, X6 E71/72 (April 2010 onwards) – Rear

TEXTAR Brake Discs + Brake Pads + Sensor for BMW X5 E70, F15, X6 E71/72 (April 2010 onwards) – Rear

Item No.: PKT152W781
Manufacturer: TEXTAR, CARIPAR
part number: 92161103, 2344704, GBK 798

Items included:

2x Brake Disc Piece - TEXTAR
1x Brake Pad Set, disc brake Set - TEXTAR
1x Warning Contact, brake pad wear Piece - CARIPAR

item specifications

Bolt Hole Circle Ø [mm]: 120
Surface: Coated
Outer Diameter [mm]: 320
Component: Braking System
Brake Disc Type: internally vented
Fitting Position: Rear Axle
Packaging length [cm]: 32,8
Centering Diameter [mm]: 75,1
Quantity Unit: Piece
Packaging height [cm]: 17,9
Hole Arrangement/Number: 05/06
Minimum thickness [mm]: 18,4
Packaging width [cm]: 32,8
Supplementary Article/Supplementary Info 2: without wheel hub
Supplementary Article/Supplementary Info 2: without wheel bearing
Supplementary Article/Supplementary Info 2: without wheel studs
Brake Disc Thickness [mm]: 20
Weight [kg]: 7,6
Height [mm]: 78,6
Inner Diameter [mm]: 185
Wheel Bolt Bore Diameter [mm]: 16,7

reference numbers - for comparison

ATE - 24012002061
ATE - 420206
BLUE PRINT - ADB114304
BMW - 34 21 6 868 940 / 34216868940
BMW - 34 21 6 886 479 / 34216886479
BMW - 34216771970
BMW - 34216793247
BMW - 34216868940
BMW - 34216886479
BMW - 6771970
BMW - 6793247
BMW - 6868940
BMW - 6886479
BOSCH - 0986479442
BOSCH - 0986AB5782
BOSCH - 0986T16782
BOSCH - F026A09382
BOSCH - F026A09382
BREMBO - 09992511
BREMBO - 0999251S
BREMBO - 0999251X
BREMBO - 59E11472
DELPHI - BG4168
DELPHI - BG4168C18B1
DELPHI - BG4168C19B1
EUROREPAR - 1642772680
EUROREPAR - 1671240680
EUROREPAR - 1684263580
FERODO - DDF1715
FERODO - DDF17151
FERODO - DDF1715C
FERODO - DDF1715C1
FERODO - DDF1715C1D
FERODO - DDF1715DSL1D
FERODO - DDF1715DSR1D
FTE - 9071043
FTE - 9081029
FTE - 9082603
FTE - BS7244
FTE - BS7244B
FTE - BS7244HB
HELLA - 355114001
HELLA - 355114002
HELLA - 355122071
HELLA - 355128761
HELLA - 8DD355114001
HELLA - 8DD355114002
HELLA - 8DD355122071
HELLA - 8DD355128761
HELLA PAGID - 355114001
HELLA PAGID - 355114002
HELLA PAGID - 355122071
HELLA PAGID - 355128761
HELLA PAGID - 8DD355114001
HELLA PAGID - 8DD355114002
HELLA PAGID - 8DD355122071
HELLA PAGID - 8DD355128761
JP Group - 1463204800
JURID - 562521JC
JURID - 562521JC1
MAGNETI MARELLI - 360406178102
METZGER - 6110589
MEYLE - 3155230024PD
MEYLE - MBD1907PD
OPTIMAL - BS8278
OPTIMAL - BS8278C
PAGID - 54611
PAGID - 54611NC
PAGID - 54611PRO
TEXTAR - 4019722403712
TEXTAR - 4019722580451
TEXTAR - 92161103
TEXTAR - 92161105
TEXTAR - 98200161101
TOPRAN - 502030
TRUCKTEC AUTOMOTIVE - 0834147
TRW - DF4854S
TRW - DF4854SL
TRW - DF4854SR
TRW - DF4854XSS
VAICO - V2080094
VAICO - V2080094
VALEO - 197179
VALEO - 297179
VALEO - 672507
ZIMMERMANN - 150345020
ZIMMERMANN - 150345052
ZIMMERMANN - 150345053
febi bilstein - 36386

item specifications

Component: Braking System
Width 1 [mm]: 122
Fitting Position: Rear Axle
Packaging length [cm]: 15,2
WVA Number: 23447
Quantity Unit: Set
Packaging height [cm]: 8,4
Article Number of recommended accessories: 82072700
Packaging width [cm]: 8,8
Thickness [mm]: 17,3
Height 2 [mm]: 59,2
Weight [kg]: 1,132
Width 2 [mm]: 121,8
Brake System: Teves
Wear Warning Contact: prepared for wear warning indicator
Height 1 [mm]: 57,9

reference numbers - for comparison

ATE - 13.0460-7232.2 / 13046072322
ATE - 13.0470-7232.2 / 13047072322
BLUE PRINT - ADB114202
BMW - 2 413 040 / 2413040
BMW - 2 413 041 / 2413041
BMW - 34 21 6 776 937 / 34216776937
BMW - 34212413040
BMW - 34212413041
BMW - 34216776937
BMW - 6 776 937 / 6776937
BMW - 6 776 937 / 6776937
BOSCH - 0 986 424 766 / 0986424766
BOSCH - 0 986 494 862 / 0986494862
BOSCH - 0 986 TB3 034 / 0986TB3034
BREMBO - P 06 056 / P06056
BREMBO - P 06 056 / P06056
BREMBO - P 06 056X / P06056X
BREMBO - P 06 056X / P06056X
BREMBO - P06056N
BREMBO - P06056N
CHAMPION - 573744CH
DELPHI - LP2068
FERODO - FDB4067
FTE - 9005400
FTE - BL2484A1
HELLA PAGID - 8DB 355 013-941 / 8DB355013941
HELLA PAGID - 8DB 355 026-251 / 8DB355026251
HELLA PAGID - T1771
HELLA PAGID - T1771
JURID - 573228D
JURID - 573228J
JURID - 573228J-AS / 573228JAS
JURID - 573228JC
JURID - 573744J
MAGNETI MARELLI - 363700201771
METZGER - 1170843
OPTIMAL - 12251
PAGID - T1771
PAGID - T1771
TEXTAR - 23447
TEXTAR - 2344704
TEXTAR - 2344704
TEXTAR - 2344704CP
TEXTAR - 2344711
TEXTAR - 4019722299407
TEXTAR - 4019722601095
TRW - GDB1730
TRW - GDB1730BTE
TRW - GDB1730DTE
VALEO - 604160
ZIMMERMANN - 23448.170.1 / 234481701
ZIMMERMANN - 23448.970.1 / 234489701
febi bilstein - 16633

item specifications

Component: Braking System
Fitting Position: Rear Axle
Application: Lining Wear
Quantity Unit: Piece

reference numbers - for comparison

ATE - 24.8190-0028.2 / 24819000282
ATE - 24819000282
ATE - 620028
BMW - 34 35 6 854 168 / 34356854168
BMW - 34356854168
BMW - 6854168
BOSCH - 1 987 474 552 / 1987474552
BOSCH - 1987474552
BREMBO - A 00 434 / A00434
BREMBO - A 00 434 / A00434
BREMBO - A00434
BREMBO - A00434
Caripar - GBK 798 / GBK798
HELLA - 355252531
HELLA - 8DK355252531
HELLA PAGID - 355252531
HELLA PAGID - 8DK 355 252-531 / 8DK355252531
HELLA PAGID - 8DK355252531
JURID - 581417
MEYLE - 3145270010
MEYLE - MWS0073
PAGID - P8700
PAGID - P8700
PAGID - P8700N
PAGID - P8700N
TEXTAR - 98054600
TEXTAR - 98054610
TEXTAR - 98054680
TRW - GIC406
febi bilstein - 45198
