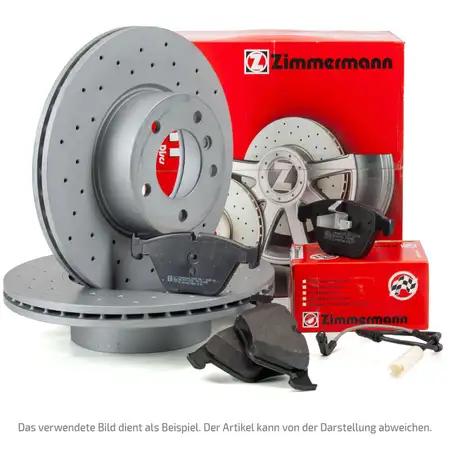

Zimmermann SPORT Brake Discs + Pads + Wako for MERCEDES W202, S202, W210, S210, R170 (Front)

Zimmermann SPORT Brake Discs + Pads + Wako for MERCEDES W202, S202, W210, S210, R170 (Front)

Item No.: PKT062W213
Manufacturer: ZIMMERMANN, CARIPAR
part number: 400.1435.52, 21664.195.1, GBK 847

Items included:

2x Brake Disc Piece - ZIMMERMANN 400.1435.52
1x Brake Pad Set, disc brake Set - ZIMMERMANN 21664.195.1
2x Warning Contact, brake pad wear Piece - CARIPAR GBK 847

item specifications

Component: Braking System
Quantity Unit: Piece
Brake Disc Type: internally vented
Brake Disc Type: Perforated
Fitting Position: Front Axle
Outer Diameter [mm]: 288
Hole Arrangement/Number: 7/5
Surface: Coated
Version: Sport
Bolt Hole Circle Ø [mm]: 112
Height [mm]: 46
Brake Disc Thickness [mm]: 25
Minimum thickness [mm]: 22,4
Machining: High-carbon
Weight [kg]: 6,5
Centering Diameter [mm]: 67
Rim Hole Number: 5
Test Mark: KBA 60872

reference numbers - for comparison

ATE - 24.0125-0110.1 / 24012501101
ATE - 24.0325-0110.1 / 24032501101
BOSCH - 0 986 478 624 / 0986478624
BREMBO - 09.8411.11 / 09841111
BREMBO - 09.8411.1X / 0984111X
BREMBO - 09.8411.75 / 09841175
ECORA - 4250238745822
FERODO - DDF1135C
HELLA PAGID - 8DD 355 107-481 / 8DD355107481
HELLA PAGID - 8DD 355 127-551 / 8DD355127551
JURID - 562013JC
MERCEDES-BENZ - 203 421 03 12 / 2034210312
MERCEDES-BENZ - 210 421 0712 / 2104210712
MERCEDES-BENZ - 210 421 2412 / 2104212412
MERCEDES-BENZ - 210 421 2412 64 / 210421241264
MERCEDES-BENZ - A 203 421 0312 / A2034210312
MERCEDES-BENZ - A 203 421 0312 / A2034210312
MERCEDES-BENZ - A 210 421 0712 / A2104210712
MERCEDES-BENZ - A 210 421 0712 / A2104210712
MERCEDES-BENZ - A 210 421 2412 / A2104212412
MERCEDES-BENZ - A 210 421 2412 / A2104212412
MERCEDES-BENZ - A 210 421 2412 64 / A210421241264
MERCEDES-BENZ - A 210 421 2412 64 / A210421241264
RAICAM - RD00449
TEXTAR - 92105905
TEXTAR - 92287705
TRW - DF2779
TRW - DF4180
ZIMMERMANN - 400.1435.20 / 400143520
ZIMMERMANN - 400.1435.52 / 400143552
ZIMMERMANN - 400.1435.53 / 400143553

item specifications

Component: Braking System
Quantity Unit: Set
WVA Number: 21664
Fitting Position: Front Axle
Wear Warning Contact: prepared for wear warning indicator
Thickness [mm]: 20
Width [mm]: 151
Height 1 [mm]: 60
Height 2 [mm]: 66
Brake System: ATE
Test Mark: ECE R90 APPROVED

reference numbers - for comparison

ATE - 13.0460-7086.2 / 13046070862
ATE - 13.0470-7086.2 / 13047070862
BOSCH - 0 986 494 002 / 0986494002
BREMBO - P 50 023 / P50023
BREMBO - P 50 023 / P50023
ECORA - 4250238735571
FERODO - FDB1049
HELLA PAGID - 8DB 355 007-831 / 8DB355007831
JURID - 571877J
MERCEDES-BENZ - 002 420 4420 / 0024204420
MERCEDES-BENZ - 002 420 9620 / 0024209620
MERCEDES-BENZ - 004 420 0220 / 0044200220
MERCEDES-BENZ - 005 420 47 20 / 0054204720
MERCEDES-BENZ - A 002 420 4420 / A0024204420
MERCEDES-BENZ - A 002 420 4420 / A0024204420
MERCEDES-BENZ - A 002 420 9620 / A0024209620
MERCEDES-BENZ - A 002 420 9620 / A0024209620
MERCEDES-BENZ - A 004 420 0220 / A0044200220
MERCEDES-BENZ - A 004 420 0220 / A0044200220
MERCEDES-BENZ - A 005 420 4720 / A0054204720
MERCEDES-BENZ - A 005 420 4720 / A0054204720
RAICAM - RA.0633.0 / RA06330
TEXTAR - 2166404
TEXTAR - 2166481
TRW - GDB1205
TRW - GDB1205DTE
ZIMMERMANN - 21664.195.1 / 216641951
ZIMMERMANN - 21664.995.1 / 216649951
ZIMMERMANN - 21795

item specifications

Component: Braking System
Application: Lining Wear
Quantity Unit: Piece
Fitting Position: Front Axle
Fitting Position: Rear Axle

reference numbers - for comparison

ATE - 24819004012
ATE - 620401
BOSCH - 1 987 474 901 / 1987474901
BOSCH - 1 987 474 911 / 1987474911
BOSCH - 1 987 474 927 / 1987474927
BREMBO - A 00 256 / A00256
BREMBO - A 00 256 / A00256
BREMBO - A 00 276 / A00276
BREMBO - A 00 276 / A00276
BREMBO - A 00 349 / A00349
BREMBO - A 00 349 / A00349
BREMBO - A 00 350 / A00350
BREMBO - A 00 350 / A00350
Caripar - GBK 847 / GBK847
DELPHI - LZ0002
DELPHI - LZ0120
FERODO - FWI206
FERODO - FWI226
FERODO - FWI226/1 / FWI2261
FERODO - FWI226/4 / FWI2264
FERODO - FWI227
FTE - BZ1001W
FTE - BZ1034W
FTE - BZ1034W-SET / BZ1034WSET
FTE - BZ1035W
HELLA - 8DK 355 250-141 / 8DK355250141
HELLA - 8DK 355 250-151 / 8DK355250151
HELLA - 8DK 355 251-981 / 8DK355251981
HELLA - 8DK 355 251-991 / 8DK355251991
HELLA PAGID - 8DK 355 250-141 / 8DK355250141
HELLA PAGID - 8DK 355 250-151 / 8DK355250151
HELLA PAGID - 8DK 355 251-981 / 8DK355251981
HELLA PAGID - 8DK 355 251-991 / 8DK355251991
JURID - 581304
JURID - 581304J
JURID - 581306
JURID - 581332
JURID - 581332J
JURID - 581333
JURID - 581333J
JURID - 581383
MERCEDES-BENZ - 000 540 02 17 / 0005400217
MERCEDES-BENZ - 123 540 00 17 / 1235400017
MERCEDES-BENZ - 126 540 20 17 / 1265402017
MERCEDES-BENZ - 140 540 12 17 / 1405401217
MERCEDES-BENZ - A 000 540 02 17 / A0005400217
MERCEDES-BENZ - A 000 540 02 17 / A0005400217
MERCEDES-BENZ - A 123 540 00 17 / A1235400017
MERCEDES-BENZ - A 123 540 00 17 / A1235400017
MERCEDES-BENZ - A 126 540 20 17 / A1265402017
MERCEDES-BENZ - A 126 540 20 17 / A1265402017
MERCEDES-BENZ - A 140 540 12 17 / A1405401217
MERCEDES-BENZ - A 140 540 12 17 / A1405401217
PAGID - P8011
PAGID - P8011
PAGID - P8012
PAGID - P8012
PAGID - P8610
PAGID - P8610
PAGID - P8611
PAGID - P8611
TEXTAR - 96990 0135 0 1 / 96990013501
TEXTAR - 96990 0213 0 1 / 96990021301
TEXTAR - 98013500
TEXTAR - 98021300
TEXTAR - 98021301
TEXTAR - 98021302
TRW - GIC105
TRW - GIC120
TRW - GIC122
TRW - GIC165
febi bilstein - 01498
febi bilstein - 03902
febi bilstein - 07616
