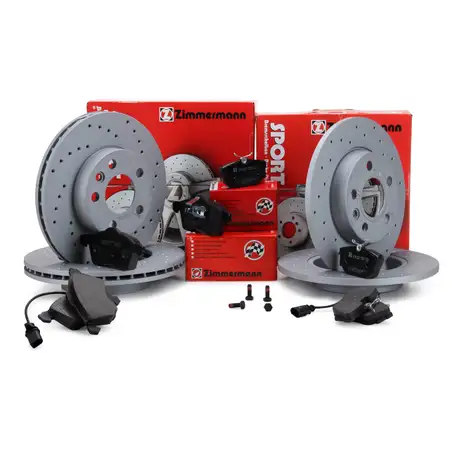

Zimmermann SPORT brake discs + Pads + Wako for VW Transporter T4 (inches) Front + Rear

Zimmermann SPORT brake discs + Pads + Wako for VW Transporter T4 (inches) Front + Rear

Item No.: PKT062W649
Manufacturer: ZIMMERMANN
part number: 600.3212.52, 21885.195.1, 600.3213.52, 23224.165.2

Items included:

2x Brake Disc Piece - ZIMMERMANN 600.3212.52
1x Brake Pad Set, disc brake Set - ZIMMERMANN 21885.195.1
2x Brake Disc Piece - ZIMMERMANN 600.3213.52
1x Brake Pad Set, disc brake Set - ZIMMERMANN 23224.165.2

item specifications

Component: Braking System
Quantity Unit: Piece
Brake Disc Type: internally vented
Brake Disc Type: Perforated
Fitting Position: Front Axle
Outer Diameter [mm]: 280
Hole Arrangement/Number: 6/5
Surface: Coated
Version: Sport
Bolt Hole Circle Ø [mm]: 112
Height [mm]: 56
Brake Disc Thickness [mm]: 24
Minimum thickness [mm]: 20
Weight [kg]: 6,7
Centering Diameter [mm]: 68
Rim Hole Number: 5
Test Mark: KBA 60872

reference numbers - for comparison

ATE - 24012401281
ATE - 24032401281
ATE - 424128
AUDI - 701615301F
AUDI - 7D0615301A
AUDI - 7D0615301C
BLUE PRINT - ADV184361
BOSCH - 0986478846
BOSCH - 0986479B50
BOSCH - BD746
BREMBO - 09713110
BREMBO - 09713111
BREMBO - 09713114
BREMBO - 9713114
CHAMPION - 562080CH
DELPHI - BG3417
DELPHI - BG3417C
ECORA - 4250238750475
EUROREPAR - 1618874080
EUROREPAR - 1667858680
EUROREPAR - 1686341480
EUROREPAR - 1690935380
FERODO - DDF1010
FERODO - DDF10101
FERODO - DDF1010C
FERODO - DDF1010C1
FTE - 9072097
FTE - 9082137
FTE - BS4732
FTE - BS4732B
FTE - BS7037
HELLA - 355105581
HELLA - 355105591
HELLA - 355105592
HELLA - 355124771
HELLA - 355127331
HELLA - 8DD355105581
HELLA - 8DD355105591
HELLA - 8DD355105592
HELLA - 8DD355124771
HELLA - 8DD355127331
HELLA PAGID - 355105581
HELLA PAGID - 355105591
HELLA PAGID - 355105592
HELLA PAGID - 355124771
HELLA PAGID - 355127331
HELLA PAGID - 8DD355105581
HELLA PAGID - 8DD355105591
HELLA PAGID - 8DD355105592
HELLA PAGID - 8DD355124771
HELLA PAGID - 8DD355127331
JP Group - 1163111500
JURID - 562080J
JURID - 562080JC
JURID - 562080JC1
METZGER - 6110093
MEYLE - 1155210035
MEYLE - 1155210035PD
MEYLE - 1155211038PD
OPTIMAL - BS5510
OPTIMAL - BS5510HC
PAGID - 53958
PAGID - 53958NHC
PAGID - 53958PRO
PAGID - T1107N53958N00
PAGID - T1107N53958N00
SEAT - 701615301F
SEAT - 7D0615301A
SEAT - 7D0615301C
SEBRO - 7093
SKODA - 701615301F
SKODA - 7D0615301A
SKODA - 7D0615301C
TEXTAR - 2163501083800
TEXTAR - 2188302083800
TEXTAR - 2317602083800
TEXTAR - 4019722474484
TEXTAR - 92083800
TEXTAR - 92083803
TEXTAR - 92083805
TEXTAR - 98200083801
TOPRAN - 107691
TRW - DF2809
TRW - DF2809S
VAICO - V1080041
VAICO - V1080041
VALEO - 186314
VALEO - 186682
VALEO - 496125
VALEO - 672612
VOLKSWAGEN - 701615301F
VOLKSWAGEN - 7D0615301A
VOLKSWAGEN - 7D0615301C
ZIMMERMANN - 600.3212.52 / 600321252
ZIMMERMANN - 600321200
ZIMMERMANN - 600321220
ZIMMERMANN - 600321270
ZIMMERMANN - 600321272
ZIMMERMANN - 600321275
febi bilstein - 14040

item specifications

Component: Braking System
Quantity Unit: Set
WVA Number: 21885
Fitting Position: Front Axle
Wear Warning Contact: incl. wear warning contact
Supplementary Article/Supplementary Info: Photo corresponds to scope of supply
Thickness [mm]: 20
Width [mm]: 156
Height [mm]: 68
Brake System: ATE
Test Mark: ECE R90 APPROVED
Number of wear indicators [per axle]: 1

reference numbers - for comparison

ATE - 13.0460-7124.2 / 13046071242
BOSCH - 0 986 424 537 / 0986424537
BREMBO - P 85 049 / P85049
BREMBO - P 85 049 / P85049
ECORA - 4250238736318
FERODO - FVR1518
HELLA PAGID - 8DB 355 008-931 / 8DB355008931
JURID - 573106J
RAICAM - RA.0669.1 / RA06691
TEXTAR - 2188501
TRW - GDB1391
VAG - 7D0 698 151 D / 7D0698151D
VAG - 7D0 698 151 F / 7D0698151F
ZIMMERMANN - 21883
ZIMMERMANN - 21885
ZIMMERMANN - 21885.195.1 / 218851951
ZIMMERMANN - 23163

item specifications

Component: Braking System
Quantity Unit: Piece
Brake Disc Type: solid
Brake Disc Type: Perforated
Fitting Position: Rear Axle
Outer Diameter [mm]: 280
Hole Arrangement/Number: 6/5
Surface: Coated
Version: Sport
Bolt Hole Circle Ø [mm]: 112
Height [mm]: 40
Brake Disc Thickness [mm]: 12
Minimum thickness [mm]: 10
Weight [kg]: 4,90
Centering Diameter [mm]: 68
Rim Hole Number: 5
Test Mark: ECE R90 APPROVED

reference numbers - for comparison

ATE - 24.0112-0138.1 / 24011201381
BOSCH - 0 986 478 871 / 0986478871
BREMBO - 08.7288.11 / 08728811
ECORA - 4250238753117
FERODO - DDF1012C
FERODO - DDF1012C-1 / DDF1012C1
HELLA PAGID - 8DD 355 105-611 / 8DD355105611
JURID - 562081JC
RAICAM - RD00894
TEXTAR - 92083903
TRW - DF4047
VAG - 701 615 601 / 701615601
VAG - 701 615 601 A / 701615601A
VAG - 7D0 615 601 / 7D0615601
VAG - 7D0 615 601 B / 7D0615601B
VOLKSWAGEN - 7D0 615 601 B / 7D0615601B
ZIMMERMANN - 600.3213.20 / 600321320
ZIMMERMANN - 600.3213.52 / 600321352

item specifications

Component: Braking System
Quantity Unit: Set
WVA Number: 23224
Fitting Position: Rear Axle
Wear Warning Contact: incl. wear warning contact
Supplementary Article/Supplementary Info: Photo corresponds to scope of supply
Supplementary Article/Supplementary Info 2: with bolts/screws
Thickness [mm]: 16
Width [mm]: 95
Height [mm]: 51
Brake System: LUCAS-GIRLING
Test Mark: ECE R90 APPROVED
Number of wear indicators [per axle]: 1

reference numbers - for comparison

ATE - 13.0460-2874.2 / 13046028742
BOSCH - 0 986 494 619 / 0986494619
BREMBO - P 85 046 / P85046
BREMBO - P 85 046 / P85046
ECORA - 4250238737520
FERODO - FDB1482
HELLA PAGID - 8DB 355 018-591 / 8DB355018591
JURID - 573049J
RAICAM - RA.0793.2 / RA07932
TEXTAR - 2322416
TRW - GDB1369
VAG - 7D0 698 451 G / 7D0698451G
VAG - 7D0 698 451 J / 7D0698451J
ZIMMERMANN - 23224.165.2 / 232241652
ZIMMERMANN - 23224.165.3 / 232241653
ZIMMERMANN - 23446
