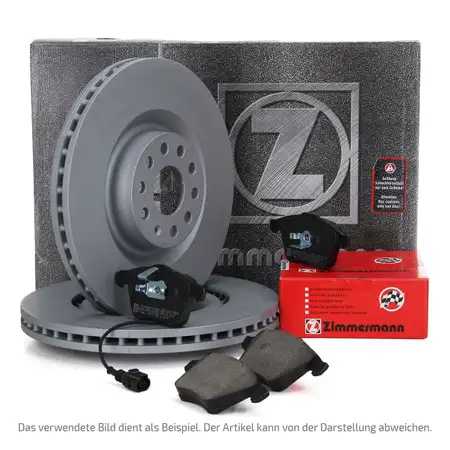

ZIMMERMANN Brake Discs + Pads + Wako for VW Transporter T4 15-inch 1LU (front)

Item No.: PKT062W646

ZIMMERMANN Brake Discs + Pads + Wako for VW Transporter T4 15-inch 1LU (front)

Item No.: PKT062W646
ZIMMERMANN
Items included:
  • 2x Brake Disc Piece - ZIMMERMANN
  • 1x Brake Pad Set, disc brake Set - ZIMMERMANN

Free lightning shipping in DE from 90€
Prioritized ordering possible
Questions about the item?
E-Mail-Icon
E-Mail

Brake Disc
item specifications
  • Bolt Hole Circle Ø [mm]: 112
  • Outer Diameter [mm]: 280
  • Surface: Coated
  • Component: Braking System
  • Brake Disc Type: vented
  • Fitting Position: Front Axle
  • Test Mark: ECE R90 APPROVED
  • Centering Diameter [mm]: 68
  • Quantity Unit: Piece
  • Rim Hole Number: 5
  • Hole Arrangement/Number: 6/5
  • Minimum thickness [mm]: 20
  • Brake Disc Thickness [mm]: 24
  • Weight [kg]: 6,7
  • Height [mm]: 55
reference numbers - for comparison
  • ATE - 24.0124-0128.1 / 24012401281
  • BOSCH - 0 986 478 846 / 0986478846
  • BREMBO - 09.7131.14 / 09713114
  • ECORA - 4250238762539
  • FERODO - DDF1010C-1 / DDF1010C1
  • HELLA - 8DD 355 105-591 / 8DD355105591
  • JURID - 562080J
  • TEXTAR - 92083805
  • TRW - DF2809
  • VAG - 701 615 301 F / 701615301F
  • VAG - 7D0 615 301 A / 7D0615301A
  • VAG - 7D0 615 301 C / 7D0615301C
  • ZIMMERMANN - 4250238762539
  • ZIMMERMANN - 600.3212.00 / 600321200
  • ZIMMERMANN - 600.3212.20 / 600321220
  • ZIMMERMANN - 600.3212.50 / 600321250
  • ZIMMERMANN - 600.3212.52 / 600321252
Brake Pad Set, disc brake
item specifications
  • Component: Braking System
  • Width [mm]: 156
  • Fitting Position: Front Axle
  • Number of wear indicators [per axle]: 1
  • Test Mark: ECE R90 APPROVED
  • WVA Number: 21885
  • Quantity Unit: Set
  • Supplementary Article/Supplementary Info: with retaining spring
  • Supplementary Article/Supplementary Info: Photo corresponds to scope of supply
  • Supplementary Article/Supplementary Info 2: with anti-squeak plate
  • Thickness [mm]: 20
  • Height [mm]: 68
  • Brake System: ATE
  • Wear Warning Contact: incl. wear warning contact
reference numbers - for comparison
  • ATE - 13.0460-7124.2 / 13046071242
  • BOSCH - 0 986 424 537 / 0986424537
  • BREMBO - P 85 049 / P85049
  • BREMBO - P 85 049 / P85049
  • ECORA - 4250238736318
  • FERODO - FVR1518
  • HELLA - 8DB 355 008-931 / 8DB355008931
  • JURID - 573106J
  • RAICAM - RA.0669.1 / RA06691
  • TEXTAR - 2188501
  • TRW - GDB1391
  • VAG - 7D0 698 151 D / 7D0698151D
  • VAG - 7D0 698 151 F / 7D0698151F
  • ZIMMERMANN - 21883
  • ZIMMERMANN - 21885
  • ZIMMERMANN - 21885.195.1 / 218851951
  • ZIMMERMANN - 23163
  • ZIMMERMANN - 4250238736318
