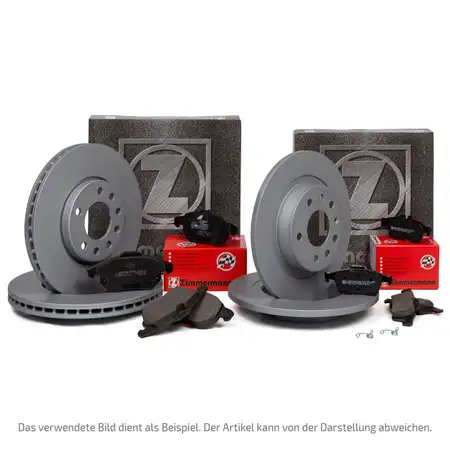

ZIMMERMANN Brake Discs + Pads for VOLVO 850, C70, S70, V70 (1 set: front + rear)

ZIMMERMANN Brake Discs + Pads for VOLVO 850, C70, S70, V70 (1 set: front + rear)

ZIMMERMANN Brake Discs + Pads for VOLVO 850, C70, S70, V70 (1 set: front + rear)

ZIMMERMANN Brake Discs + Pads for VOLVO 850, C70, S70, V70 (1 set: front + rear)

ZIMMERMANN Brake Discs + Pads for VOLVO 850, C70, S70, V70 (1 set: front + rear)

ZIMMERMANN Brake Discs + Pads for VOLVO 850, C70, S70, V70 (1 set: front + rear)

ZIMMERMANN Brake Discs + Pads for VOLVO 850, C70, S70, V70 (1 set: front + rear)

ZIMMERMANN Brake Discs + Pads for VOLVO 850, C70, S70, V70 (1 set: front + rear)

ZIMMERMANN Brake Discs + Pads for VOLVO 850, C70, S70, V70 (1 set: front + rear)

ZIMMERMANN Brake Discs + Pads for VOLVO 850, C70, S70, V70 (1 set: front + rear)

ZIMMERMANN

Item No.: PKT062W637
Manufacturer: ZIMMERMANN
part number: 610.1195.20, 21273.195.1, 610.1197.20, 20755.155.1

Items included:

2x Brake Disc Piece - ZIMMERMANN
1x Brake Pad Set, disc brake Set - ZIMMERMANN
2x Brake Disc Piece - ZIMMERMANN
1x Brake Pad Set, disc brake Set - ZIMMERMANN

item specifications

Bolt Hole Circle Ø [mm]: 108
Outer Diameter [mm]: 280
Surface: Coated
Component: Braking System
Brake Disc Type: internally vented
Fitting Position: Front Axle
Test Mark: ECE R90 APPROVED
Centering Diameter [mm]: 68
Quantity Unit: Piece
Rim Hole Number: 5
Hole Arrangement/Number: 10/5
Minimum thickness [mm]: 23
Brake Disc Thickness [mm]: 26
Weight [kg]: 6,4
Height [mm]: 50

reference numbers - for comparison

ATE - 24.0126-0102.1 / 24012601021
BOSCH - 0 986 478 603 / 0986478603
BREMBO - 09.5568.21 / 09556821
FERODO - DDF605C
HELLA PAGID - 8DD 355 103-681 / 8DD355103681
JURID - 561866JC
RAICAM - RD00943
TEXTAR - 92066703
TRW - DF2671
VOLVO - 271 788 / 271788
VOLVO - 271 788 2 / 2717882
VOLVO - 271 788.0 / 2717880
VOLVO - 31 262 092 / 31262092
VOLVO - 914 075 9 / 9140759
VOLVO - 914 075 93 / 91407593
ZIMMERMANN - 4250238719939
ZIMMERMANN - 610.1195.20 / 610119520
ZIMMERMANN - 610.1195.52 / 610119552

item specifications

Component: Braking System
Width [mm]: 156
Fitting Position: Front Axle
Test Mark: ECE R90 APPROVED
WVA Number: 21273
Quantity Unit: Set
Supplementary Article/Supplementary Info: with retaining spring
Supplementary Article/Supplementary Info: Photo corresponds to scope of supply
Supplementary Article/Supplementary Info 2: with anti-squeak plate
Thickness [mm]: 20
Height [mm]: 59
Brake System: ATE
Wear Warning Contact: prepared for wear warning indicator

reference numbers - for comparison

ATE - 13.0460-7053.2 / 13046070532
ATE - 13.0470-7053.2 / 13047070532
BOSCH - 0 986 461 752 / 0986461752
BREMBO - P 86 013 / P86013
BREMBO - P 86 013 / P86013
FERODO - FDB1285
HELLA PAGID - 8DB 355 007-721 / 8DB355007721
JURID - 571457J
TEXTAR - 2127304
TRW - GDB1159
VOLVO - 271587
VOLVO - 2715878
VOLVO - 272343
VOLVO - 2723435
VOLVO - 30648383
VOLVO - 30793799
VOLVO - 30793802
VOLVO - 9485267
VOLVO - 9485593
ZIMMERMANN - 21273
ZIMMERMANN - 21273.195.1 / 212731951
ZIMMERMANN - 21274
ZIMMERMANN - 4250238734154
ZIMMERMANN - D783-7651 / D7837651
ZIMMERMANN - D783-7651 / D7837651

item specifications

Bolt Hole Circle Ø [mm]: 108
Outer Diameter [mm]: 295
Surface: Coated
Component: Braking System
Brake Disc Type: solid
Fitting Position: Rear Axle
Test Mark: ECE R90 APPROVED
Centering Diameter [mm]: 68
Quantity Unit: Piece
Rim Hole Number: 5
Hole Arrangement/Number: 7/5
Minimum thickness [mm]: 8,4
Brake Disc Thickness [mm]: 10
Weight [kg]: 5
Height [mm]: 72

reference numbers - for comparison

ATE - 24.0110-0214.1 / 24011002141
BOSCH - 0 986 478 628 / 0986478628
BREMBO - 08.5569.21 / 08556921
FERODO - DDF552C
HELLA PAGID - 8DD 355 103-701 / 8DD355103701
JURID - 561867JC
RAICAM - RD00944
TEXTAR - 92066803
TRW - DF2660
VOLVO - 271 794 / 271794
VOLVO - 271 794.0 / 2717940
VOLVO - 31 262 099 / 31262099
ZIMMERMANN - 4250238719946
ZIMMERMANN - 610.1197.20 / 610119720
ZIMMERMANN - 610.1197.52 / 610119752

item specifications

Component: Braking System
Width [mm]: 62
Fitting Position: Rear Axle
Test Mark: ECE R90 APPROVED
WVA Number: 20755
Quantity Unit: Set
Supplementary Article/Supplementary Info: Photo corresponds to scope of supply
Supplementary Article/Supplementary Info 2: with anti-squeak plate
Thickness [mm]: 16
Height [mm]: 56
Brake System: ATE

reference numbers - for comparison

Name:

OTTO ZIMMERMANN GMBH

Website:

www.otto-zimmermann.de

E-Mail:

info@otto-zimmermann.de

Phone:

0049(0)7261 94514-0

Street, House no:

Am Leitzelbach 8

ZIP / City:

74889 Sinsheim - Duehren

Country:

Germany
