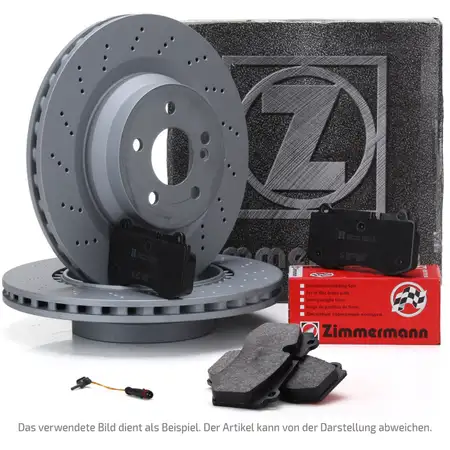

ZIMMERMANN Brake Discs + Pads + Wako for PORSCHE 997 3.6 Carrera / 4 345 hp (rear)

ZIMMERMANN Brake Discs + Pads + Wako for PORSCHE 997 3.6 Carrera / 4 345 hp (rear)

ZIMMERMANN CARIPAR

Item No.: PKT472W702
Manufacturer: ZIMMERMANN, CARIPAR
part number: 460.1562.20, 460.1563.20, 24454.170.1, GBK 748

Items included:
  • 1x Brake Disc Piece - ZIMMERMANN
  • 1x Brake Disc Piece - ZIMMERMANN
  • 1x Brake Pad Set, disc brake Set - ZIMMERMANN
  • 2x Warning Contact, brake pad wear Piece - CARIPAR

Free lightning shipping in DE from 90€
Prioritized ordering possible
Questions about the item?
Chat
Email-Icon
E-Mail
Trusted Badge Rating
item specifications
  • Bolt Hole Circle Ø [mm]: 130
  • Outer Diameter [mm]: 330
  • Surface: Coated
  • Component: Braking System
  • Brake Disc Type: internally vented
  • Brake Disc Type: Perforated
  • Fitting Position: Rear Axle Left
  • Test Mark: ECE R90 APPROVED
  • Centering Diameter [mm]: 98
  • Quantity Unit: Piece
  • Rim Hole Number: 5
  • Hole Arrangement/Number: 10/5
  • Minimum thickness [mm]: 26
  • Brake Disc Thickness [mm]: 28
  • Weight [kg]: 9,1
  • Height [mm]: 75
reference numbers - for comparison
  • ATE - 24.0128-0197.1 / 24012801971
  • BOSCH - 0 986 479 581 / 0986479581
  • BREMBO - 09.C878.11 / 09C87811
  • BREMBO - 59.E114.58L / 59E11458L
  • FERODO - DDF2131LC-1 / DDF2131LC1
  • HELLA PAGID - 8DD 355 135-051 / 8DD355135051
  • JURID - 562587JC-1 / 562587JC1
  • PORSCHE - 991 352 403 02 / 99135240302
  • PORSCHE - 991 352 403 02 / 99135240302
  • PORSCHE - 996 352 405 00 / 99635240500
  • PORSCHE - 996 352 405 00 / 99635240500
  • PORSCHE - 996 352 405 01 / 99635240501
  • PORSCHE - 996 352 405 01 / 99635240501
  • PORSCHE - 996 352 405 02 / 99635240502
  • PORSCHE - 996 352 405 02 / 99635240502
  • PORSCHE - 996 352 405 03 / 99635240503
  • PORSCHE - 996 352 405 03 / 99635240503
  • SHW Performance - PRL31124
  • TEXTAR - 92218905
  • ZIMMERMANN - 4250238719731
  • ZIMMERMANN - 460.1562.20 / 460156220
  • ZIMMERMANN - 460.1562.54 / 460156254
item specifications
  • Bolt Hole Circle Ø [mm]: 130
  • Outer Diameter [mm]: 330
  • Surface: Coated
  • Component: Braking System
  • Brake Disc Type: internally vented
  • Brake Disc Type: Perforated
  • Fitting Position: Rear Axle Right
  • Test Mark: ECE R90 APPROVED
  • Centering Diameter [mm]: 98
  • Quantity Unit: Piece
  • Rim Hole Number: 2
  • Hole Arrangement/Number: 10/5
  • Minimum thickness [mm]: 26
  • Brake Disc Thickness [mm]: 28
  • Weight [kg]: 9,1
  • Height [mm]: 75
reference numbers - for comparison
  • ATE - 24.0128-0196.1 / 24012801961
  • BOSCH - 0 986 479 582 / 0986479582
  • BREMBO - 09.C878.11 / 09C87811
  • BREMBO - 59.E114.58R / 59E11458R
  • FERODO - DDF2131RC-1 / DDF2131RC1
  • HELLA PAGID - 8DD 355 135-061 / 8DD355135061
  • JURID - 562590JC-1 / 562590JC1
  • PORSCHE - 991 352 404 02 / 99135240402
  • PORSCHE - 991 352 404 02 / 99135240402
  • PORSCHE - 996 352 406 00 / 99635240600
  • PORSCHE - 996 352 406 00 / 99635240600
  • PORSCHE - 996 352 406 01 / 99635240601
  • PORSCHE - 996 352 406 01 / 99635240601
  • PORSCHE - 996 352 406 02 / 99635240602
  • PORSCHE - 996 352 406 02 / 99635240602
  • PORSCHE - 996 352 406 03 / 99635240603
  • PORSCHE - 996 352 406 03 / 99635240603
  • SHW Performance - PRR31224
  • TEXTAR - 92219005
  • ZIMMERMANN - 4250238719748
  • ZIMMERMANN - 460.1563.20 / 460156320
  • ZIMMERMANN - 460.1563.55 / 460156355
item specifications
  • Component: Braking System
  • Width [mm]: 130
  • Fitting Position: Rear Axle
  • Test Mark: ECE R90 APPROVED
  • WVA Number: 24454
  • Quantity Unit: Set
  • Supplementary Article/Supplementary Info: Photo corresponds to scope of supply
  • Thickness [mm]: 17
  • Height [mm]: 76
  • Brake System: BREMBO
  • Wear Warning Contact: prepared for wear warning indicator
reference numbers - for comparison
  • ATE - 13.0460-4876.2 / 13046048762
  • BREMBO - P 65 022 / P65022
  • BREMBO - P 65 022 / P65022
  • FERODO - FDB4211
  • HELLA PAGID - 8DB 355 016-051 / 8DB355016051
  • PORSCHE - 997 352 947 01 / 99735294701
  • PORSCHE - 997 352 947 02 / 99735294702
  • PORSCHE - 997 352 947 90 / 99735294790
  • PORSCHE - 997 352 947 92 / 99735294792
  • PORSCHE - 997 352 947 93 / 99735294793
  • PORSCHE - 997 352 949 00 / 99735294900
  • PORSCHE - 997 352 949 01 / 99735294901
  • PORSCHE - 997 352 949 03 / 99735294903
  • PORSCHE - 997 352 949 04 / 99735294904
  • PORSCHE - 997 352 949 05 / 99735294905
  • TEXTAR - 2445403
  • TRW - GDB1792
  • ZIMMERMANN - 24454
  • ZIMMERMANN - 24454.170.1 / 244541701
  • ZIMMERMANN - 4250238776208
item specifications
  • Component: Braking System
  • Fitting Position: Rear Axle
  • Application: Lining Wear
  • Warning Contact Length [mm]: 490
  • Quantity Unit: Piece
reference numbers - for comparison
  • ATE - 24.8190-0023.2 / 24819000232
  • ATE - 24819000232
  • ATE - 620023
  • BOSCH - 1987473065
  • BOSCH - 1987474560
  • BREMBO - A 00 415 / A00415
  • BREMBO - A 00 415 / A00415
  • BREMBO - A00415
  • BREMBO - A00415
  • Caripar - GBK 748 / GBK748
  • FERODO - FWI383
  • FERODO - FWI383
  • HELLA - 355251571
  • HELLA - 8DK355251571
  • HELLA PAGID - 355251571
  • HELLA PAGID - 8DK 355 251-571 / 8DK355251571
  • HELLA PAGID - 8DK355251571
  • JURID - 581470
  • JURID - 581470
  • METZGER - 1190216
  • OPTIMAL - WKT60070K
  • PAGID - P8567
  • PAGID - P8567
  • PAGID - P8567N
  • PAGID - P8567N
  • PORSCHE - 997 612 754 00 / 99761275400
  • PORSCHE - 997 612 754 02 / 99761275402
  • PORSCHE - 99761275400
  • QUICK BRAKE - WS0347A
  • TEXTAR - 98041700
  • TEXTAR - 98041710
  • TRW - GIC319
  • febi bilstein - 33995
Name:
OTTO ZIMMERMANN GMBH
Website:
www.otto-zimmermann.de
E-Mail:
info@otto-zimmermann.de
Phone:
0049(0)7261 94514-0
Street, House no:
Am Leitzelbach 8
ZIP / City:
74889 Sinsheim - Duehren
Country:
Germany
manufacturer model type power capacity constr. date kba limitations
