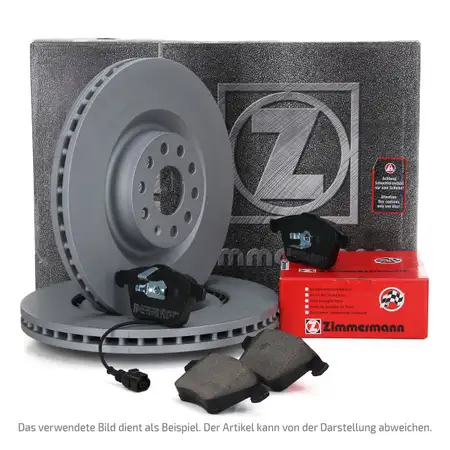

ZIMMERMANN Brake Discs + Brake Pads + Wako for VW Passat B5 PR-1LT (Front)

ZIMMERMANN Brake Discs + Brake Pads + Wako for VW Passat B5 PR-1LT (Front)

Item No.: PKT462W554
Manufacturer: ZIMMERMANN
part number: 100.3325.20, 23018.200.1

Items included:

2x Brake Disc Piece - ZIMMERMANN 100.3325.20
1x Brake Pad Set, disc brake Set - ZIMMERMANN 23018.200.1

item specifications

Component: Braking System
Quantity Unit: Piece
Brake Disc Type: Externally Vented
Fitting Position: Front Axle
Outer Diameter [mm]: 312
Hole Arrangement/Number: 10/5
Surface: Coated
Bolt Hole Circle Ø [mm]: 112
Height [mm]: 47
Brake Disc Thickness [mm]: 25
Minimum thickness [mm]: 23
Machining: High-carbon
Weight [kg]: 8,9
Centering Diameter [mm]: 68
Rim Hole Number: 5
Test Mark: ECE R90 APPROVED

reference numbers - for comparison

ATE - 24.0125-0172.1 / 24012501721
ATE - 24.0325-0172.1 / 24032501721
BOSCH - 0 986 479 A30 / 0986479A30
BREMBO - 09.8690.11 / 09869011
BREMBO - 09.8690.1X / 0986901X
BREMBO - 09.8690.75 / 09869075
ECORA - 4250238756545
FERODO - DDF1707C
HELLA PAGID - 8DD 355 127-571 / 8DD355127571
JURID - 562383J
JURID - 562383JC
JURID - 562383JC-1 / 562383JC1
RAICAM - RD00900
RAICAM - RD01539
TEXTAR - 92106105
TRW - DF4262S
VAG - 4B0 615 301 C / 4B0615301C
ZIMMERMANN - 100.3325.20 / 100332520
ZIMMERMANN - 100.3325.52 / 100332552
ZIMMERMANN - 100.3325.53 / 100332553

item specifications

Component: Braking System
Quantity Unit: Set
WVA Number: 23018
Fitting Position: Front Axle
Wear Warning Contact: incl. wear warning contact
Supplementary Article/Supplementary Info: Photo corresponds to scope of supply
Thickness [mm]: 20
Width [mm]: 156
Height [mm]: 74
Brake System: ATE
Test Mark: ECE R90 APPROVED
Number of wear indicators [per axle]: 2

reference numbers - for comparison

ATE - 13.0470-7110.2 / 13047071102
ATE - 13046071102
ATE - 20676
ATE - 23018
ATE - 23019
BOSCH - 0 986 424 482 / 0986424482
BOSCH - 0 986 424 706 / 0986424706
BOSCH - 0 986 494 050 / 0986494050
BREMBO - P 85 037 / P85037
BREMBO - P 85 037 / P85037
BREMBO - P 85 085 / P85085
BREMBO - P 85 085 / P85085
BREMBO - P 85 085X / P85085X
BREMBO - P 85 085X / P85085X
BREMBO - P85037N
BREMBO - P85037N
BREMBO - P85085N
BREMBO - P85085N
DELPHI - LP1123
DELPHI - LP1613
DELPHI - LP1672
DELPHI - LP1687
ECORA - 4250238736769
FERODO - 21938 20,40 41 5 / 219382040415
FERODO - FDB1323
FERODO - FDB1668
FERODO - FDB1717
FERODO - FDS1323
FERODO - FQT1323
FERODO - FQT1717
FERODO - FSL1323
FERODO - FSL1717
FERODO - TAR1323
FTE - BL1617A4
HELLA - 8DB 355 008-411 / 8DB355008411
HELLA - 8DB 355 010-731 / 8DB355010731
HELLA PAGID - 8DB 355 008-411 / 8DB355008411
HELLA PAGID - 8DB 355 010-731 / 8DB355010731
JURID - 571982D
JURID - 571982J
JURID - 573037J
PAGID - T1149
PAGID - T1149
PAGID - T1388
PAGID - T1388
SEAT - 4B0 698 151 N / 4B0698151N
SEAT - 8E0 698 151 K / 8E0698151K
SKODA - 4B0 698 151 N / 4B0698151N
SKODA - 8E0 698 151 J / 8E0698151J
TEXTAR - 21938 204 0 5 / 2193820405
TEXTAR - 2193801
TEXTAR - 23018 204 0 5 / 2301820405
TEXTAR - 2301802
TEXTAR - 2301805
TRW - GDB1307
TRW - GDB1488
VAG - 4B0 698 151 / 4B0698151
VAG - 4B0 698 151 A / 4B0698151A
VAG - 4B0 698 151 AB / 4B0698151AB
VAG - 4B0 698 151 AF / 4B0698151AF
VAG - 4B0 698 151 B / 4B0698151B
VAG - 4B0 698 151 E / 4B0698151E
VAG - 4B0 698 151 H / 4B0698151H
VAG - 4B0 698 151 J / 4B0698151J
VAG - 4B0 698 151 K / 4B0698151K
VAG - 4B0 698 151 M / 4B0698151M
VAG - 4B0 698 151 N / 4B0698151N
VAG - 4F0 698 151 / 4F0698151
VAG - 8E0 698 151 F / 8E0698151F
VAG - 8E0 698 151 K / 8E0698151K
VAG - 8E0 698 151 T / 8E0698151T
VALEO - 301483
VALEO - 301751
VALEO - 598401
VALEO - 598483
VALEO - 598751
VALEO - 601103
VOLKSWAGEN - 8E0 698 151 F / 8E0698151F
VOLKSWAGEN - 8E0 698 151 K / 8E0698151K
VOLKSWAGEN - 8E0 698 151 T / 8E0698151T
ZIMMERMANN - 21938.200.1 / 219382001
ZIMMERMANN - 23018.200.1 / 230182001
febi bilstein - 16060
febi bilstein - 16447
febi bilstein - 16448
